TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A 22-18 AWG Brass Tin Plated 170364-1

Free Delivery in India | Lowest Global Shipping Charges

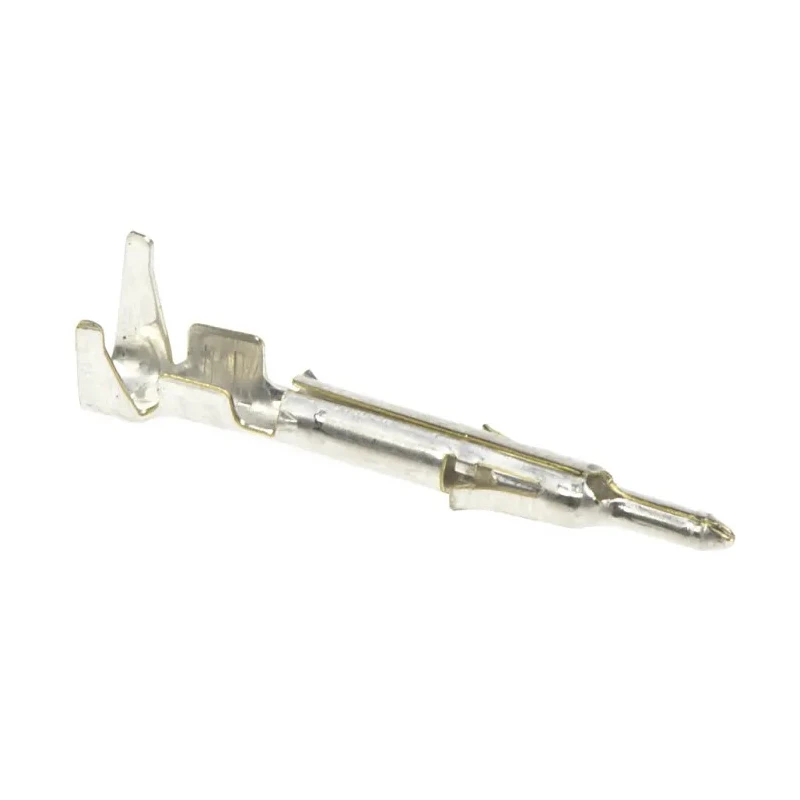

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A 22-18 AWG Brass Tin Plated 170364-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A 22-18 AWG Brass Tin Plated 170364-1
Brand: TE Connectivity
SKU: 124453
Price: 0.14 USD
Availability: InStock



Category Electronic Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	7A
Model	170364-1
Gender	Male
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-20°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.9mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10mΩ

Key Features

Constructed from brass with tin plating for enhanced conductivity and corrosion resistance.
Compatible with Mini-Universal MATE-N-LOK Connector Housing for wire-to-wire connections.
Suitable for crimp termination ensuring secure mechanical and electrical connection.
Supports voltage up to 600 Vac/dc and operating temperature range from -20°C to 105°C.
Low contact resistance of 10 milliohms to maintain efficient performance.
Male contact gender designed for reliable mating and connection integrity.
Applicable in consumer electronics, commercial HVAC, power supplies, lighting, medical, and security applications.
UL E28476 and CSA certified ensuring compliance with safety standards.

Product Description

TE Connectivity 170364-1 Mini-Universal MATE-N-LOK Series Male Crimp Terminal provides a reliable and high-performance connection solution for wire sizes from 22 AWG to 18 AWG. This crimp terminal is fabricated from brass with a pre-tin plated finish, offering excellent electrical conductivity and resistance to corrosion. It is designed specifically for use with Mini-Universal MATE-N-LOK Connector Housings to create secure wire-to-wire connections in various electronic and electrical systems.

The terminal supports a current rating of 7 amperes and can withstand operating voltages up to 600 Vac/dc. It performs reliably across a temperature range of -20°C up to 105°C, suitable for demanding industrial and commercial environments. Its low maximum contact resistance of 10 milliohms ensures optimal electrical performance with minimal power loss.

Its male contact design facilitates secure mating within connector assemblies, enhancing connection stability and durability. The crimp termination type allows for a dependable mechanical connection suited for automated assembly or manual processing.

This product is ideal for industrial, commercial HVAC, consumer electronics, power supply, lighting, medical, and security sectors, meeting rigorous safety and performance standards including UL E28476 and CSA certifications. It ensures consistent and safe electrical connections in critical applications.

TE Connectivity’s Mini-Universal MATE-N-LOK connectors are a trusted choice for professionals requiring robust electrical connectors with proven reliability. This terminal is part of the extensive Mini-Universal MATE-N-LOK series which provides various contacts and crimp tooling enabling versatile and scalable connectivity solutions.

Constructed from brass with tin plating for durability and conductivity. Rated for 7A current and compatible with 22-18 AWG wire sizes. Designed for crimp termination in wire-to-wire connectors. Operating temperature range from -20°C to 105°C.

Minimum and maximum wire sizes: 0.3mm² (22AWG) to 0.9mm² (18AWG). UL and CSA certified for industrial safety compliance. Explore more Electronic Connectors and related components on EnvMart for all your industrial and commercial projects.
