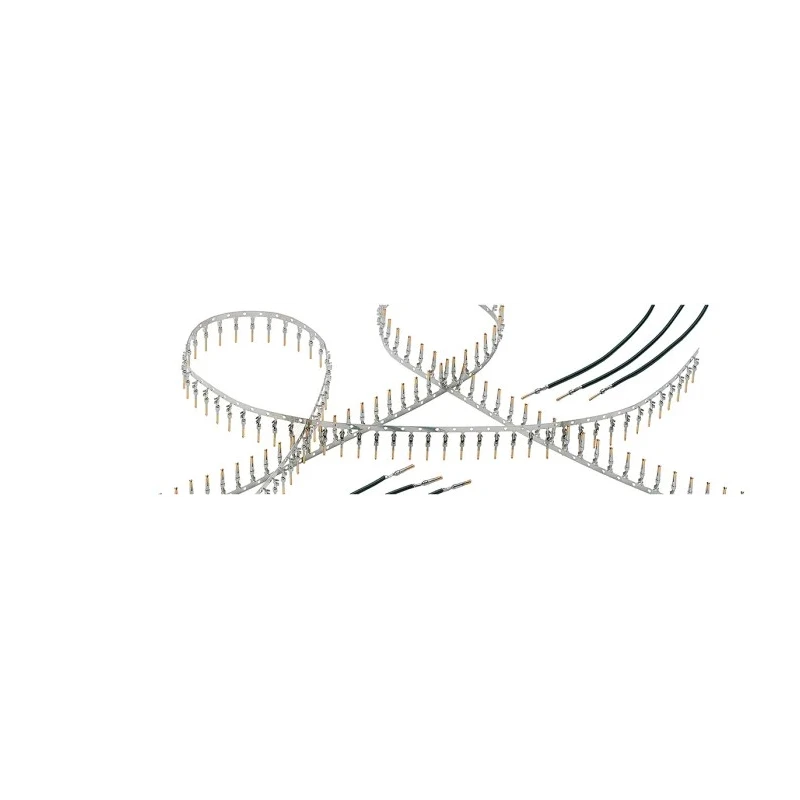

Harting D-Sub High Density Series Female Crimp D-Sub Connector Contact Palladium over Nickel Pin 24 AWG 09560008275
Specifications
| Country of Origin | China |
|---|---|
| Brand | Harting |
| Current | 6.5A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | D-Sub High Density |
| Termination Type | Crimp |
| Contact Type | Pin |
| Contact Plating | Palladium over Nickel |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 0.22mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Made from copper alloy with palladium over nickel plating for excellent conductivity and corrosion resistance.
- Designed for high density D-Sub connectors providing 70% more contact capacity compared to standard connectors.
- Supports wire sizes from AWG 26 to AWG 24, equivalent to 0.14 to 0.22 mm².
- Crimp termination type ensures secure and reliable electrical connections.
- Maximum contact resistance is 20 milliohms, enabling efficient signal transmission.
- Rated for a maximum current of 6.5 amperes for robust electrical performance.
- Stamped female pin contacts designed for assembly in electronic and industrial applications.
- Manufactured in China with new product condition standards.
Product Description
Harting 09560008275 is a female crimp contact designed for the D-Sub High Density Series connectors. It features a copper alloy construction with palladium over nickel plating on the pins to ensure superior electrical conductivity and durability. This high density connector contact enhances the contact capacity by 70% compared to standard subminiature D connectors.
The component accommodates wire sizes ranging from AWG 26 (0.14 mm²) to AWG 24 (0.22 mm²), catering to a variety of wiring requirements. The crimp termination type provides a secure and stable connection, essential for industrial and electronic applications that demand reliable signal and power transfer.
Specifically engineered for a maximum current of 6.5A and a maximum contact resistance of 20 milliohms, this contact ensures high performance and minimal electrical losses. Its stamped female pin design fits into a tinned metal shell, ideal for high density connector assemblies.
Typical applications include electronic equipment manufacturing, industrial machinery, control panels, and computer hardware, where compact and high-density solutions are critical. The connector’s construction and plating materials offer resistance to corrosion and extended operational life even in demanding environments.
Made from copper alloy with palladium over nickel plating for high conductivity. Supports 6.5A current with a contact resistance of 20 milliohms. Fits wire sizes AWG 26 to AWG 24 (0.14 - 0.22 mm²). Crimp termination ensures secure electrical connections.
Designed for high density D-Sub connector series with increased contact capacity. Stamped female pin contacts for reliable assembly. Manufactured in China meeting new product condition standards.
Explore the full range of Harting D-Sub contacts and connectors to find compatible and complementary components for your electronics assembly needs through EnvMart’s comprehensive catalog.
Explore more products in our Electronic Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 6.5 amperes, ensuring robust electrical performance.
The maximum contact resistance is 20 milliohms, which enables efficient signal transmission.
It supports wire sizes ranging from AWG 26 (0.14 mm²) to AWG 24 (0.22 mm²).
This model features a crimp termination type, providing secure and reliable electrical connections.
It is made from copper alloy with palladium over nickel plating for excellent conductivity and corrosion resistance.
This contact is designed for the D-Sub High Density Series, which offers increased contact capacity.
This model features a female pin contact design, suitable for assembly in various applications.
It is manufactured in China, adhering to new product condition standards.
Typical applications include electronic equipment manufacturing, industrial machinery, control panels, and computer hardware.
It provides 70% more contact capacity compared to standard subminiature D connectors, making it suitable for high-density applications.
The contact type is a stamped female pin, designed for reliable assembly in electronic and industrial applications.
The palladium over nickel plating enhances electrical conductivity and provides corrosion resistance, ensuring longevity in demanding environments.
