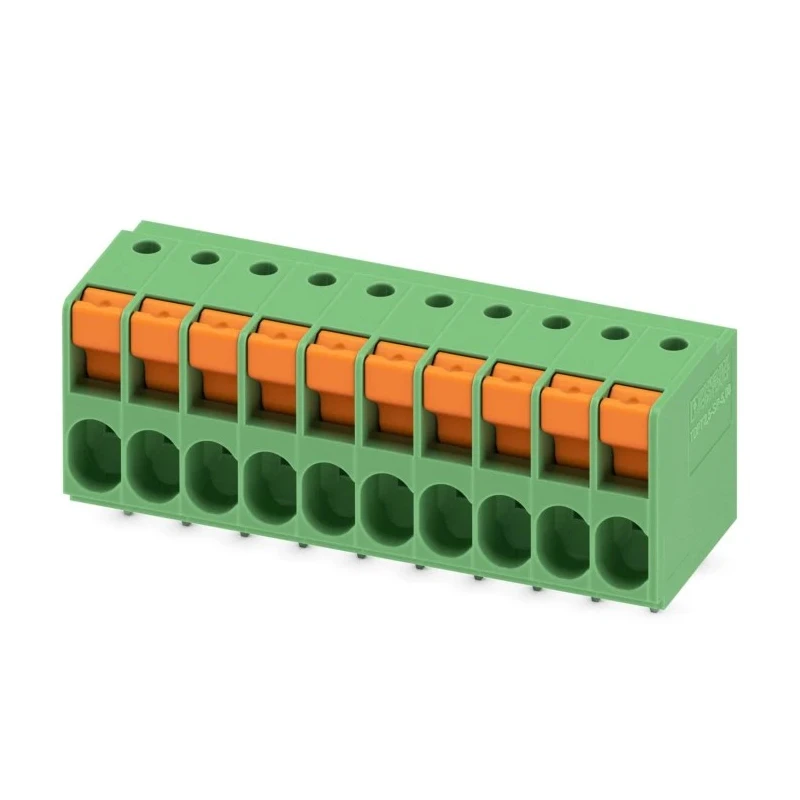

Phoenix Contact PCB Terminal Block TDPT 2.5/ 10-SP-5.08 Series, 10-Contact, 5.08 mm Pitch, Wave Soldering Mount, 400 1017511
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 32A |
| Length | 18mm |
| Model | 1017511 |
| Depth | 19mm |
| Width | 51.6mm |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | TDPT 2.5/ 10-SP-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | WEEE/RoHS-compliant |
| Number of Contacts | 10 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw |
| PCB Terminal block, nominal current | 32 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 10, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green |
Key Features
- Features a robust polyamide housing for durability.
- Designed for wave soldering mount, ensuring reliable PCB attachment.
- Supports wire sizes from 0.2 mm² to 4 mm², compatible with AWG 24 to 12.
- Straight orientation with green color for easy identification.
- Connection via screw method providing secure wire fixing.
- WEEE and RoHS compliant, ensuring environmental safety standards.
- Single row configuration suitable for versatile electronic applications.
Product Description
Phoenix Contact 1017511 PCB Terminal Block TDPT 2.5/ 10-SP-5.08 Series is designed for electronic assemblies requiring reliable and efficient wire connection solutions. This product features 10 contacts arranged in a single row with a 5.08 mm pitch, delivering nominal current capacity of 32 A and nominal voltage rating of 400 V.
The terminal block housing is manufactured from durable polyamide material which offers excellent mechanical stability and resistance to environmental factors. Its wave soldering mount type ensures sturdy and consistent PCB attachment suitable for automated manufacturing processes.
The device supports wire sizes ranging from a minimum of 0.2 mm² up to a maximum of 4 mm², accommodating AWG 24 to AWG 12 conductors, connected securely via a screw wire connection method. The straight orientation and green color coding assist in quick visual identification and ease of use in complex circuit layouts.
Designed for ease of installation and maintenance, the terminal block employs a push-in spring connection mechanism facilitating tool-free and time-saving wiring operations. This ensures a defined contact force and stable long-term electrical contact reliability.
This product complies with WEEE and RoHS directives, reinforcing its suitability for environmentally responsible manufacturing and use. Robust polyamide housing enhances durability and mechanical resistance. Wave soldering mount compatible with automated PCB assembly.
Supports conductor sizes from 0.2 mm² to 4 mm² (AWG 24 to 12). Push-in spring connection enables tool-free wire insertion. Color-coded actuation lever for clear and intuitive operation. Single row 10-contact configuration with 5.08 mm pitch.
Nominal current rating of 32 A and voltage rating of 400 V. WEEE and RoHS compliant, adhering to international environmental standards.
This terminal block is ideal for use in various industrial and electronic assembly applications including control cabinets, power distribution boards, and automation technology. Its design ensures reliable electrical connections within complex circuit layouts and supports efficient manufacturing workflows.
Browse our PCB Terminal Block category for a wide selection of Phoenix Contact products and other trusted brands designed to meet industrial quality standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a nominal current rating of 32 A and a voltage rating of 400 V.
The contacts in this model are arranged with a pitch of 5.08 mm.
It supports wire sizes ranging from 0.2 mm² to 4 mm², which corresponds to AWG 24 to AWG 12.
Wires are connected using a screw connection method, providing secure wire fixing.
This model is designed for wave soldering mount, suitable for automated PCB assembly.
The terminal block measures 51.6 mm in width, 19 mm in depth, and 18 mm in length.
The housing is made from durable polyamide material, which offers mechanical stability.
Yes, it is compliant with WEEE and RoHS directives, ensuring adherence to environmental safety standards.
This terminal block features 10 contacts arranged in a single row.
It is colored green, which assists in quick visual identification during installation and use.
It is suitable for various industrial and electronic assembly applications, including control cabinets and power distribution boards.
The terminal block has a straight orientation, facilitating easy installation.
