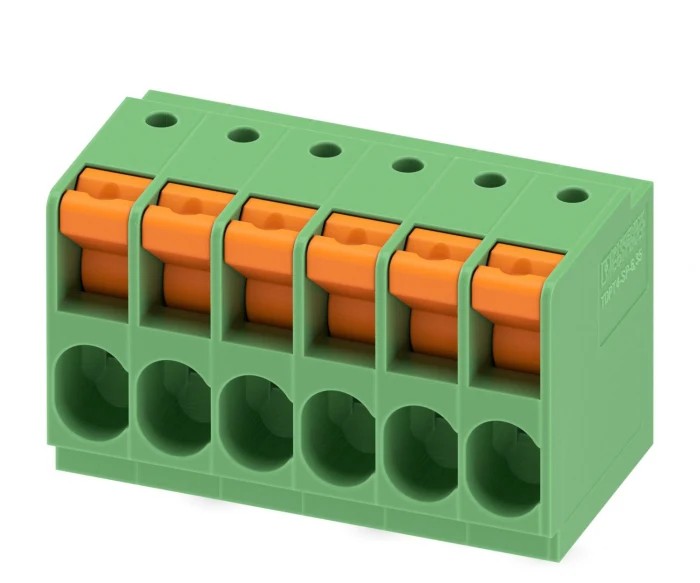

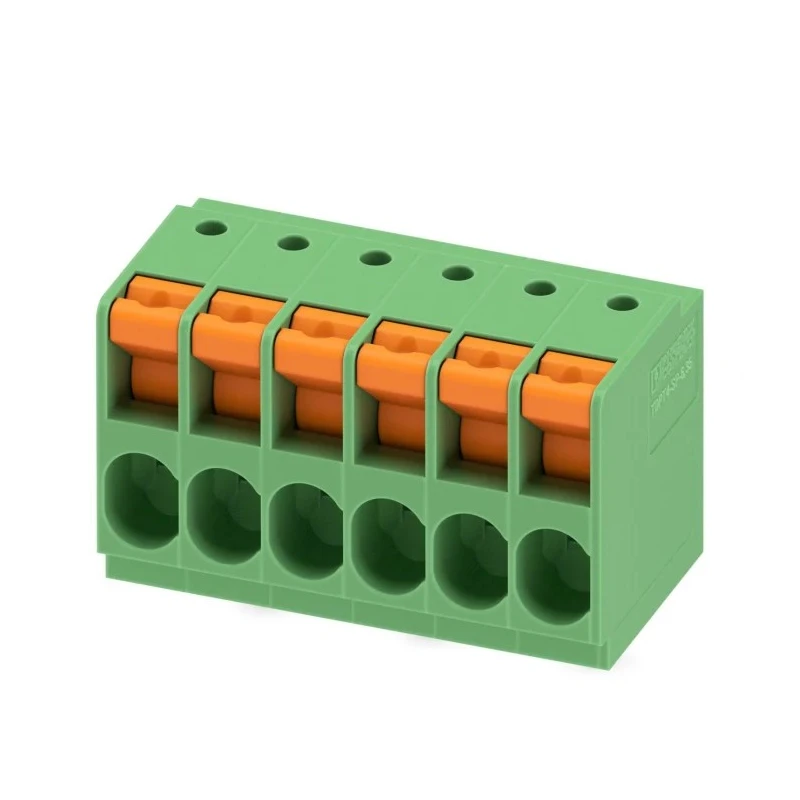

Phoenix Contact PCB Terminal Block TDPT 4/6-SP-6.35-ZB Series 6-Contact 6.35 mm Pitch Wave Soldering Mount 1017525
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1kV |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 41A |
| Length | 20.75mm |
| Model | 1017525 |
| Depth | 23.4mm |
| Width | 38.9mm |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | TDPT 4/ 6-SP-6.35-ZB |
| Number of Rows | 1 |
| Pitch | 6.35mm |
| Standards/Approvals | WEEE/RoHS-compliant |
| Number of Contacts | 6 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 10AWG |
| Wire Connection Method | Screw |
| PCB Terminal block, nominal current | 41 A, nom. voltage: 1000 V, pitch: 6.35 mm, number of positions: 6, connection method: Screw connection with tension sleeve,mounting:Wavesoldering, conductor/PCB connection direction: 0 °, color: green |
Key Features
- Supports nominal current up to 41 A suitable for high-power circuits.
- Constructed from polyamide housing material for durability and heat resistance.
- Accommodates wire sizes from 0.2 mm² to 6 mm² with screw connection method.
- Designed with straight orientation and green color coding for easy identification.
- Compact dimensions with 23.4 mm depth, 20.75 mm length, and 38.9 mm width.
- Meets WEEE and RoHS compliance standards ensuring environmental safety.
- Single row, 6-position terminal block optimized for PCB mounting.
Product Description
The Phoenix Contact 1017525 PCB Terminal Block from the TDPT 4/6-SP-6.35-ZB series is engineered for reliable electrical connectivity in industrial and electronic applications. Featuring a 6-contact configuration and a pitch of 6.35 mm, this terminal block supports a nominal current rating of 41 A and a nominal voltage of 1000 V, ensuring robust performance for demanding circuits.
The terminal block's housing is manufactured from high-quality polyamide material, providing excellent mechanical stability and resistance to environmental factors. It is designed for wave soldering mount with a single row layout, facilitating integration on printed circuit boards. The connection method uses screw connections with tension sleeves, accommodating wire sizes from 0.2 mm² to 6 mm² (24 AWG to 10 AWG), making wiring both secure and reliable.
The compact physical dimensions - 23.4 mm depth, 20.75 mm length, and 38.9 mm width - allow this component to fit into constrained spaces efficiently. Its straight orientation and green color enable intuitive installation and maintenance. Additionally, the product complies with RoHS and WEEE standards, meeting environmental and safety regulations.
Widely used across electronic manufacturing, industrial automation, power equipment, and HVAC systems, this terminal block ensures stable electrical contact while reducing assembly time with its screw connection technology.
Key features such as identical sizing for push-in spring connections enhance product versatility. The defined contact force mechanism ensures long-term contact stability, and the color-coded actuation lever simplifies usability for technicians.
Supports 41 A nominal current and 1000 V nominal voltage ratings. Polyamide housing ensures durability and compliance with safety standards. Wave soldering mount suitable for automated PCB assembly. Connection via screw terminals with tension sleeves for secure wiring.
Compact and efficient form factor with single-row 6-contact design. Environmentally compliant with RoHS and WEEE directives. Color-coded for ease of use during installation and maintenance.
This Phoenix Contact PCB Terminal Block is an essential component in electronic connectors, facilitating secure and efficient electrical connections. Browse the Electronics & Electricals category on EnvMart for compatible components and accessories from top manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a nominal current rating of 41 A, making it suitable for high-power circuits.
It can handle a nominal voltage of 1000 V, ensuring robust performance in demanding applications.
This model accommodates wire sizes from 0.2 mm² to 6 mm² (24 AWG to 10 AWG) using a screw connection method.
The terminal block has compact dimensions of 23.4 mm depth, 20.75 mm length, and 38.9 mm width.
It is designed for wave soldering mount, facilitating integration on printed circuit boards.
The housing is constructed from polyamide, providing durability and heat resistance.
This model features a 6-contact configuration, optimized for PCB mounting.
Yes, it meets RoHS and WEEE compliance standards, ensuring environmental safety.
The terminal block is designed with a straight orientation, which aids in installation and maintenance.
It uses screw connections with tension sleeves, ensuring secure and reliable wiring.
This terminal block is part of the TDPT 4/6-SP-6.35-ZB series, designed for reliable electrical connectivity.
It features green color coding for easy identification during installation and maintenance.
