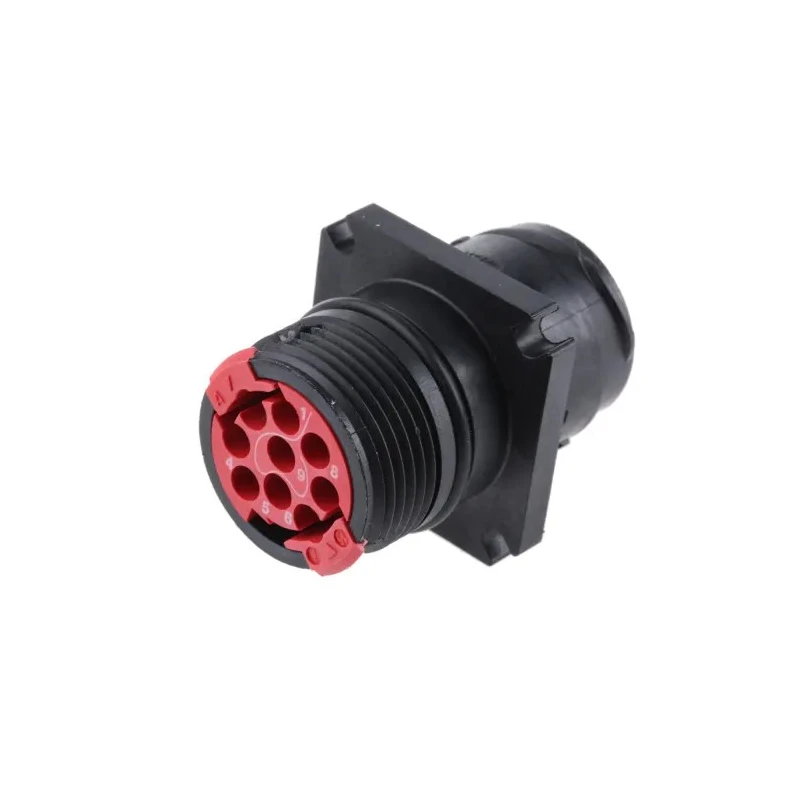

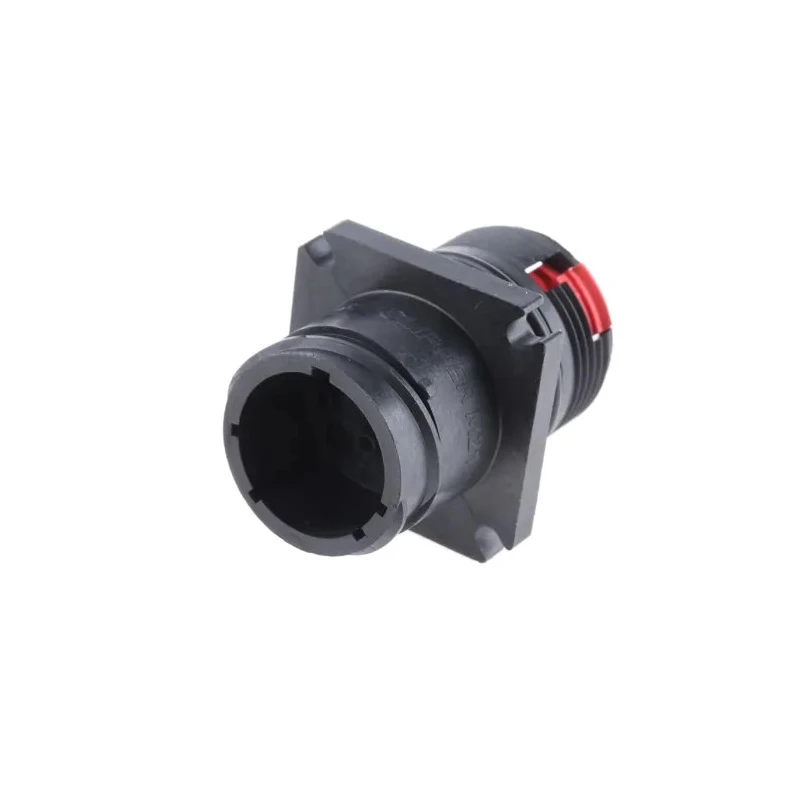

Souriau Sunbank by Eaton Industrial Circular Connector 9 Contacts Flange Plug Male IP68 Clipper Series CL1M2101
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1500V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 13A |
| Model | CL1M2101 |
| IP Rating | IP68 |
| Mount Type | Flange |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Clipper |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shell Size | 2 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Connector supports a maximum current of 13A.
- Rated for 1500V voltage with threaded mating type for secure connection.
- Constructed with thermoplastic housing and gold-over-nickel plated copper alloy contacts.
- Operational temperature range from -40°C to 125°C for harsh environments.

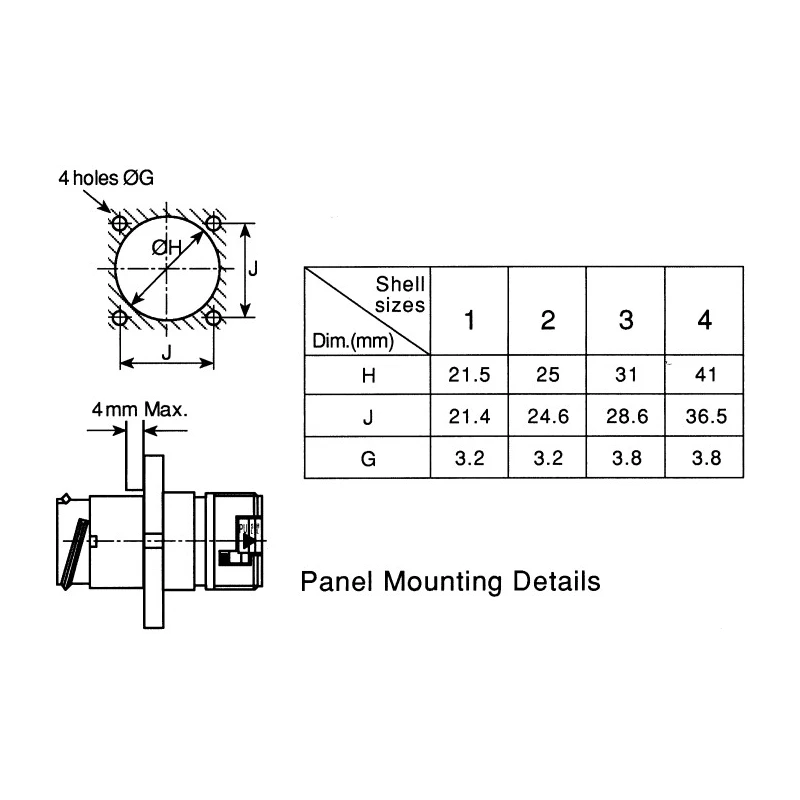

- Designed for crimp termination with panel mount capability up to 4mm thickness.
- Contacts are rear insert type, held by locking retention plate for easy assembly.
- Compatible with MIL-C-5015 connector sizes for mounting interchangeability.
- Connector is scoop-proof to prevent contact damage during blind mating.
Product Description
Souriau Sunbank by Eaton CL1M2101 industrial circular connector offers a reliable connection with 9 male contacts in a flange mount configuration. Rated IP68 for protection against dust and water ingress, this standard-sized connector operates at 1500V and supports a current up to 13A, making it suitable for demanding industrial applications.
The connector features a thermoplastic housing with gold-over-nickel plated copper alloy contacts to ensure durability and efficient conductivity. Operating temperature ranges from -40°C to 125°C allow usage in harsh environments including industrial, construction, and manufacturing settings.
The CL1M2101 is part of the Clipper Series, providing a retention plate system for easy insertion and extraction of crimp contacts without tooling. Its panel mount design accommodates up to 4mm thick panels with threaded mating for secure and scoop-proof connections that minimize contact damage even during blind mating.
Contacts and sealing gaskets are sold separately to allow flexible assembly configurations. The connector is compatible with MIL-C-5015 panel mount dimensions, ensuring interchangeability within existing systems.
Supports a maximum current of 13A for industrial power applications. Rated to 1500V with IP68 ingress protection for harsh environments. Durable thermoplastic housing with gold-over-nickel plated copper alloy contacts. Wide operating temperature range from -40°C to 125°C.
Flange mount type with scoop-proof thread mating to prevent damage. Retention plate system allows easy contact insertion and removal. Compatible with MIL-C-5015 connector sizes for mounting interchangeability. Part of the versatile Clipper Series for industrial circular connectors.
Sealing gaskets and contacts sold separately for customization.
This product is ideal for use in industrial, construction, manufacturing, and other heavy-duty electrical connector applications requiring reliable, durable, and field-serviceable solutions.
Explore further Industrial Circular Connectors and related components at EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum voltage of 1500V.
It supports a maximum current of 13A.
This connector has an IP68 rating, providing protection against dust and water ingress.
It features a thermoplastic housing and gold-over-nickel plated copper alloy contacts.
The operational temperature range is from -40°C to 125°C.
It is designed for crimp termination.
It supports flange mounting and can accommodate panels up to 4mm thick.
This model has 9 male contacts.
Yes, it is compatible with MIL-C-5015 connector sizes for mounting interchangeability.
It utilizes a threaded mating type for secure connection.
The contacts are oriented straight.
The scoop-proof design prevents contact damage during blind mating, enhancing reliability in connection.
