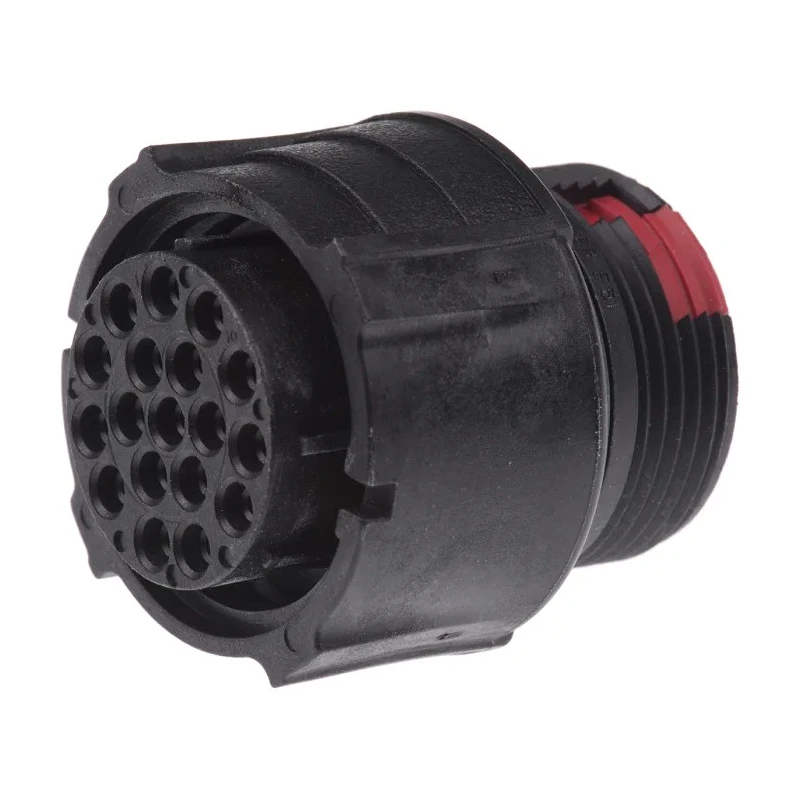

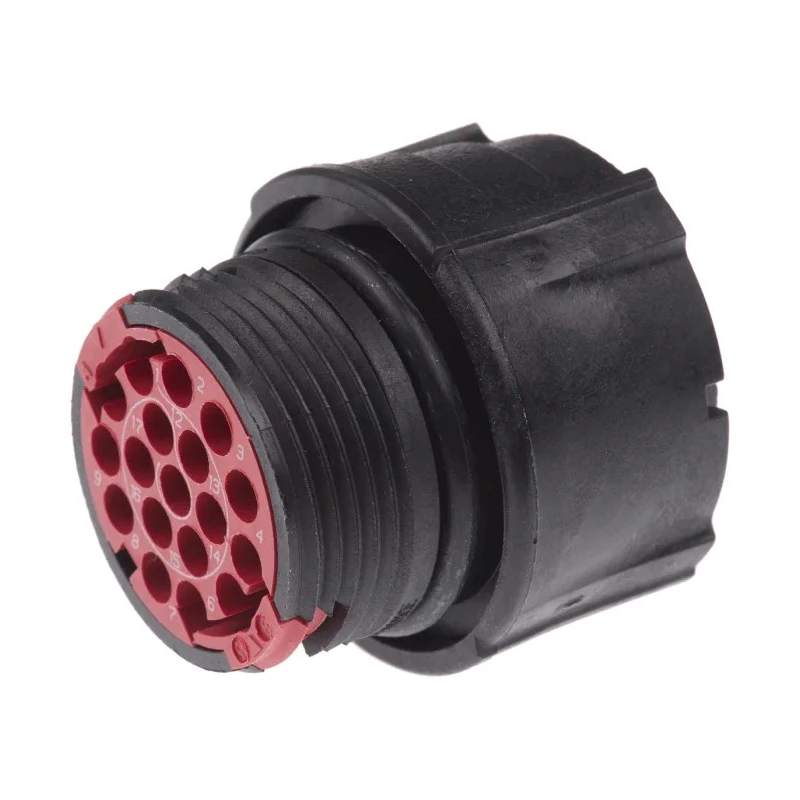

Souriau Sunbank by Eaton Circular Connector 18 Contacts Cable Socket Female IP67 Clipper CL1F3101
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1500V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 13A |
| Model | CL1F3101 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Clipper |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 18 |
| Contact Gender | Female |

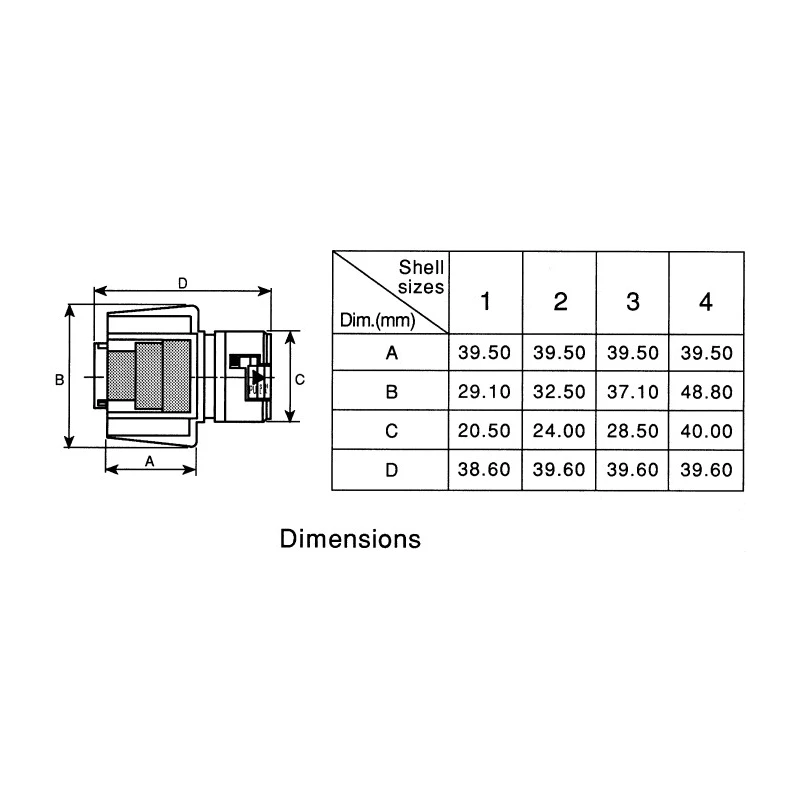

| Shell Size | 3 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- Features a thermoplastic housing with gold-plated copper alloy contacts for durability.
- Has a 13A current rating per contact and supports up to 1500V voltage.
- Provides crimp termination with a straight body orientation and threaded mating type.
- Operates reliably in temperatures from -40°C to 125°C, suitable for industrial environments.
- Offers IP67 ingress protection, ensuring dust and water resistance.
- Includes a retention plate system for easy insertion and extraction of contacts without tooling.
- Scoop-proof contacts prevent damage during blind mating operations.
- Shell size 3 with 180° screw coupling and audible safety latch for secure connections.
Product Description
Souriau Sunbank by Eaton CL1F3101 circular connector is an industrial-grade cable-mounted connector featuring 18 female socket contacts designed for reliable electrical connection in demanding environments. Rated for 13A current per contact and 1500V voltage, this connector ensures superior performance with thermoplastic housing and gold-plated copper alloy contacts.
This connector belongs to the Clipper series, known for its IP67 sealing, which offers excellent resistance against dust and water ingress. Its design includes a retention plate system allowing contact insertion and extraction without the need for tools, enhancing maintainability. The connector features scoop-proof contacts that prevent damage during mating, even in blind connection scenarios.
Equipped with a shell size 3 and a 180° screw coupling with a positive audible safety latch, the connector guarantees secure and reliable mechanical locking. It supports crimp termination and a straight body orientation with threaded mating, making it compatible with various industrial cable installations.
Operating temperature ranges from -40°C to 125°C ensure functionality in diverse industrial settings. The connector's design includes an adaptor with an electrical PG thread and a 1/2 turn bayonet coupling for fast connections to the system, offering flexibility and ease of integration.
Thermoplastic housing with gold over nickel plated copper alloy contacts. Retention plate system for tooling-free contact insertion and extraction. Threaded mating with 180° screw coupling and audible latch. High vibration resistance and durability of 250 mating cycles.
Contact resistance less than 10 Mohm for consistent electrical performance. Scoop-proof contacts to prevent damage during blind mating. IP67 rated for dust and water resistance suitable for harsh environments. Applications include factory automation, machine tools, and test instrumentation.
This product is manufactured in France and represents a high-quality solution for Industrial Circular Connector applications. Browse the Electronics Components category for more circular connectors and related industrial connection solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 13A per contact.
It supports up to 1500V voltage.
The connector has an IP67 rating, providing excellent dust and water resistance.
It operates reliably in temperatures ranging from -40°C to 125°C.
This model features 18 female socket contacts.
It uses crimp termination with a straight body orientation.
The housing is made of thermoplastic, and the contacts are gold-plated copper alloy.
It has a shell size of 3.
It features a threaded mating type with a 180° screw coupling and an audible safety latch.
Yes, it includes a retention plate system for easy insertion and extraction of contacts without tooling.
This product is manufactured in France.
It is suitable for applications including factory automation, machine tools, and test instrumentation.
