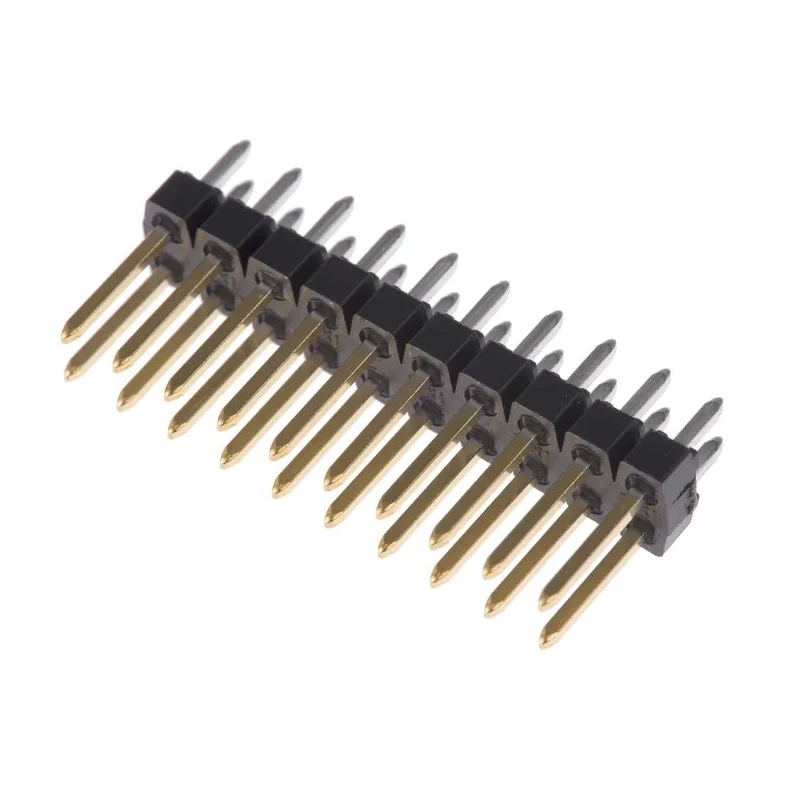

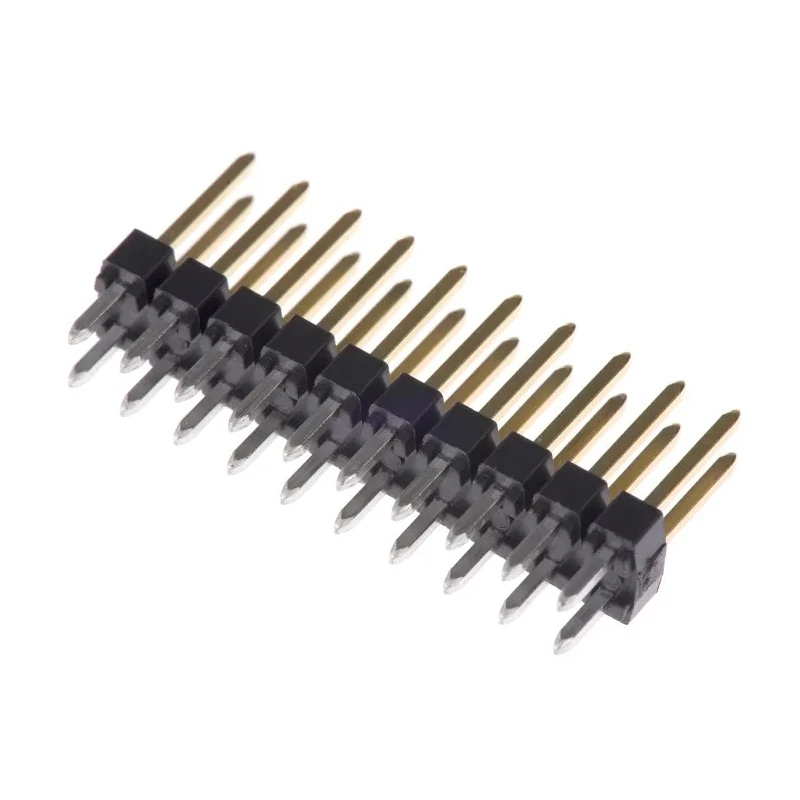

Molex C-Grid III Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Rows, Unshrouded 90131-0770
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Features 20 male contacts arranged in 2 straight rows for secure connections.
- 2.54 mm pitch spacing ensures compatibility with standard PCB layouts.
- Constructed with brass contacts plated in gold for enhanced conductivity and corrosion resistance.
- Housing made from durable polyester, ensuring robustness and thermal stability.
- Designed for through-hole soldering with 2.9 mm tail pin length and 6.75 mm mating pin length.
- Supports current rating up to 3A and voltage rating up to 350V.
- Operates reliably within a temperature range of -55°C to 125°C.
- Unshrouded design allowing easy insertion and removal of mating connectors.
Product Description
Molex 90131-0770 is part of the C-Grid III series of straight through hole pin headers featuring 20 contacts arranged in two rows with a 2.54 mm pitch. This pin header is designed for through-hole PCB mounting and offers robust mechanical stability once soldered onto the board.
The contacts are made of brass with gold plating, providing excellent electrical conductivity and resistance to corrosion, suitable for industrial and commercial applications. The housing is composed of polyester material, contributing to durability and thermal resistance for operating temperatures between -55°C and 125°C.
This connector system supports a current rating of 3A and voltage up to 350V, suitable for diverse applications in electronics including computer hardware, medical equipment, telecommunications devices, industrial machinery, and automotive electronics.
The unshrouded pin header design facilitates straightforward insertion and removal of mating connectors. Additionally, the breakaway design allows customization of pin counts to match specific design needs.
Typical use cases include board-to-board and wire-to-board connections, ensuring secure, reliable, and flexible interconnections for electronics assembly. Features 20 male contacts in 2 rows with 2.54 mm pitch. Brass contacts plated with gold for enhanced performance.
Polyester housing for strength and temperature tolerance. Designed for through-hole mount with solder termination. Supports 3A current and 350V voltage ratings. Operating temperature range from -55°C to 125°C. Unshrouded design for easy mating.
Breakaway pins for flexible configuration. Suitable for various industrial and commercial electronic applications. Reliable for board-to-board and wire-to-board uses. Explore more in our Electronics Components category to find compatible PCB headers and connectors from Molex and other top brands available at EnvMart.
Explore more products in our PCB Pin Header category.
