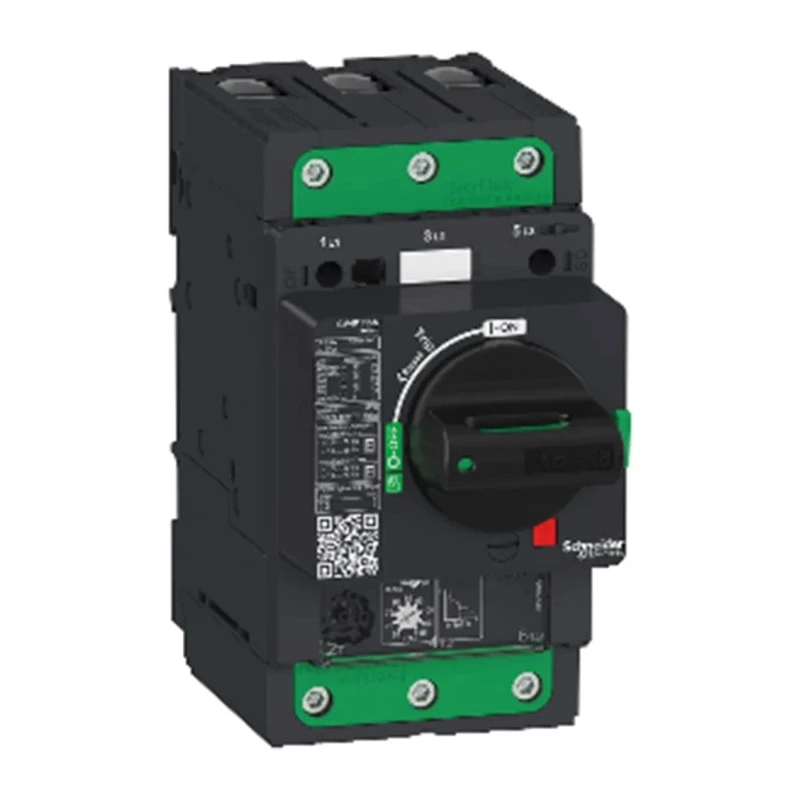

Schneider Electric TeSys GV Thermal Circuit Breaker 80A Current Rating 3-Pole Direct Mount GV4P80S
Specifications
| Country of Origin | Poland |
|---|---|
| Range | TeSys |
| Brand | Schneider Electric |
| Height | 116mm |
| Model | GV4P80S |
| Depth | 116mm |
| Width | 165mm |
| Mount Type | Direct |
| Current Rating | 80A |
| Series | TeSyS GV |
| Terminal type | Screw |
| Breaking Capacity | 100kA |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 690V ac |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Medium |
| b Magnetic GV4L | to be used with an overload relay or a drive |
| b Thermal magnetic GV4P | electronic protection with wide range setting, dual class (10 & 20) |
| b Multifunction motor protection GV4PEM | GV4P with adjustable advanced protections and possibility to have |
Key Features
- Provides thermal magnetic protection for 3-phase motors up to 37kW at 400V.
- Breaking capacity of 100kA at 400V ensures high fault interruption capability.
- Equipped with screw terminals and toggle switch reset actuator for reliable connection and operation.
- Adjustable thermal protection settings from 40-80A and dual tripping classes of 10 or 20 for flexible motor protection.
- Includes fixed pick-up additional protections like short time delay, phase unbalance, loss, and ground fault protection.
- Complies with multiple international standards including RoHS, CE, IEC, UL, CSA, CCC, EAC, Marine, and ATEX certifications.
- Compact dimensions of 165mm width, 116mm height, and 116mm depth allow for space-saving installation.
- Operates at a rated AC voltage of 690V suitable for industrial power systems.
Product Description
Schneider Electric GV4P80S is a high-performance TeSys GV series thermal circuit breaker designed for protection of three-phase motors rated at 80 amperes and 690 volts AC. This 3-pole direct mount breaker integrates thermal magnetic tripping mechanism, supporting motor power ranges from 22 to 37kW at 400V, making it suitable for industrial environments requiring reliable motor start-stop control and protection.
It features a breaking capacity of 100kA at 400V AC, specifically engineered to handle short circuits and overloads efficiently while maintaining operational safety. The GV4P80S utilizes screw terminal connections with Everlink BTR technology for secure wiring and a toggle switch-based reset actuator enabling fast manual reset post-tripping.
Thermal protection is fully adjustable through dials allowing setting currents from 40A to 80A, combined with selectable tripping classes 10 or 20, catering to different motor protection needs. Magnetic protection operates at 17 times the nominal current for instantaneous fault clearing. Additional fixed pick-up enhancements include short time delay protection at 13 times the rated current, phase unbalance and loss detection, as well as ground fault protection for comprehensive motor safeguarding.
Offers multi-standard certification including IEC, UL, CSA, CCC, EAC, Marine, and ATEX compliance to meet diverse regulatory requirements. RoHS and REACh compliant ensuring environmental sustainability and reduced hazardous substance use.
Internal provisions accommodate auxiliary contact blocks (OF, SD) and voltage trip units (MN, MX) for expanded control and signaling functionalities. Compact body with precise dimensions: 165mm width, 116mm height, and 116mm depth optimizing panel space.
This circuit breaker is ideally suited for industrial automation, manufacturing, HVAC systems, water treatment plants, and other commercial motor protection applications where robust thermal magnetic protection combined with multifunctional motor safeguards is essential.
Selecting the Schneider Electric GV4P80S guarantees efficient and safe operation of medium power three-phase motors with advanced protection features packaged in a reliable and certified device.
Explore more thermal breakers from Schneider Electric and other circuit protection devices on EnvMart for your industrial electrical needs.
Explore more products in our Circuit Breakers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this circuit breaker is 80A.
It has a breaking capacity of 100kA at 400V.
The rated AC voltage for the GV4P80S is 690V.
This model utilizes a thermal magnetic tripping mechanism.
The thermal protection can be adjusted through dials, allowing settings from 40A to 80A.
The dimensions are 165mm in width, 116mm in height, and 116mm in depth.
It provides thermal magnetic protection, short time delay, phase unbalance, loss detection, and ground fault protection.
This circuit breaker is designed for direct mounting.
It complies with multiple standards including RoHS, CE, IEC, UL, CSA, CCC, EAC, Marine, and ATEX.
It is equipped with a toggle switch reset actuator for manual resetting after tripping.
This circuit breaker has 3 poles.
It is suitable for industrial automation, manufacturing, HVAC systems, and water treatment plants.
