ETA Electronic Circuit Breaker REX12 REX12-T 2 Channels 1A 24V DC DIN Rail REX12-TA2-107-DC24V-1A/1A

Free Delivery in India | Lowest Global Shipping Charges

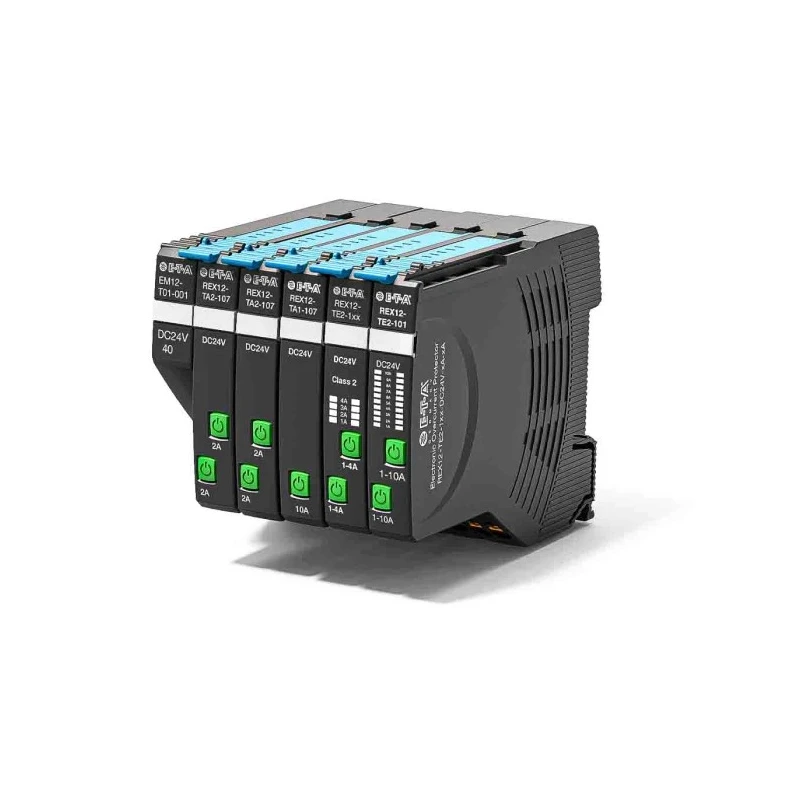

ETA Electronic Circuit Breaker REX12 REX12-T 2 Channels 1A 24V DC DIN Rail REX12-TA2-107-DC24V-1A/1A



Category Electronic Circuit Breaker Brand ETA Condition New

Specifications

Country of Origin	Germany
Voltage	24V dc
Range	REX12
Brand	ETA
Length	12.5mm
Model	REX12-TA2-107-DC24V-1A/1A
Depth	80mm
Width	12.5mm
Mount Type	DIN Rail
Current Rating	1A
Series	REX12-T
Terminal type	Push-in
Number Of Channels	2
Standards/Approvals	CE, RoHS, UL

Key Features

Features a compact 12.5 mm wide module design for space-saving installation.
Designed with push-in terminal technology for easy, tool-free wiring.
Includes a manual ON/OFF/reset momentary switch for simple operation control.
Equipped with integral fail-safe elements precisely adjusted to the current rating for reliable protection.
Supports single and double channel selective load protection using an electronic trip curve.
No additional accessories are required for component connection, ensuring flexibility.
Certified with CE, RoHS, and ULC standards for safety and quality assurance.
Ideal for industrial electrical automation, control panels, and machinery protection.

Product Description

ETA REX12-TA2-107-DC24V-1A/1A electronic circuit breaker is a compact, flexible, and all-in-one protection device designed for industrial electrical and automation applications. This 2-channel circuit breaker is rated for a current of 1 ampere and operates at 24 volts DC, featuring a DIN rail mount configuration suitable for streamlined panel assembly.

Constructed with a narrow 12.5 mm width module, it maximizes space efficiency within electrical enclosures while maintaining high protection capability through its integral fail-safe element matched precisely to the current rating.

Push-in terminals with orange press release buttons enable quick, tool-free wiring, which reduces installation time and maintenance effort.

The unit supports both single and double channel selective load protection using an electronic trip curve, enhancing load management and system safety without requiring additional accessories.

Compact 12.5 mm wide module width for dense installation. Push-in terminal technology for fast, safe wiring connections. Manual ON/OFF/reset switch for operational flexibility. Fail-safe element tuned precisely to 1A current rating.

Single and double channel electronic trip curve selective protection. Complies with CE, RoHS, and ULC safety standards. Produced in Germany ensuring premium quality manufacturing.

This product is well-suited for use in industrial automation, electrical distribution panels, manufacturing machinery protection, and control systems requiring reliable DC circuit protection.

ETA's REX12 series components facilitate versatile combinations including supply and potential extension modules, making it a highly adaptable choice for complex electrical installations.

Choose the ETA REX12-T Electronic Circuit Breaker for dependable DC overcurrent protection in your electrical assemblies. Explore more electronic circuit protection devices and accessories in the Electronics & Electricals category on EnvMart to complement your industrial setup.
