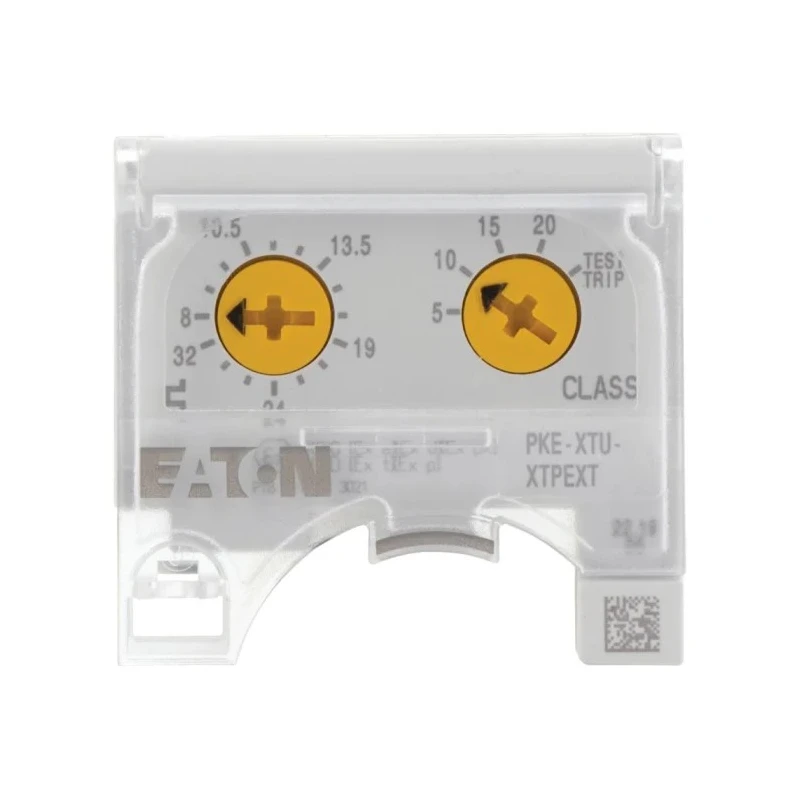

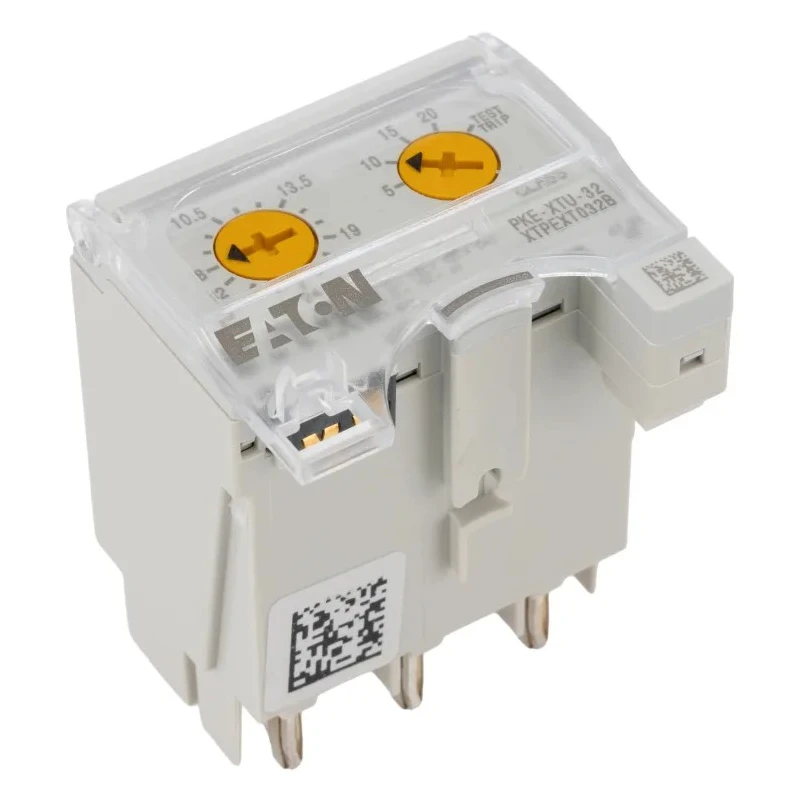

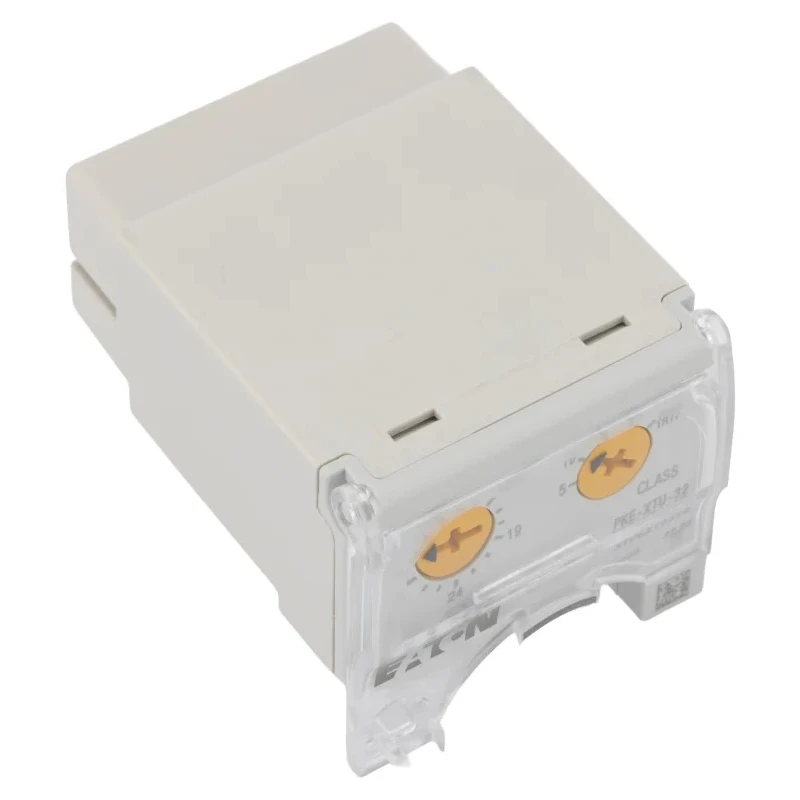

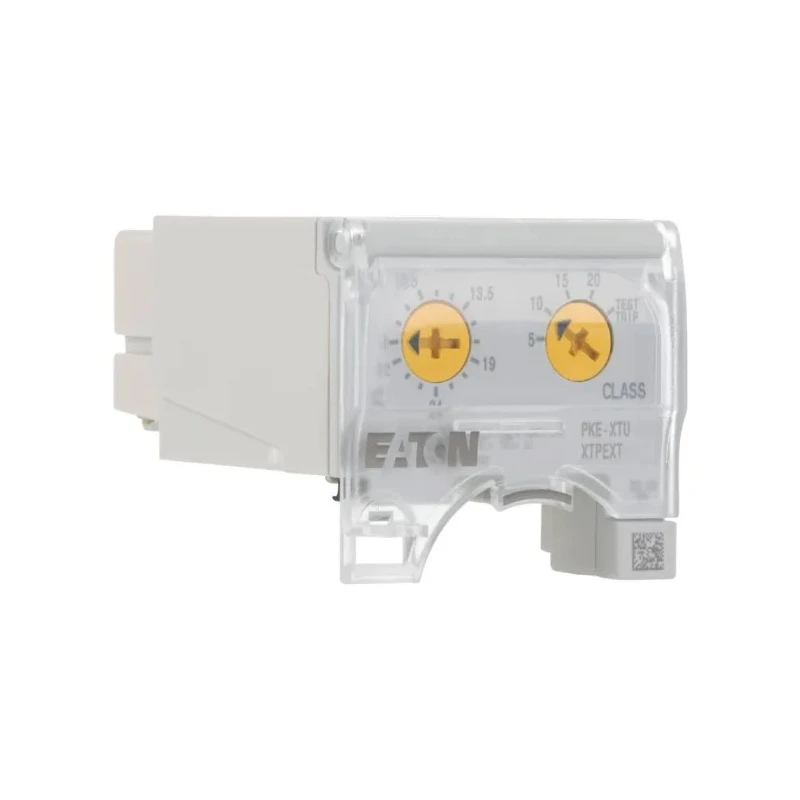

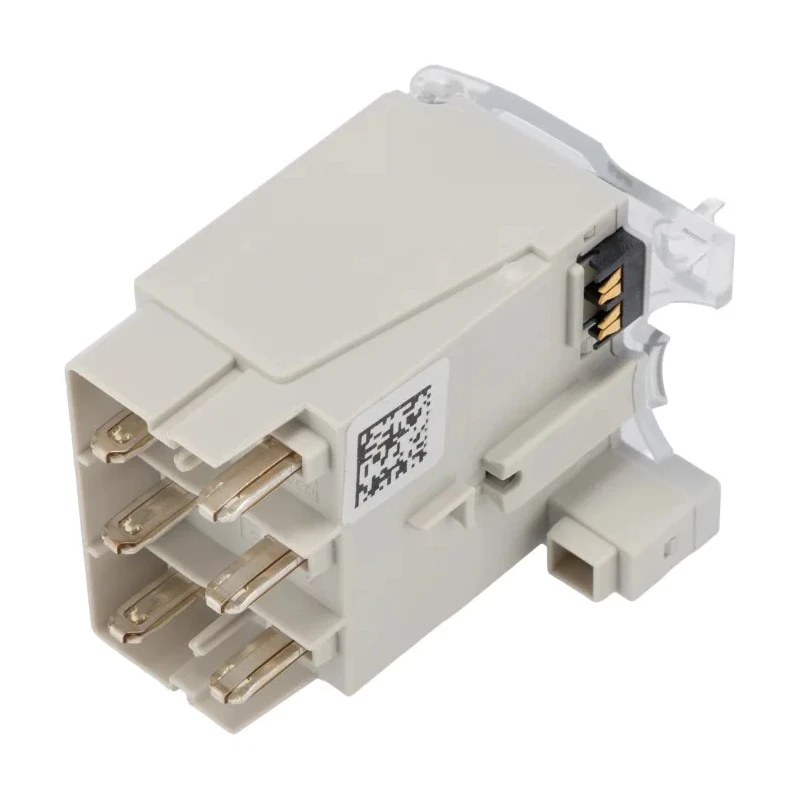

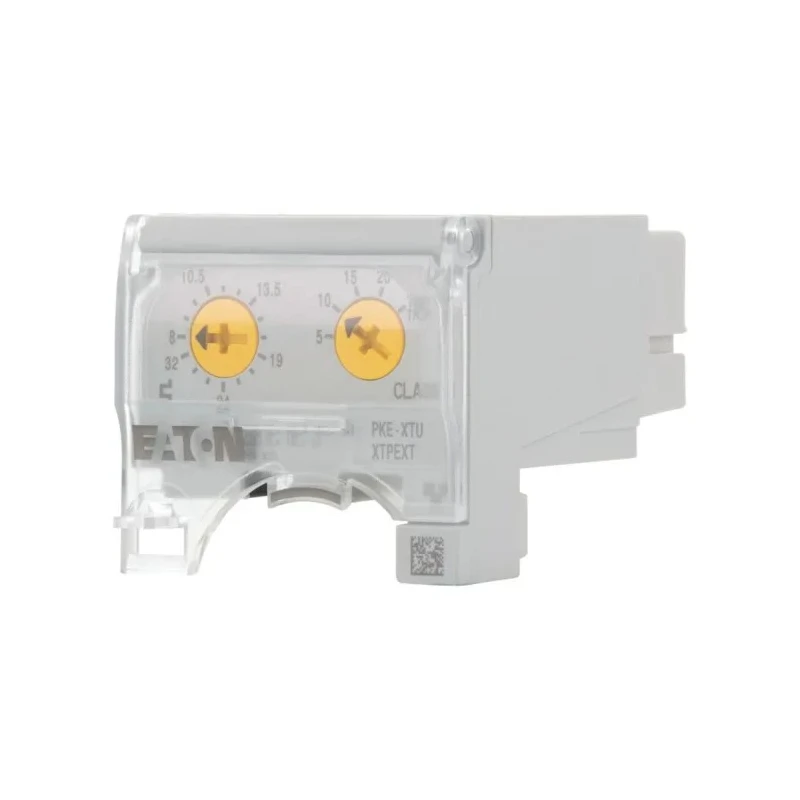

Eaton PKE Electronic Circuit Breaker 32A 690V With Overload Release Electronic Tripping Characteristics 121726 PKE-XTU-32

Eaton 121726 PKE-XTU-32 Electronic Circuit Breaker is a high-performance protective device designed for electrical circuits requiring up to 32A current at 690V. It features an advanced electronic tripping release that rapidly disconnects power in case of overload or short circuits, safeguarding connected equipment and wiring.

Constructed to endure rigorous industrial and commercial environments, this breaker boasts a rated impulse withstand voltage of 6kV AC, providing immunity against sudden power surges and transient voltages. Its IP20 rating guarantees finger-safe operation with protection against ingress of objects larger than 12mm, enhancing user safety.

The breaker supports a configurable overload release current adjustable between 8A and 32A, allowing precise tailoring to specific load requirements. Its temperature operating range from -25°C to +55°C ensures reliable functionality even in harsh ambient conditions.

Equipped with three poles, the PKE-XTU-32 can connect multiple circuit lines efficiently, making it suitable for various electrical setups. The device is well-suited for safeguarding HVAC systems, household appliances, and medium to high-power equipment commonly found in industrial and residential settings.

Thanks to its robust design, it can sustain up to 60 operations per hour, ensuring dependable continuous use without risk of premature failure. The compact dimensions (64.2mm length, 45mm width, and 41.6mm depth) make it adaptable for space-constrained installations.

Adjustable overload release current from 8A to 32A for versatile protection. Rated impulse withstand voltage of 6kV AC for durability against power surges. IP20 rated for finger-safe protection against objects larger than 12mm.

Three poles allow connection to multiple circuits for broad application. Operating temperature range from -25°C to +55°C ensures performance in harsh environments. Supports up to 60 operations per hour, ensuring longevity and reliability.

Complies with CSA, IEC EN 60947, VDE 0660, UL, and RoHS standards.

Designed and manufactured in Germany, the Eaton PKE-XTU-32 Electronic Circuit Breaker is ideal for industrial, commercial, and residential electrical protection applications. Explore other circuit breakers and electrical protection devices from Eaton available on EnvMart for comprehensive solutions.
