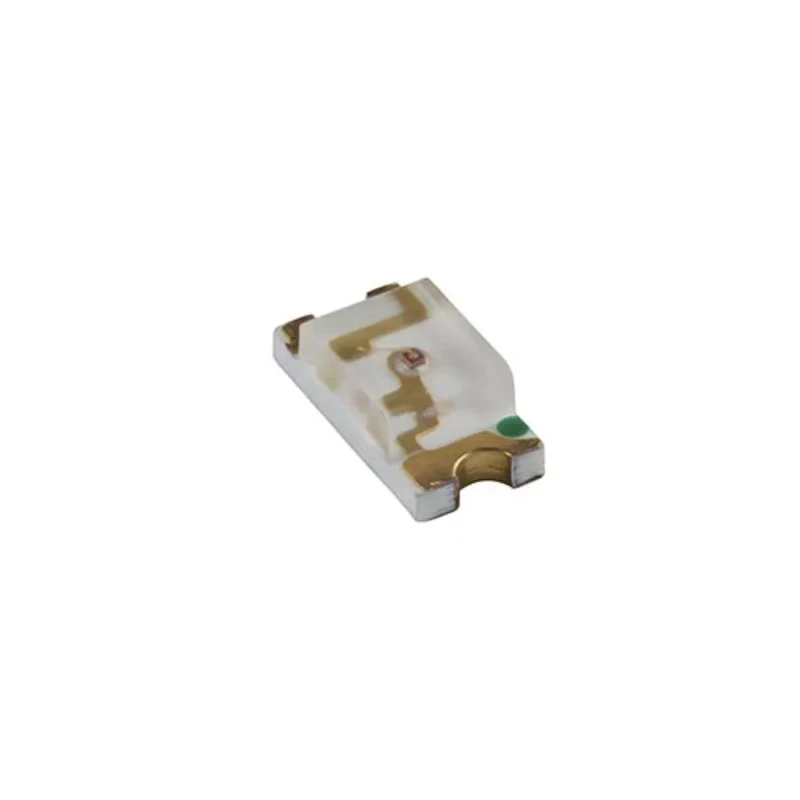

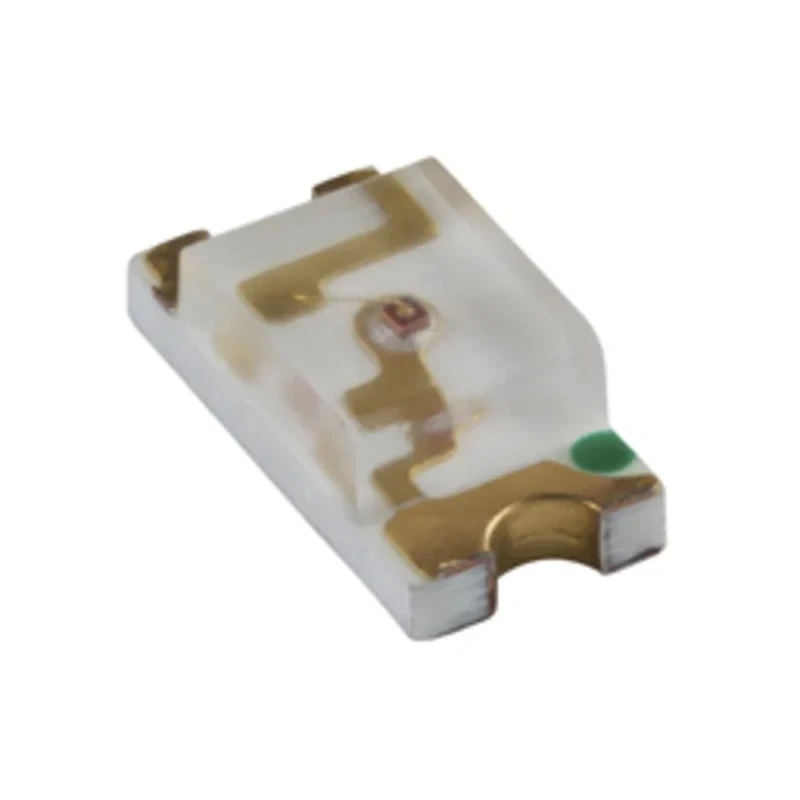

Bivar 2.6 V Red LED 3216 Surface Mount with 30° Viewing Angle SM1206NHC-IL
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bivar |
| Model | SM1206NHC-IL |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | SM1 |
| Maximum forward current | 30mA |
| Viewing angle | 30 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 625nm |
| Forward Voltage | 2.6V |
| Number of Pins | 2 |
| LED Luminosity | 1250 mcd |
| Maximum Power Dissipation | 78mW |
| Lens Dimensions | 2 x 1.6 mm |
| Lens Shape | Rectangular |
Key Features
- This LED has a maximum forward current rating of 30 mA ensuring reliable performance.
- The package type is industry standard 3216 with a surface mount design.
- It has a maximum power dissipation of 78 mW, suitable for compact electronic applications.
- The lens is rectangular and clear with dimensions 2 x 1.6 mm offering focused light emission.
- This model conforms to RoHS standards and is designed with a dominant wavelength of 625 nm for bright red illumination.
- The LED is shipped in tape and reel packaging, ideal for automated PCB assembly.
- Manufactured in China, the SM1 series offers a high luminous intensity LED suitable for displays and indicators.
Product Description
Bivar SM1206NHC-IL is a red surface mount LED designed with a 3216 package size, optimized for industrial and electronic component applications. Operating at 2.6 V forward voltage and capable of handling a maximum forward current of 30 mA, it delivers bright illumination with a luminous intensity of 1250 mcd. The device employs a water clear lens with a narrow 30° viewing angle for focused light output.
This LED features a rectangular, clear lens measuring 2 x 1.6 mm, which is beneficial in compact and precise lighting designs requiring high luminous efficiency. It dissipates up to 78 mW of power and complies with RoHS environmental standards, ensuring safe usage in various industrial and consumer electronic products.
The SM1206NHC-IL is ideal for applications including LED displays, indicator lights, and other electronic visual signals often used in manufacturing, instrumentation, automotive dashboard lighting, and communication equipment. Its tape and reel packaging facilitates efficient surface mount device (SMD) assembly in automated production lines.
As a product manufactured in China under Bivar's SM1 series, this LED is well-suited for industries requiring consistent brightness with compact form factor and precise directional lighting.
This LED has a maximum forward current rating of 30 mA ensuring reliable performance. The package type is industry standard 3216 with a surface mount design. It has a maximum power dissipation of 78 mW, suitable for compact electronic applications.
The lens is rectangular and clear with dimensions 2 x 1.6 mm offering focused light emission. This model conforms to RoHS standards and is designed with a dominant wavelength of 625 nm for bright red illumination. The LED is shipped in tape and reel packaging, ideal for automated PCB assembly.
Manufactured in China, the SM1 series offers a high luminous intensity LED suitable for displays and indicators. Explore more high-quality electronic components and LEDs from Bivar on EnvMart to meet your industrial, laboratory, and manufacturing needs.
Explore more products in our LEDs - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating for this model is 30 mA, ensuring reliable performance in various applications.
The dominant wavelength of this LED is 625 nm, providing bright red illumination suitable for displays and indicators.
The lens dimensions are 2 x 1.6 mm, featuring a rectangular shape that allows for focused light emission.
This model has a narrow viewing angle of 30°, which helps in directing the light output effectively.
The maximum power dissipation for this LED is 78 mW, making it suitable for compact electronic applications.
It is shipped in tape and reel packaging, which is ideal for automated PCB assembly.
The forward voltage for this LED is 2.6 V, which is necessary for its operation.
This model conforms to RoHS standards, ensuring safe usage in various industrial and consumer electronic products.
The luminous intensity of this LED is 1250 mcd, providing bright illumination for various applications.
This LED belongs to the SM1 series, which is designed for high luminous efficiency in compact form factors.
This model features a surface mount design, making it suitable for various electronic applications.
This LED has 2 pins, which are standard for surface mount devices in electronic applications.
