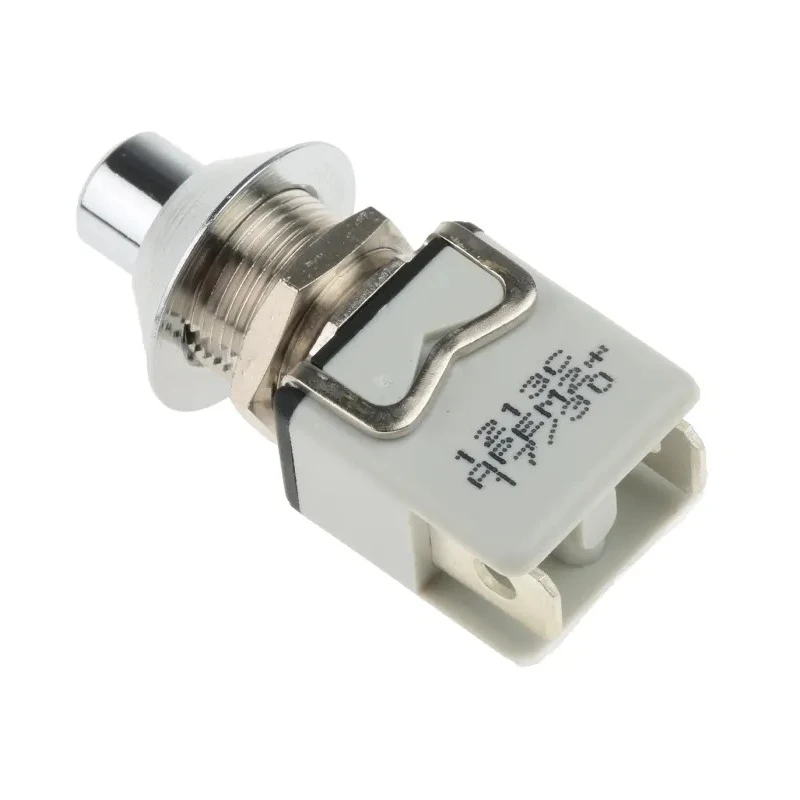

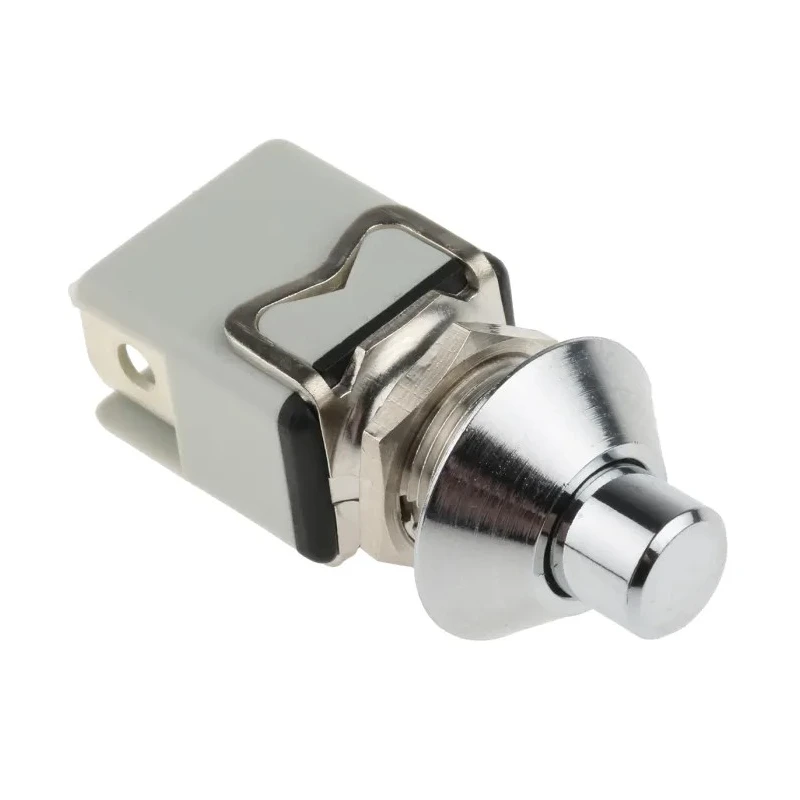

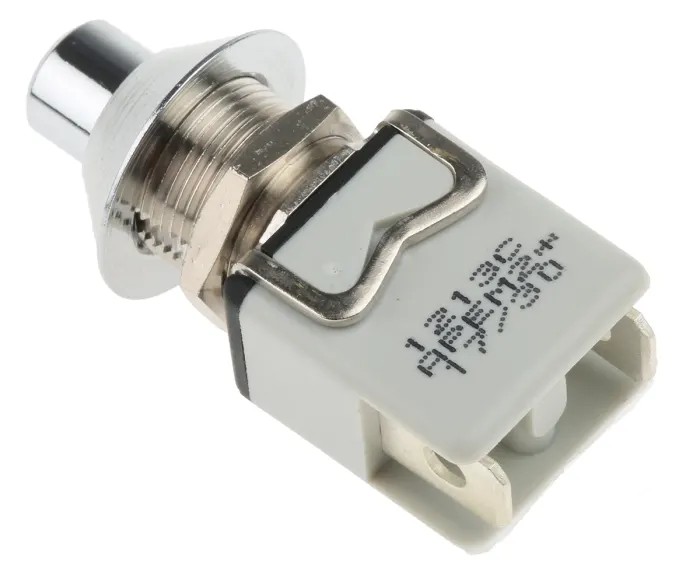

APEM 1200M Series Silver Plunger Momentary Push Button Switch SPST Panel Mount 12.2 mm Cutout 24V dc 250V ac 1213MC8

APEM 1213MC8 1200M Series silver plunger momentary push button switch offers a robust, panel-mounted control solution with a 12.2 mm cutout size. It features a Single Pole Single Throw (SPST) contact configuration suitable for switching DC voltages of 24 V and AC voltages up to 250 V. This push button switch utilizes a plunger-style actuator with momentary operation that returns to its original position after actuation, making it ideal for applications requiring transient on/off control.

The switch is engineered for fast and easy installation with a panel mounting type and faston 0.250 inch solder terminal connections, ensuring stable electrical contact. It features a chrome button version with a conical panel nut, enhancing its aesthetic and mechanical integration.

Key performance attributes include a contact resistance of 10mΩ, insulation resistance of 1000MΩ minimum at 500 V DC, and dielectric strength rated at 2000Vrms. The switch is designed for electrical durability with a rated mechanical life of 10,000 operations, ensuring reliable switching in industrial, laboratory, electrical automation, and HVAC systems.

The operating temperature range from -20°C to +55°C supports a wide array of industrial environments. This push button switch complies with RoHS directives, reinforcing its suitability for environmentally conscious operations. Silver contact materials provide excellent conductivity and resistance to arc erosion, making it a dependable component for control panels.

Available optional accessories for enhanced user interface functionality include a push button boot (stock number 103-6303) and a chrome panel nut cap (stock number 103-6319), which are sold separately.

Features a silver plunger actuator with momentary operation for reliable control. Designed for panel mounting with a 12.2 mm diameter cutout and 22 mm depth behind panel. Single Pole Single Throw (SPST) configuration supports simple switching applications.

Rated for 2A switch contact current with contact ratings of 4A @ 250Vac and 8A @ 125Vac. Operates across a temperature range of -20°C to +55°C for diverse industrial environments. Faston 0.250 inch terminals allow easy solder connection and secure mounting.

High durability with a mechanical life of 10,000 operations ensuring long-term reliability. Conforms to RoHS standards and includes silver contact materials for superior conductivity. Compatible optional accessories include push button boot (stock no: 103-6303) and chrome panel nut cap (stock no: 103-6319) sold separately.

This APEM Push Button Switch series is suitable for electrical panels, automation systems, industrial machinery, HVAC controls, and laboratory equipment applications. Browse EnvMart's extensive electrical switch catalog to find matching control components.
