Patlite LR6 Series Signal Tower Buzzer, 2 Lights LED, Steady and Flashing Light Effect, 24V DC LR6-202WJBW-RG

Free Delivery in India | Lowest Global Shipping Charges

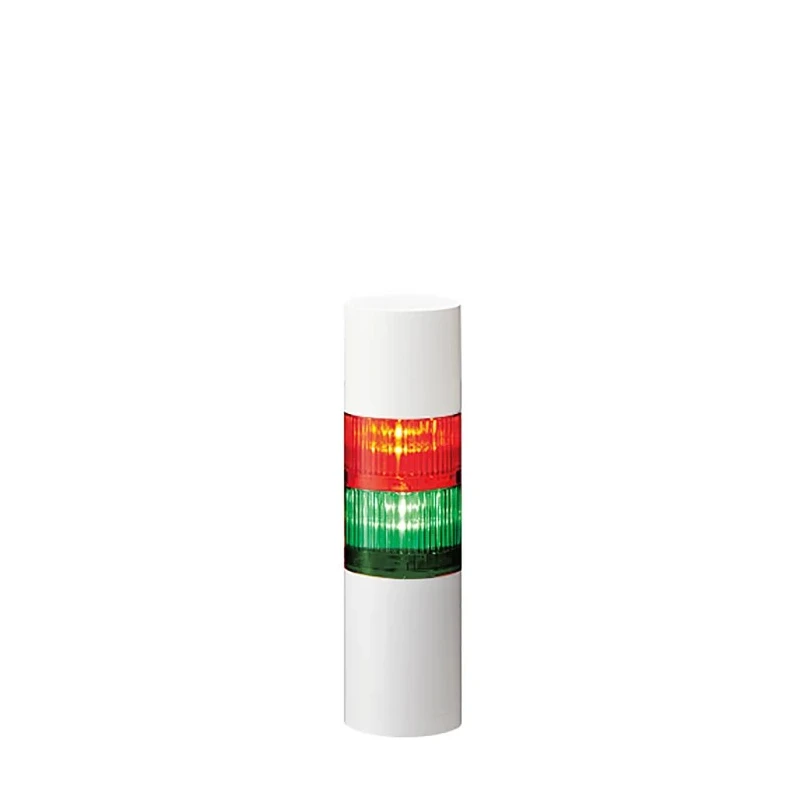

Patlite LR6 Series Signal Tower Buzzer, 2 Lights LED, Steady and Flashing Light Effect, 24V DC LR6-202WJBW-RG

Name: Patlite LR6 Series Signal Tower Buzzer, 2 Lights LED, Steady and Flashing Light Effect, 24V DC LR6-202WJBW-RG
Brand: PATLITE
SKU: 95643
Price: 256.91 USD
Availability: InStock



Category Signal Tower Brand PATLITE Condition New

Specifications

Country of Origin	Indonesia
Brand	Patlite
Height	213.5mm
Model	LR6-202WJBW-RG
IP Rating	IP65
Bulb Type	LED
Series	LR6
Maximum Operating Temperature	50°C
Current Type	DC
Current consumption	250mA
Minimum Operating Temperature	-20°C
Base Diameter	60mm
Terminal type	Terminal Block
Standards/Approvals	KC (KN 61000-6-4,KN 61000-6-2), FCC Part 15 Subpart B Class A, EMC Directive (EN 61000-6-4,EN 61000-6-2), CSA-C22.2 No. 14, UL Recognised Component (File No.E215660), UL 508, RoHS Directive (EN 50581)
Maximum Supply Voltage	24V dc
Housing Colour	Off-White
Light Effect	Steady, Flashing
Minimum Sound Level	85dB
Sounder Type	Buzzer
Maximum Sound Level	90dB
Number of Light Elements	2
Connection Cable Length	1.3m

Key Features

Features steady and flashing light effects for versatile signaling.
Includes a buzzer for audible alerts with sound levels from 85dB to 90dB.
Compact design with 213.5mm height and 60mm base diameter.
Durable off-white housing with IP65 rating ensures dust and water resistance.
Operating temperature range from -20°C to 50°C for industrial environments.
Easy terminal block connection and 1.3m cable length for installation convenience.
Modular ‘‘Twist and Lock’’ system enables field customization of LED and sound modules.
Compliant with multiple international standards including UL, CSA, FCC, RoHS, and EMC directives.

Product Description

Patlite LR6-202WJBW-RG is a high-performance signal tower buzzer designed for industrial and automation signaling applications.

This signal tower features two LED light elements providing bright, even illumination with steady and flashing effects to meet diverse signaling requirements. It operates on 24V DC power with a buzzer that delivers a loud omni-directional sound between 85dB to 90dB, ensuring clear audible alerts in noisy environments.

The compact unit measures 213.5mm in height and has a 60mm base diameter. Its off-white housing is robust and rated IP65, giving reliable protection against dust and water ingress, suitable for harsh industrial conditions. The operating temperature range from -20°C to 50°C provides versatile environmental tolerance.

Installation is simplified with a terminal block connector and a 1.3m connection cable. The modular “Twist and Lock” system offers easy customization and field reconfiguration of both LED and sound modules, adapting to changing operational needs.

Patlite LR6-202WJBW-RG complies with multiple international standards and approvals, including KC, FCC Part 15 Class A, EMC directives, CSA-C22.2 No. 14, UL Recognised Component status, UL 508, and RoHS Directive compliance, ensuring high quality and regulatory adherence.

This signal tower buzzer is ideal for applications in industrial automation, manufacturing plants, HVAC systems, water treatment facilities, laboratory equipment, and commercial signaling operations requiring robust and multifunctional visual and audible alerts.

Features steady and flashing LED light effects for varied signaling needs. Includes buzzer delivering sound levels of up to 90dB for effective alerts. Durable IP65-rated off-white housing protects against dust and water ingress.

Modular design enables quick customization with ‘‘Twist and Lock’’ segments. Certified to multiple international safety and EMC standards. Suitable for use in harsh environments with wide temperature tolerance. Easy installation via terminal block and 1.3m cable length.

Manufactured in Indonesia to ensure consistent quality. Explore the Patlite LR6 Series for reliable and configurable Signal Tower solutions available at EnvMart for your industrial signaling requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The buzzer in this model delivers a maximum sound level of 90dB, ensuring effective audible alerts in various environments.

This signal tower has a height of 213.5mm and a base diameter of 60mm, making it compact for various installations.

The operating temperature range for this unit is from -20°C to 50°C, allowing it to function effectively in diverse industrial environments.

It operates on a 24V DC power supply, making it suitable for various electrical systems.

This model features both steady and flashing light effects, allowing for versatile signaling options.

It uses a terminal block connection for installation, which simplifies the setup process.

The connection cable included with this model is 1.3 meters long, providing flexibility during installation.

This signal tower complies with multiple standards including KC, FCC Part 15 Class A, CSA-C22.2 No. 14, UL 508, and RoHS Directive, ensuring regulatory adherence.

The housing of this signal tower has an IP65 rating, providing protection against dust and water ingress.

This signal tower features two LED light elements, which provide bright and even illumination.

The minimum sound level produced by the buzzer is 85dB, ensuring clear alerts in various settings.

This model is manufactured in Indonesia, ensuring consistent quality in production.
