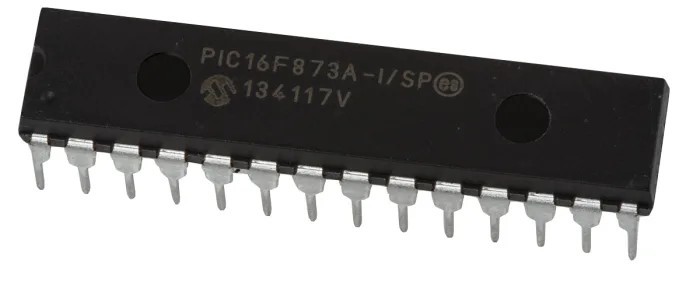

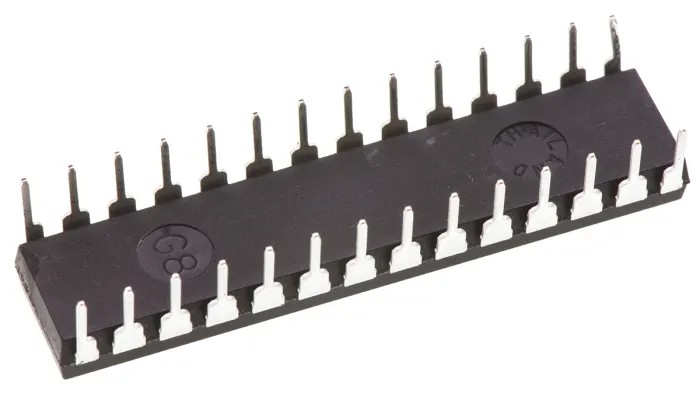

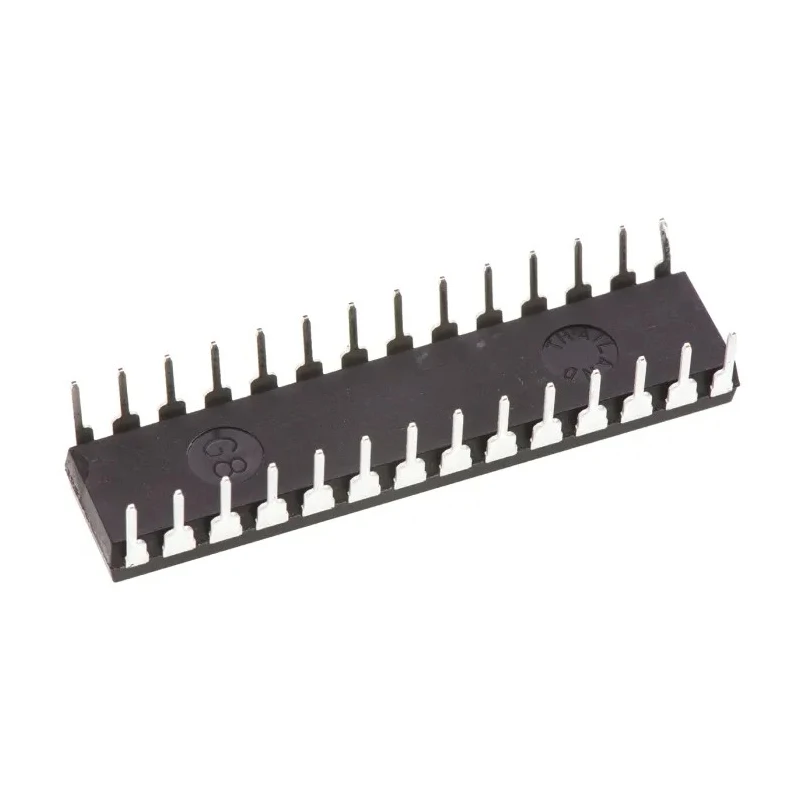

Microchip 8 bit PIC Microcontroller 7kB FLASH 20 MHz 28-Pin SPDIP PIC16F87XA

Microchip PIC16F87XA 8 bit PIC Microcontroller offers robust embedded control with 7kB FLASH program memory and a maximum clock frequency of 20 MHz, housed in a 28-pin SPDIP through-hole package. This device is designed for versatile applications in industrial, automotive, consumer electronics, and embedded system development where efficient processing and multiple interface options are critical.

It features 22 programmable input/output pins, providing a wide range of general-purpose digital I/O interfaces. The microcontroller includes 192 bits of RAM allowing effective data storage during operation and supports 5 analog to digital conversion channels with 10-bit resolution, enhancing capabilities for sensor interfacing and analog signal processing.

Operating voltage ranges between 2V and 5.5V with a maximum power dissipation of 1 watt, combined with a temperature rating from -40°C to 85°C, this microcontroller is well-suited for demanding temperature variations in industrial and automotive environments. The device supports 3 dedicated timers and 2 analogue comparators enabling complex timing and signal comparison functionalities within embedded applications.

Based on a RISC instruction set architecture, the PIC16F87XA is optimized for performance and efficiency, supporting rapid execution of instructions. The SPDIP form factor facilitates straightforward mounting and prototyping on standard PCBs, enhancing accessibility for product development and testing phases.

This product is RoHS compliant, meeting environmental and safety regulations, and is ideal for designers and engineers seeking a reliable microcontroller solution for embedded system designs requiring moderate memory, speed, and I/O versatility.

Integrates 22 programmable input/output pins for versatile interfacing. Features 192-bit RAM and 7kB FLASH program memory for efficient processing. Operates across a voltage range of 2V to 5.5V with low power dissipation of 1W.

Includes 5 ADC channels with 10-bit resolution for analog signal processing. Equipped with 3 timers and 2 analogue comparators for complex control operations. Designed with RISC architecture for optimized instruction execution.

Thermally rated for operation from -40°C up to 85°C, suitable for industrial environments. Through Hole mount type in SPDIP package ensures easy prototyping and assembly. Compliant with RoHS standards ensuring environmental safety.
