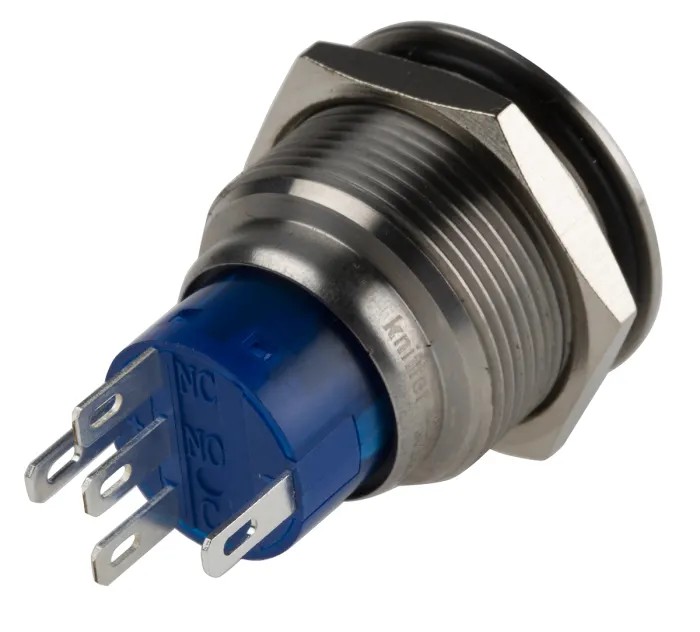

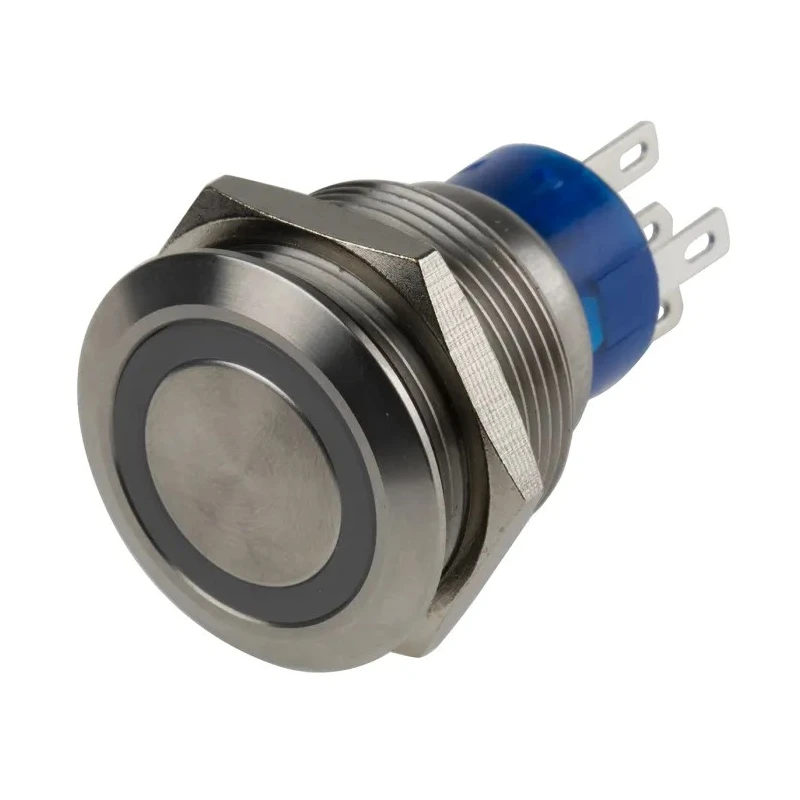

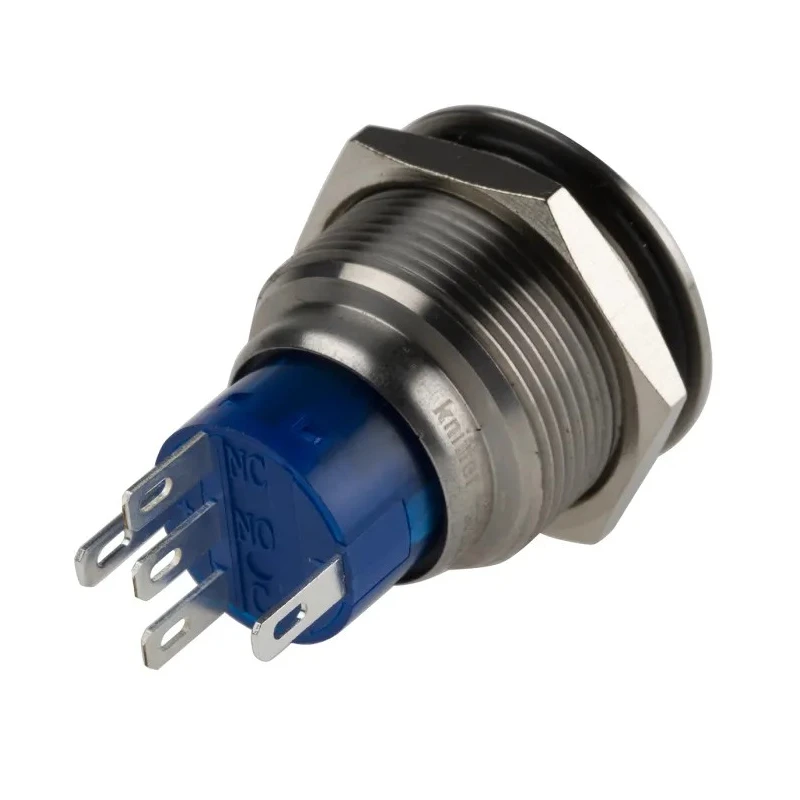

KNITTER-SWITCH MAV Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.2 mm Cutout, SPDT MAV22A0F10E-712-JQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | MAV22A0F10E-712-JQ |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MAV |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V-0 |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 28V dc |
| Actuator Style | Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a silver stainless steel actuator and a ring shape lens style.
- It is rated IP67 for dust and water ingress protection.
- The switch supports 28 V DC and 250 V AC contact voltages with a 3A contact current rating.
- It uses solder lug terminals with silver solder tab surface for reliable connections.
- Operating temperature range is from -20 °C to +55 °C with a maximum temperature rating of 120 °C.
- The actuator style is a push button with on-off switch configuration.
- The blue LED illumination operates at 12 V LED voltage.
- UL 94 V-0 standards ensure flame resistance of the materials used.
Product Description
The KNITTER-SWITCH MAV22A0F10E-712-JQ illuminated push button switch is a high-quality panel-mounted momentary switch designed for industrial and automation applications. It features a 22.2 mm panel cutout size, suitable for secure mounting in electrical panels.
The switch has a silver stainless steel button actuator combined with a ring-shaped lens style that houses a blue LED indicator. This LED operates at 12 V providing clear illuminated status. The contact configuration is single pole double throw (SPDT) with on-off functionality, capable of switching 28 V DC and 250 V AC circuits at currents up to 3A.
Constructed to meet IP67 protection standards, the switch offers excellent resistance to dust and water ingress, making it ideal for harsh environments. The solder lug terminals with silver solder tab ensure strong and corrosion-resistant electrical connections.
Operating temperatures range from -20 °C to +55 °C, with components rated up to 120 °C for maximum reliability under thermal stress. The switch meets UL 94 V-0 flame retardant standards, emphasizing its suitability for safety-critical installations.
This product finds extensive application in electrical control panels, industrial automation systems, HVAC controls, manufacturing equipment, and other commercial or laboratory instrumentation where reliable momentary push button switching is required.
The switch features a silver stainless steel actuator and a ring shape lens style. It is rated IP67 for dust and water ingress protection. The switch supports 28 V DC and 250 V AC contact voltages with a 3A contact current rating.
It uses solder lug terminals with silver solder tab surface for reliable connections. Operating temperature range is from -20 °C to +55 °C with a maximum temperature rating of 120 °C. The actuator style is a push button with on-off switch configuration.
The blue LED illumination operates at 12 V LED voltage. UL 94 V-0 standards ensure flame resistance of the materials used. Explore KNITTER-SWITCH products and other high-quality push button switches at EnvMart for your industrial and electrical automation needs.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single pole double throw (SPDT) contact configuration, allowing for on-off functionality.
It supports contact voltages of 28 V DC and 250 V AC with a contact current rating of 3A.
The maximum operating temperature is rated at 120 °C, ensuring reliability under thermal stress.
This model requires a panel cutout size of 22.2 mm for secure mounting.
It uses solder lug terminals with a silver solder tab surface for reliable connections.
The switch has an IP67 rating, providing excellent protection against dust and water ingress.
The blue LED illumination operates at a voltage of 12 V.
It meets UL 94 V-0 standards, which ensure flame resistance of the materials used.
The operating temperature range is from -20 °C to +55 °C.
The actuator style is a push button, designed for momentary operation.
This switch is suitable for applications in electrical control panels, industrial automation systems, HVAC controls, and manufacturing equipment.
The actuator color is silver, complementing the overall design of the switch.
