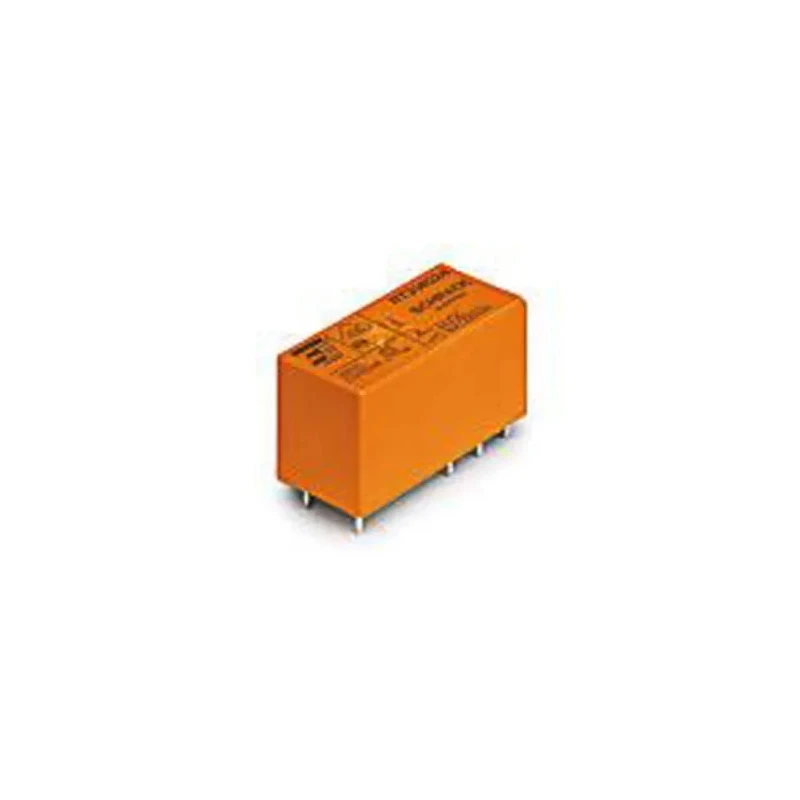

TE Connectivity PCB Power Relay 12V DC Coil, 16A Switching Current, Silver Alloy Contacts RTH34012WG
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTH34012WG |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RTH |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | VDE, CSA |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- The relay has a through hole mount type suitable for PCB installation.
- It operates with a coil resistance of 360 ohms and coil power of 400mW.
- The relay supports switching powers up to 4kVA and switching AC voltage of 400V AC.
- Designed for harsh environments, it operates in temperatures from -40°C to 105°C.
- The contact material is made of durable silver alloy for reliable conduction.
- It features reinforced insulation, flux proof casing, and 5mm pinning for secure connections.
- Common applications include oven and cooking plate control, benefiting from its high temperature tolerance.
Product Description
TE Connectivity RTH34012WG PCB Power Relay is a high temperature PCB relay designed to operate reliably at ambient temperatures up to 105°C, making it ideal for demanding industrial and domestic applications.
This relay utilizes a 12V DC coil with a sensitive 400mW coil power and a coil resistance of 360 ohms, ensuring efficient operation with low power consumption. Its single pole single throw (SPST) contact configuration supports a switching current of 16A and switching power up to 4kVA at an AC voltage rating of 400V.
The relay is through-hole mounted on a printed circuit board (PCB) with a robust orange flux-tight enclosure ensuring protection against contamination and enhanced insulation. The contacts are manufactured from silver alloy, offering high conductivity and durability under continuous switching loads.
With dimensions of 29mm length, 12.7mm width, and 15.7mm height, the relay is compact and suitable for integration in confined spaces. It features 5mm pinning and reinforced insulation complying with VDE and CSA standards. Its operational temperature range is from -40°C to 105°C, making it suitable for applications involving temperature extremes.
Ideal applications include oven controls, cooking plate controls, and other industrial or commercial appliances that require reliable power relay switching under high temperature conditions.
The coil operates at 12V DC with 400mW consumption. Switching current capacity of 16A with SPST configuration. Reinforced insulation and flux proof casing to withstand harsh environments. Compact PCB mount design with through-hole terminals and 5mm pinning.
Wide operating temperature range suitable for industrial applications. Silver alloy contact material ensures high conductivity and durability. Meets VDE, CSA, and UL safety and quality standards.
TE Connectivity power relays provide reliable solutions for electrical switching applications across industrial, commercial, and domestic sectors. Browse more Power Relays and related components on EnvMart to suit your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 16A.
The relay has dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
It features a single pole single throw (SPST) contact configuration.
The relay operates within a temperature range of -40°C to 105°C.
The contacts are made of silver alloy, which provides high conductivity and durability.
The coil resistance is 360 ohms.
It is designed for through-hole mounting on a printed circuit board (PCB).
It meets VDE and CSA standards for safety and quality.
The coil power consumption is 400mW.
This relay is suitable for applications such as oven controls and cooking plate controls, especially in high temperature environments.
