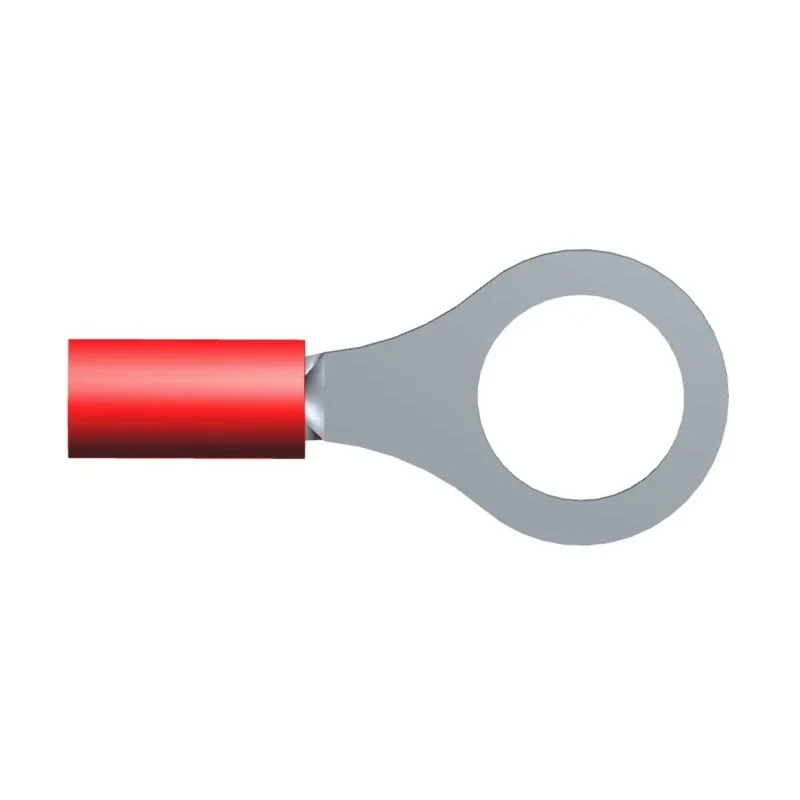

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M8 Stud Size 22 AWG To 16 AWG Red 8-34151-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Insulation | Insulated |
| Overall Length | 27.69mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Polyvinyl Chloride |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 11.91mm |
| Inner Ring Diameter | 8.33mm |
| Stud Size | M8 |
Key Features
- Constructed with high conductivity copper contact material plated with tin for corrosion resistance.
- Polyvinyl chloride insulation provides high dielectric strength and 94V-0 rating.
- Outer ring diameter measures 11.91 mm and inner ring diameter is 8.33 mm.
- Overall length of the terminal is 27.69 mm with a thickness of 0.79 mm.
- Suitable for maximum wire size of 16 AWG (1.65 mm²) and minimum wire size of 22 AWG (0.26 mm²).
- The ring terminal is designed for use in electrical and electronic component connections.
- Maximum operating temperature of 105°C ensures reliable performance in demanding conditions.
- Red color coding aids in quick and easy identification during installation and maintenance.
Product Description
TE Connectivity 8-34151-1 PLASTI-GRIP insulated ring terminal offers reliable electrical connection solutions. It is designed with an M8 stud size ring suitable for wire sizes 22 AWG to 16 AWG, with a red polyvinyl chloride insulation sleeve to provide high dielectric strength and protection. The closed barrel design with serrated inner barrel ensures maximum electrical contact and tensile strength after crimping, facilitating a strong and durable electrical connection.
The contact material is high-conductivity copper plated with tin to resist corrosion and maintain conductivity over time. The outer ring diameter is 11.91 mm and inner ring diameter is 8.33 mm, with an overall length of 27.69 mm and thickness of 0.79 mm, making it compact yet robust for various industrial and electronic applications.
This terminal complies with Mil Spec standards, ensuring quality and reliability for electrical wiring tasks. The insulation material is rated V-0 at 94V for outstanding flame resistance, and the maximum operating temperature is 105°C, suitable for demanding environments.
The red color coding assists technicians in quick identification and wiring tasks, improving efficiency in installation and maintenance. This product is widely used in electronics, automotive, industrial machinery, and manufacturing sectors for secure and efficient wire termination and connections.
High conductivity tin-plated copper contact material for durability. Polyvinyl chloride insulation sleeve with high dielectric strength. Closed barrel ring tongue design with serration for tensile strength. M8 stud size compatible with 22 AWG to 16 AWG wire sizes.
Durable insulation rated for 94V-0 flame retardance. Compact design with 27.69 mm overall length and 0.79 mm thickness. Reliable in temperatures up to 105°C. Red color for easy identification in wiring systems. Explore the extensive selection of Ring Terminals and electrical connectors at EnvMart for high-quality electronic components suited for professional and industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal can accommodate a maximum wire size of 16 AWG, which is equivalent to 1.65 mm².
The outer ring diameter measures 11.91 mm, while the inner ring diameter is 8.33 mm.
The overall length of the terminal is 27.69 mm, and its thickness is 0.79 mm.
The insulation material used is polyvinyl chloride, which provides high dielectric strength and a flame retardance rating of 94V-0.
The maximum operating temperature for this terminal is 105°C, ensuring reliable performance in demanding conditions.
The contact material is high-conductivity copper plated with tin, which helps resist corrosion and maintain conductivity over time.
This terminal is designed for an M8 stud size, making it suitable for various electrical connections.
The minimum wire size that this terminal can accommodate is 22 AWG, which corresponds to 0.26 mm².
The terminal features a closed barrel design with a serrated inner barrel, which ensures maximum electrical contact and tensile strength after crimping.
This terminal is widely used in electronics, automotive, industrial machinery, and manufacturing sectors for secure and efficient wire termination and connections.
The terminal is red in color, which aids in quick and easy identification during installation and maintenance tasks.
Yes, this terminal complies with Mil Spec standards, ensuring quality and reliability for electrical wiring tasks.
