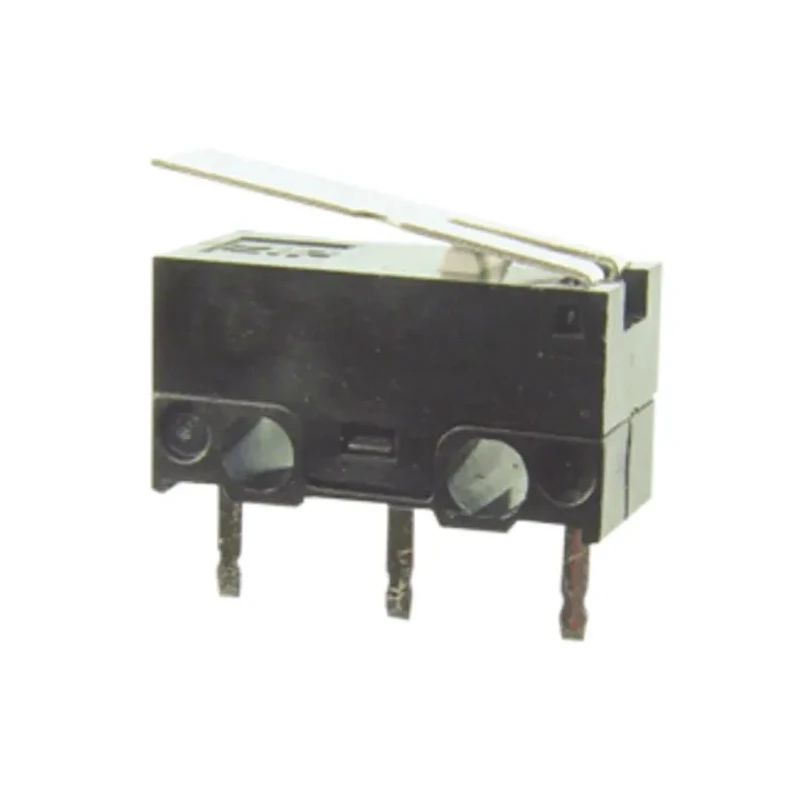

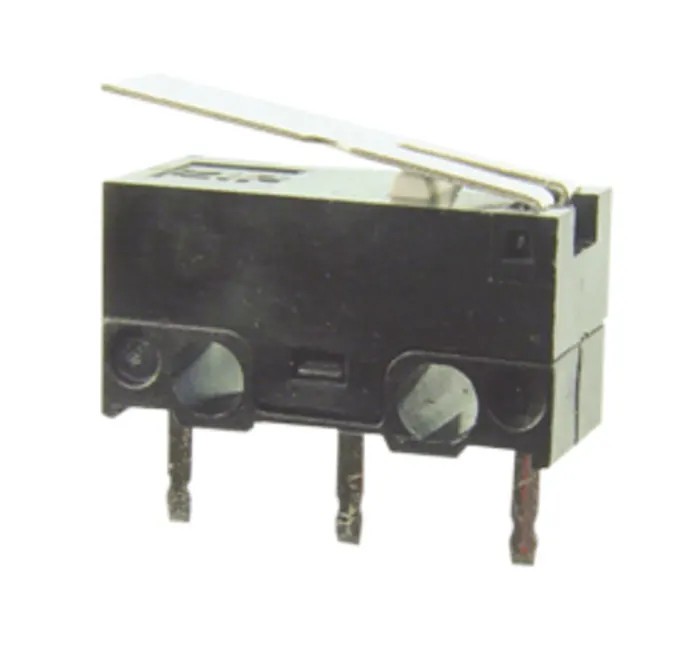

C & K Lever Snap Action Micro Switch, Through Hole Terminal, 100mA, 125V AC, 60V DC, SPCO Contact, IP40, Model ZMA00A150L04PC

The C & K ZMA00A150L04PC lever snap action micro switch is designed for precise and reliable low current switching in compact electronic and electrical systems. Featuring a robust polybutylene terephthalate housing, this subminiature switch utilizes a lever actuator and through hole terminals to facilitate easy PCB mounting and actuation flexibility.

Rated for 100mA contact current, with maximum contact voltages of 125V AC and 60V DC, it supports various light load applications including PCB detection switches, communication devices, and testing equipment in industrial, commercial, and laboratory settings.

The device is engineered with a single pole changeover (SPCO) contact configuration offering multiple wiring options. Its IP40 rating provides protection against solid objects greater than 1 mm, ensuring reliable operation in controlled environments.

The operating force of 150 grams ensures soft actuation, reducing mechanical strain and extending switch life. It performs reliably across a wide temperature range from -40°C to 85°C, making it suitable for diverse ambient conditions.

This micro switch boasts a mechanical life of 1 million cycles, underscoring its robustness for long-term use. It meets stringent industry standards such as UL 61058-1, cULus, ENEC, and UL 1054, assuring quality and safety.

With compact dimensions of 12.8 mm length, 5.8 mm width, and 5.8 mm depth, the ZMA00A150L04PC is ideal where space is limited without compromising performance. Compact subminiature design suitable for space-limited applications.

Operates at 100mA contact current with 125V AC and 60V DC voltage ratings. Durable polybutylene terephthalate housing ensures mechanical strength. Single pole changeover (SPCO) contact configuration provides versatile switching.

IP40 rated protection for basic dust resistance. Operating force of 150 grams for precise actuation. Wide operating temperature range from -40°C to 85°C. Mechanical life expectancy of 1,000,000 cycles for long-term reliability.

Standards compliance includes UL 61058-1, cULus, ENEC, and UL 1054. Dimensions: length 12.8mm, width 5.8mm, depth 5.8mm.

Choose the C & K ZMA00A150L04PC micro switch for applications requiring dependable, long-life, low current snap action switching. Explore more in the Micro Switches category for related products.
