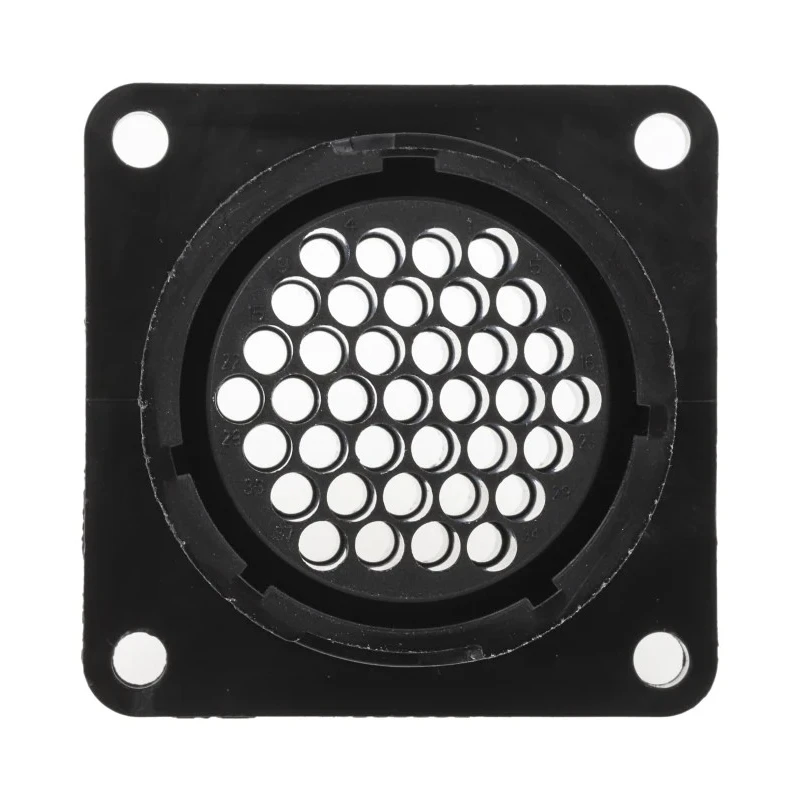

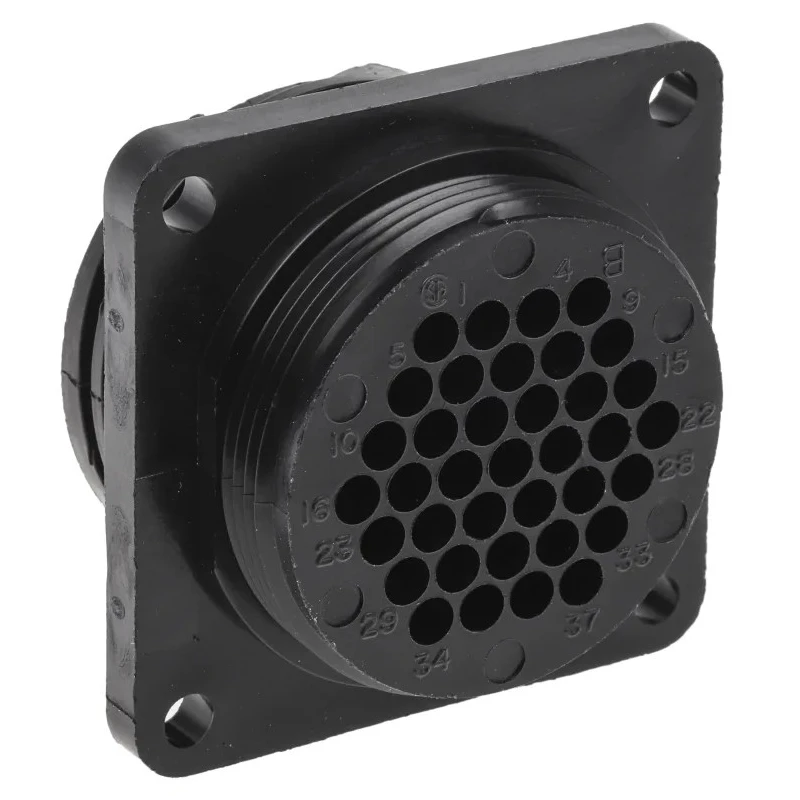

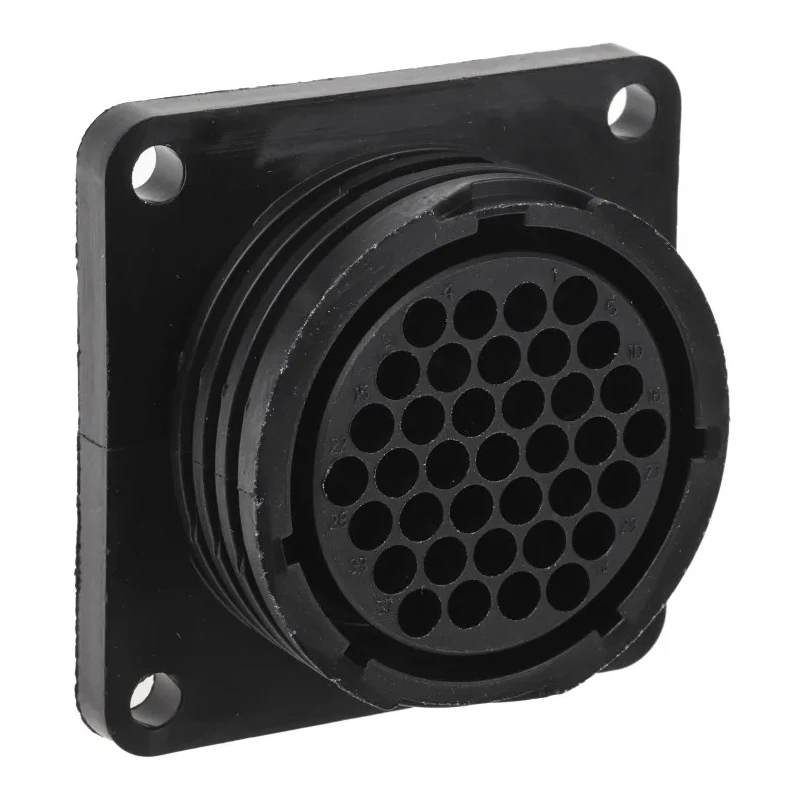

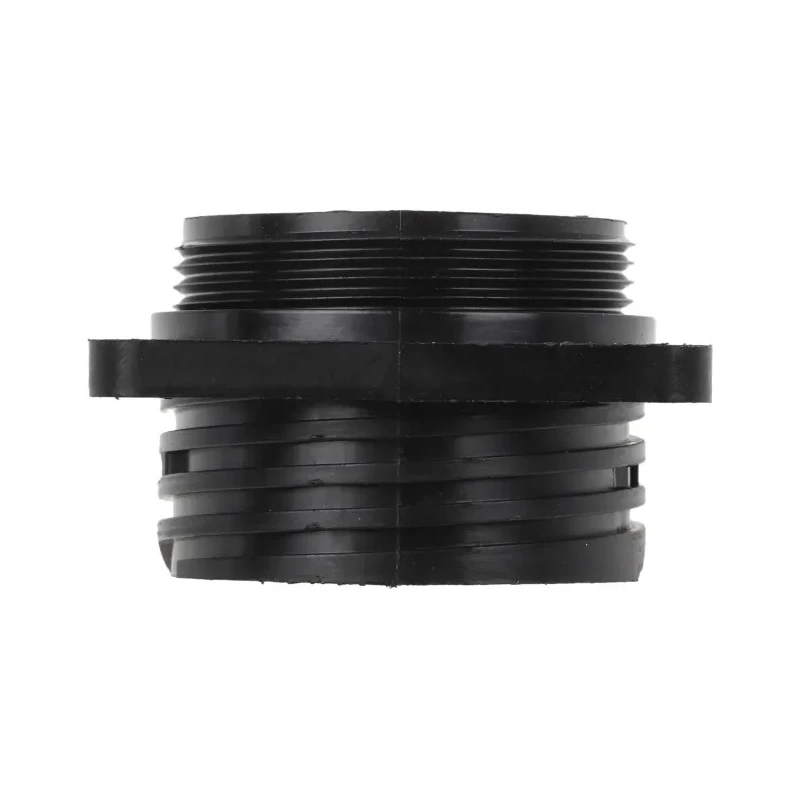

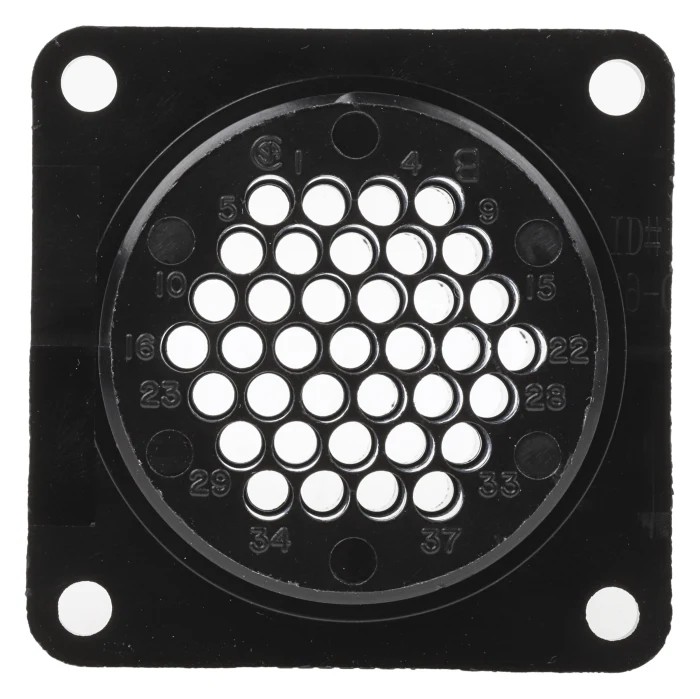

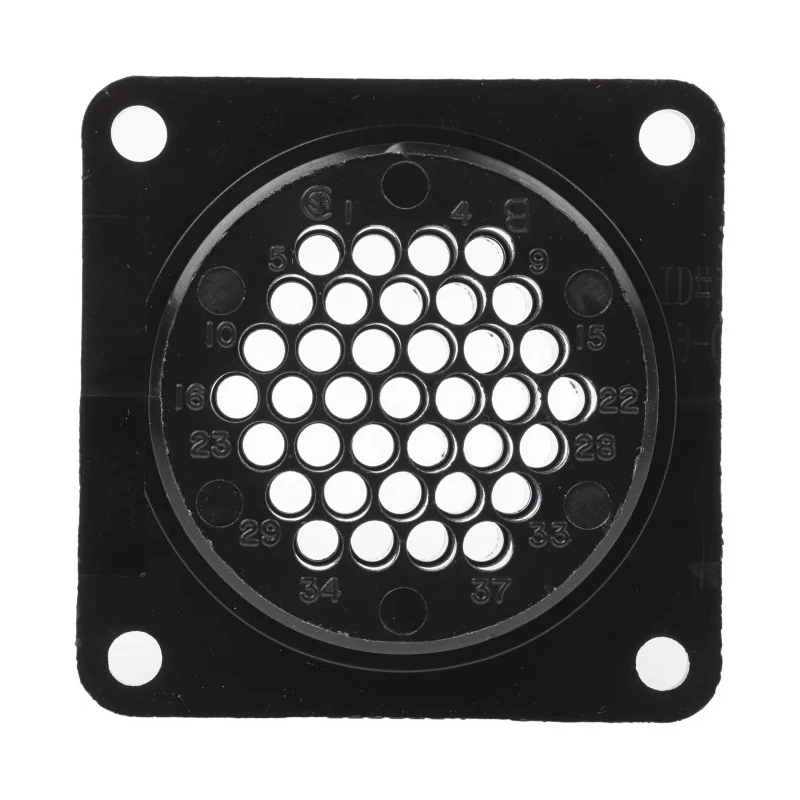

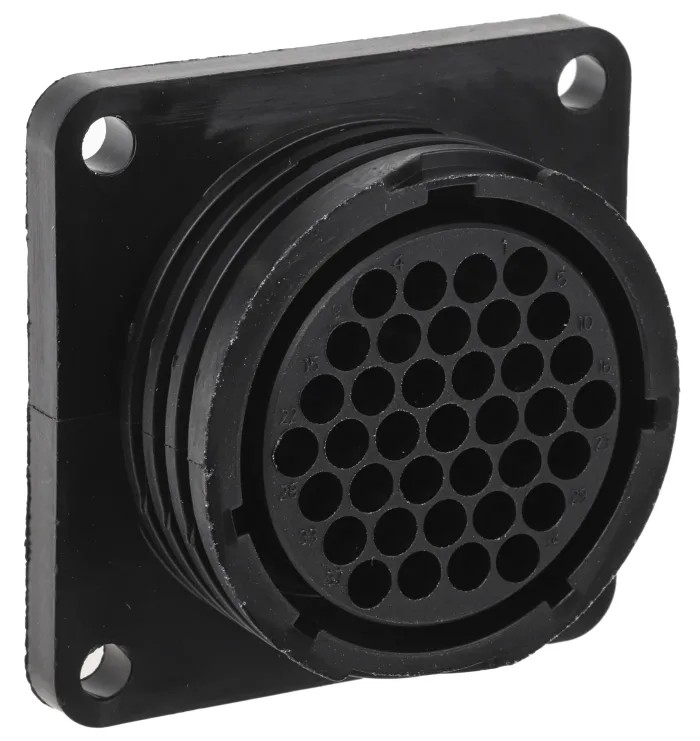

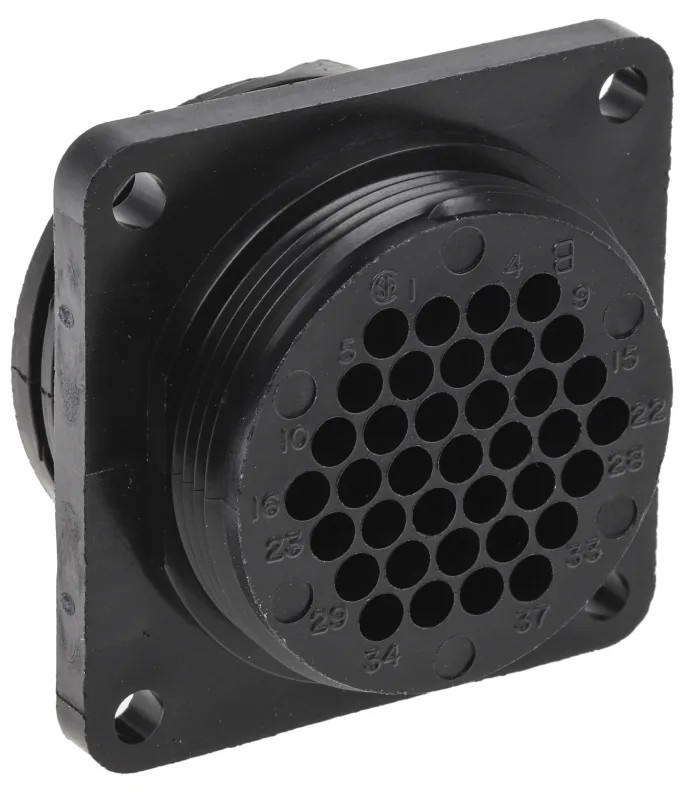

TE Connectivity Circular Connector Panel Mount Socket Female 37 Contacts 250V CPC Series 206306-1
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250.0V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 206306-1 |
| Mount Type | Panel Mount |
| Housing Material | Nylon |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | CSA, RoHS, UL 94V-0 |
| Number of Contacts | 37 |
| Contact Gender | Female |
| Shell Size | 23 |
| Mating Type | Keyed |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Coding | A |
| Series 1 | Standard density. Specifically designed for signal and low power current applications. Series 1 connectors are available in 4-37 pole with signals up to 13A |
Key Features
- Designed for signal and low power current applications with a standard size 37 contacts.
- Panel mount type with crimp termination ensures secure and reliable connections.
- Constructed from UL94V-0 rated nylon housing material for high resistance to heat and impact.
- Operates reliably from -55°C to 105°C with CSA, RoHS, and UL 94V-0 approvals.
- Keyed polarized connector prevents incorrect mating and accidental disengagement in harsh environments.
- Lightweight and rugged design resistant to vibration and shock for industrial and transportation use.
- The socket female contacts are removable and supports rapid field repairs to minimize downtime.
- The CPC series is compatible with size 16 MultiMate crimp contacts and offers a quick connect/disconnect feature.
Product Description
TE Connectivity 206306-1 circular connector is a panel mount socket female connector with 37 contacts designed for industrial and commercial applications requiring a rugged, reliable connection system. This CPC series standard size connector operates at a voltage rating of 250V and is specifically engineered for signal and low power current uses.
The connector's housing is constructed from high-grade UL94V-0 rated nylon thermoplastic material, offering excellent resistance to shock, vibration, and environmental stresses. It can operate in extreme temperatures ranging from -55°C to 105°C, making it ideal for challenging industrial environments such as process control, industrial machinery, instrumentation, agricultural equipment, HVAC systems, and automotive sectors.
The keyed and polarized design ensures proper mating and prevents accidental disengagement, supported by a positive lock mechanism and quick connect/disconnect features that reduce assembly and maintenance time. The crimp termination allows for secure electrical contacts that are easily removable for rapid repair or replacement, enhancing system uptime and field serviceability.
This connector series supports MultiMate size 16 crimp contacts and is CSA, RoHS, and UL 94V-0 approved, meeting strict industrial safety and quality standards. Manufactured in Mexico, it represents a lightweight, cost-effective alternative to metal connectors without compromising durability.
Designed for signal and low power current applications. Panel mount socket with female contacts. UL94V-0 nylon housing for enhanced durability. Wide operating temperature from -55°C to 105°C. Positive lock and quick connect capabilities for secure connections.
Removable contacts supporting rapid repair and maintenance. Suitable for harsh industrial, automation, and transportation environments. Complies with CSA, RoHS, and UL 94V-0 certifications. Explore the range of TE Connectivity Industrial Circular Connectors on EnvMart for reliable industrial and commercial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this connector is 250V.
This model operates reliably within a temperature range of -55°C to 105°C.
It has 37 contacts.
The housing is constructed from UL94V-0 rated nylon, providing high resistance to heat and impact.
This connector uses crimp termination for secure electrical connections.
Yes, it is designed for signal and low power current applications.
This model is a panel mount type connector.
It is certified by CSA, RoHS, and UL 94V-0.
The keyed design prevents incorrect mating and accidental disengagement, ensuring secure connections in harsh environments.
The connector is manufactured in Mexico.
This model belongs to the CPC series.
This connector is a socket type with female contacts.
