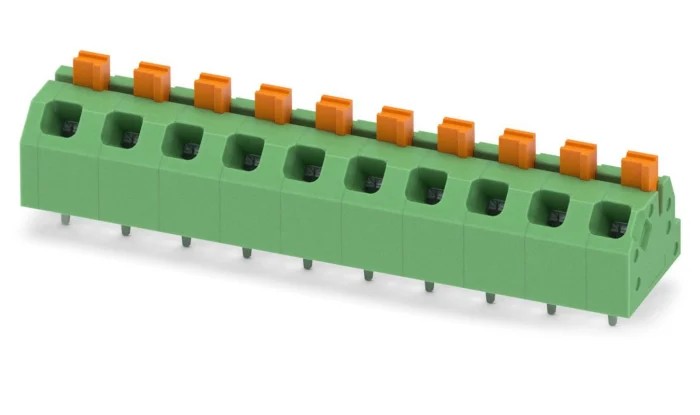

Phoenix Contact PCB Terminal Block SPTAF 1/10-5.0-EL Series Angled Wave Soldering Mount, 10 Contacts, 5 mm Pitch 1862495
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 16A |
| Model | 1862495 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/10-5.0-EL |
| Number of Rows | 2 |
| Pitch | 5mm |
| Standards/Approvals | EU RoHS, cULus Recognised |
| Number of Contacts | 10 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 10, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Features a nominal current rating of 16 A and nominal voltage of 320 V.
- Equipped with push-in spring connection for tool-free, time-saving installation.
- Constructed with robust green polyamide housing for durability.
- Designed with a 2-row configuration and 45° conductor/PCB connection angle.
- Includes finger-operated release button for convenient wire release and maintenance.
- Offers stable and long-term contact force ensuring reliable performance.
- Incorporates integrated test option for quick and convenient testing procedures.
- Complies with EU RoHS and cULus safety and environmental standards.
Product Description
Phoenix Contact 1862495 is a PCB Terminal Block from the SPTAF 1/10-5.0-EL series designed for industrial and electronic applications requiring secure and reliable electrical connections. This angled wave soldering mount terminal block has 10 contact positions, each with a 5 mm pitch, supporting nominal currents up to 16 A and voltages of 320 V. It is built with a green polyamide housing that ensures durability and resistance to environmental factors.
The device features an innovative push-in spring connection mechanism that enables tool-free, fast wiring, reducing installation time. The two-row angled design with a 45° conductor/PCB connection orientation optimizes space on complex printed circuit boards where compactness is essential. For ease of maintenance, the terminal block includes a finger-operated release button that allows quick wire release without tools.
Designed with defined contact force that maintains stable and secure connections over long periods, it also includes an integrated test option to facilitate rapid diagnostics and troubleshooting. This terminal block meets EU RoHS and cULus recognized standards, certifying its compliance with environmental and safety regulations.
Manufactured in Germany, it reflects high-quality engineering. It is suitable for use in industrial automation systems, power supplies, control cabinets, and other electronics requiring robust PCB connectivity solutions. The wave soldering mount method ensures reliable assembly on PCB substrates.
Nominal current rating of 16 A and nominal voltage of 320 V. Push-in spring connection ensures quick tool-free wiring. Green polyamide housing for strong insulation and durability. Two rows with 10 contacts and 5 mm pitch.
Finger-operated release button for easy wire removal. Stable contact force guarantees long-term reliability. Integrated test option for simple electrical testing. Compliant with EU RoHS and cULus standards. Manufactured in Germany ensuring premium quality.
This PCB Terminal Block is ideal for application in electronic components manufacturing, industrial installations, circuit assemblies, and power distribution units. EnvMart customers can confidently select this high-quality Phoenix Contact terminal block for assured performance and compliance in demanding technical environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a nominal current rating of 16 A and a nominal voltage rating of 320 V.
It features 10 contact positions.
The pitch size is 5 mm.
It employs a push-in spring connection method for tool-free wiring.
This model is designed for wave soldering mount.
The housing is constructed from green polyamide, providing insulation and durability.
The conductor/PCB connection direction is angled at 45°.
It complies with EU RoHS and is cULus recognized, ensuring safety and environmental standards are met.
It is manufactured in Germany.
It includes a finger-operated release button for easy wire removal and maintenance.
This terminal block is suitable for use in industrial automation systems, power supplies, control cabinets, and electronic components manufacturing.
The integrated test option allows for quick and convenient testing procedures, facilitating diagnostics and troubleshooting.
