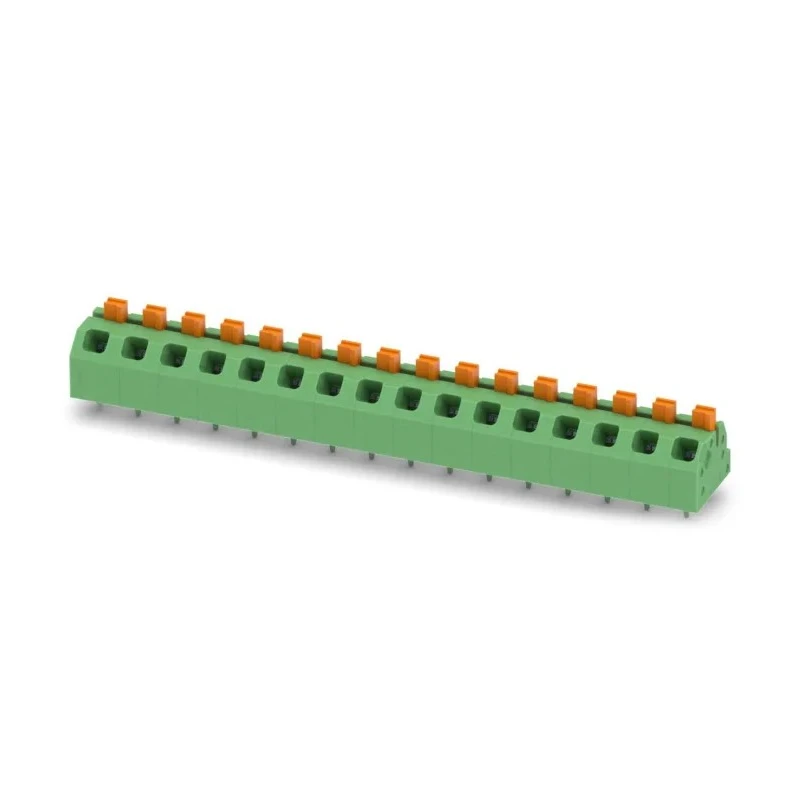

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block 16 Contacts 5 mm Pitch 16A 320V Series SPTAF 1862550
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 16A |
| Model | 1862550 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/16-5.0-EL |
| Number of Rows | 2 |
| Pitch | 5mm |
| Standards/Approvals | cULus Recognised, EU RoHS |
| Number of Contacts | 16 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 16, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Ensures stable long-term contact force with push-in spring connection.
- Equipped with finger-operated release button for easy operation.
- Designed for 45° conductor/PCB connection orientation.
- Small footprint ideal for space-constrained PCB layouts.
- Integrated test option enables quick and convenient testing.
- Constructed with durable polyamide housing material in green color.
- Complies with cULus Recognised and EU RoHS standards.
- Designed specifically for wave soldering mount applications.
Product Description
Phoenix Contact 1862550 is an angled wave soldering mount PCB terminal block featuring 16 contacts with a 5 mm pitch, designed for nominal electrical current of 16 A and nominal voltage of 320 V. This terminal block provides a robust and efficient connection solution using push-in spring technology ensuring sustained contact force over long periods without requiring tools.
The terminal block’s angled 45° conductor/PCB connection orientation facilitates restricted space installations on printed circuit boards. The finger-operated release button enables convenient wire release and connection, improving maintenance efficiency. Constructed using high-quality polyamide material in green color, it withstands demanding industrial environments while complying with cULus recognized and EU RoHS directives.
Its wave soldering mounting system offers secure and reliable attachment to PCBs, suitable for industrial electronics, manufacturing, automation systems, and power distribution solutions. An integrated test option simplifies electrical checks without disassembly, ensuring operational safety and quicker service cycles.
Time-saving push-in spring connection for secure and reliable contacts. Finger-operated release button for convenient operation and maintenance. Compact design suitable for applications with limited PCB space. Complies with the latest industry standards including cULus and EU RoHS.
Durable polyamide housing material ensuring long service life. Wave soldering mount type for strong PCB attachment. Supplied in green color aiding identification and standardization. Manufactured in Germany with strict quality controls.
16 contacts with 5 mm pitch supporting 16 A current and 320 V voltage.
This PCB Terminal Block is an excellent choice for industrial, electrical, automation, and manufacturing environments requiring safe, reliable, and user-friendly terminal connections. Explore additional Phoenix Contact products on EnvMart for your industrial equipment and component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a nominal current rating of 16 A and a nominal voltage rating of 320 V.
The contacts in this model are spaced at a pitch of 5 mm.
It utilizes a push-in spring connection method for secure and reliable contacts.
The conductor/PCB connection is designed for a 45° angled orientation.
The housing material is made of durable polyamide, which is colored green.
It complies with cULus Recognised and EU RoHS standards.
This model features a total of 16 contacts.
It is designed for wave soldering mount applications.
Yes, it includes an integrated test option for quick and convenient electrical checks without disassembly.
This terminal block is manufactured in Germany.
It is suitable for industrial electronics, manufacturing, automation systems, and power distribution solutions.
The finger-operated release button allows for convenient wire release and connection, enhancing maintenance efficiency.
