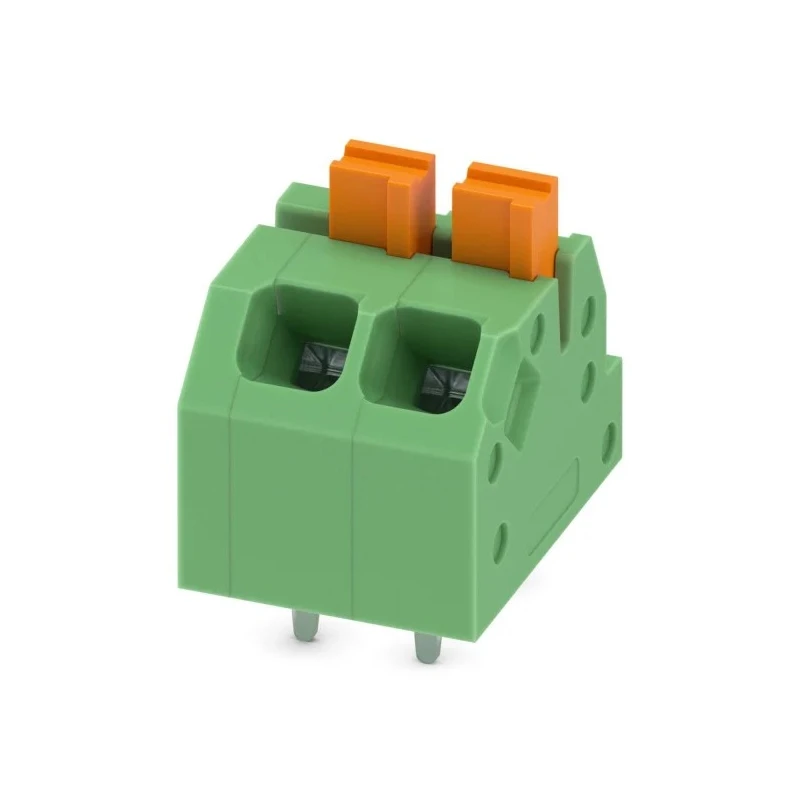

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block 3.5 mm Pitch, 2 Contacts, 16A, 160V, Polyamide Housing 1862042
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 16A |
| Model | 1862042 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 2-3.5-EL |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| Standards/Approvals | EU RoHS, cULus Recognised |
| Number of Contacts | 2 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 2, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Nominal current rating of 16 A ensures efficient current handling.
- Designed with a durable polyamide housing and angled 45° conductor/PCB connection direction for space optimization.
- Features push-in spring connection enabling tool-free, quick and stable wiring.
- Wave soldering mount type provides secure assembly onto PCB boards.
- Complies with EU RoHS and cULus standards ensuring safety and quality compliance.
- Compact size with 2 rows and green color for easy identification.
- Integrated test option allows convenient circuit verification.
- Suitable for high reliability electronic applications in industrial, automation, and electrical equipment.
Product Description
Phoenix Contact 1862042 PCB terminal block is an angled wave soldering mount connector designed for printed circuit board applications requiring secure and robust electrical connections. Featuring a 3.5 mm pitch and 2 contact positions, this terminal block supports nominal currents of 16 A and nominal voltage up to 160 V AC/DC.
The housing is made from high-quality polyamide, providing excellent insulation and durability. It employs a push-in spring connection technology that ensures a stable and tool-free connection, saving installation time and reducing maintenance efforts.
The 45° angled conductor to PCB connection orientation optimizes space on the PCB and facilitates easier wiring access. Its wave soldering mount type guarantees a reliable mechanical and electrical bond to the circuit board.
This terminal block complies with EU RoHS environmental regulations and holds cULus recognition, signifying adherence to stringent safety standards. The green color assists quick visual identification among components.
It is particularly suited for industrial control systems, automation equipment, power supplies, and various electronic instrumentation where dependable PCB wiring solutions are essential. Its compact size and efficient connection method make it ideal for space-critical assemblies.
Nominal current: 16 A. Nominal voltage: 160 V AC/DC. Pitch: 3.5 mm. Number of contacts: 2. Housing material: Polyamide. Orientation: Angled at 45° connection. Mount type: Wave soldering mount. Connection method: Push-in spring connection.
Approvals: EU RoHS, cULus recognized. Discover more PCB Terminal Blocks and components from Phoenix Contact in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal current rating of this terminal block is 16 A.
This model supports a nominal voltage of 160 V AC/DC.
The pitch size of this terminal block is 3.5 mm.
It features 2 contact positions.
This terminal block employs a push-in spring connection method for easy and stable wiring.
The conductor to PCB connection is angled at 45° for optimized space utilization.
It uses a wave soldering mount type for secure assembly onto PCB boards.
The housing is made from polyamide, providing excellent insulation and durability.
It complies with EU RoHS regulations and is cULus recognized, ensuring safety and quality standards.
The terminal block is green, which aids in quick visual identification among components.
It is suitable for industrial control systems, automation equipment, power supplies, and electronic instrumentation.
The country of origin for this terminal block is Poland.
