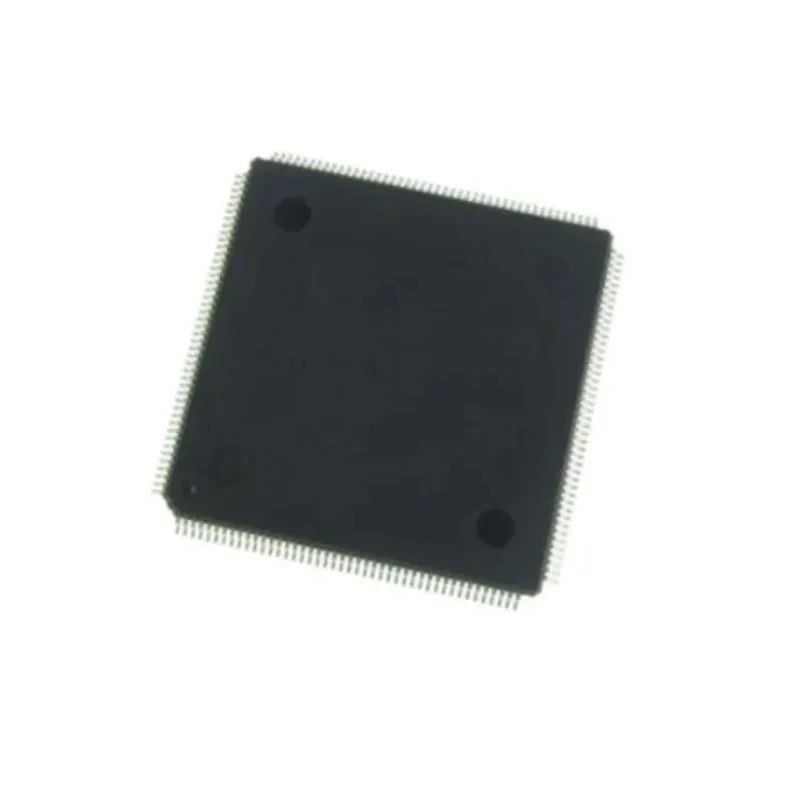

Microchip 32 bit microAptiv CPU Microcontroller 200 MHz 2MB FLASH 176-Pin LQFP PIC32MZ2064DAG176-I/2J
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Height | 1.45mm |
| Length | 22mm |
| Model | PIC32MZ2064DAG176-I/2J |
| Width | 22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Device/Host/OTG |
| Ram size | 640kB |
| Pin Count | 176 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.2V |
| Device Core | microAptiv CPU |
| Program Memory Size | 2MB |
| Maximum Clock Frequency | 200MHz |
| Number of Programmable I/Os | 120 |
| Analogue Comparators | 2 |
| Number of Timers | 9 |
| Instruction Set Architecture | MIPS32 |
| ADCs | 45 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 200 MHz for efficient processing.
- Includes 2MB of FLASH program memory and 640KB of SRAM memory.
- Features a surface mount package type LQFP with 176 pins for versatile board integration.
- Supports a wide operating voltage range of 2.2V to 3.6V and temperature range from -40°C to 85°C.
- Equipped with 120 programmable I/Os and 9 timers for multiple device interfacing.
- Contains advanced peripherals including 45-channel 12-bit ADCs, CAN, HS USB, and Ethernet MAC.
- Utilizes the MIPS32 instruction set architecture with microAptiv CPU core and memory management unit.
- Complies with the automotive AEC-Q100 standard, suitable for rigorous automotive applications.
Product Description
Microchip PIC32MZ2064DAG176-I/2J is a high-performance 32 bit microAptiv CPU Microcontroller designed for advanced embedded applications. Operating at 200 MHz with 2MB of FLASH memory and 640KB SRAM, it supports demanding processing requirements and complex firmware implementations. Packaged in a 176-pin LQFP surface mount form factor, it offers a compact footprint suitable for both industrial and automotive embedded systems.
This microcontroller features a broad supply voltage range of 2.2V to 3.6V and operates reliably within temperatures ranging from -40°C to 85°C, making it resilient in harsh environments. The device core is based on the MIPS32 architecture with added memory management unit support for optimal embedded OS execution and enhanced code efficiency through microMIPS mode.
With 120 programmable input/output pins and 9 timers, it provides extensive interfacing capabilities. Its advanced peripherals include a 45-channel 12-bit ADC module capable of 18 MSPS, high-speed USB Device/Host/OTG functionality, CAN communication, and a 10/100 Mbps Ethernet MAC with MII and RMII interfaces. These components enable complex data acquisition, communication, and control in industrial automation and automotive systems.
The microcontroller is compliant with the AEC-Q100 automotive standard, ensuring high reliability in automotive-grade applications. Physical dimensions are 22 mm by 22 mm with a profile height of 1.45 mm, enabling integration into compact system designs.
Applications for the PIC32MZ2064DAG176-I/2J include industrial automation, automotive control systems, graphical user interface designs leveraging integrated graphics capabilities, and other embedded systems demanding high performance and robust peripheral support.
Operates at 200 MHz using microAptiv CPU core providing up to 330 DMIPS. Includes 2MB Flash memory and 640KB SRAM memory with dual-panel flash for live updates. 12-bit, 18 MSPS, 45-channel ADC module supports precise analog signal acquisition.
Communication interfaces include CAN, UART, I2C, PMP, EBI, SQI, and SPI/I2S for audio processing. Supports high-speed USB Device/Host/OTG and Ethernet MAC with MII and RMII interface. Advanced memory protection and embedded OS support with memory management unit.
Compliant with automotive AEC-Q100 for quality and reliability in automotive environments.
Enhance your embedded system design with the Microchip PIC32MZ2064DAG176-I/2J microcontroller for superior performance, connectivity, and industrial-grade reliability. Explore more Microcontrollers and semiconductor components at EnvMart for your electronics projects and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 200 MHz, providing efficient processing capabilities for demanding applications.
It includes 2MB of FLASH program memory, allowing for complex firmware implementations.
The operating voltage range is from 2.2V to 3.6V, making it suitable for various power supply configurations.
This model features 120 programmable I/Os, enabling extensive interfacing capabilities for various applications.
It operates reliably within a temperature range of -40°C to 85°C, suitable for harsh environmental conditions.
It is packaged in a 176-pin LQFP (Low-Profile Quad Flat Package), which is suitable for surface mounting.
It includes advanced peripherals such as a 45-channel 12-bit ADC, CAN, HS USB, and Ethernet MAC, facilitating complex data acquisition and communication.
The physical dimensions are 22 mm x 22 mm with a height of 1.45 mm, allowing for compact system integration.
It utilizes the MIPS32 instruction set architecture, enhancing code efficiency and performance.
It complies with the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
This microcontroller features 9 timers, which can be used for various timing and control applications.
It supports multiple communication interfaces including USB Device/Host/OTG, CAN, UART, I2C, and SPI/I2S, among others.
