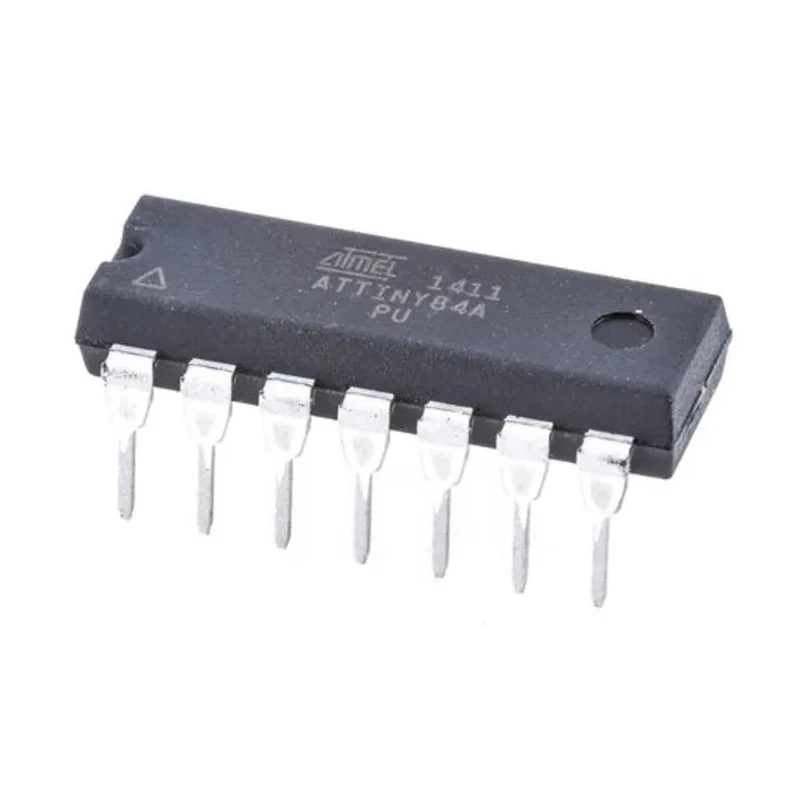

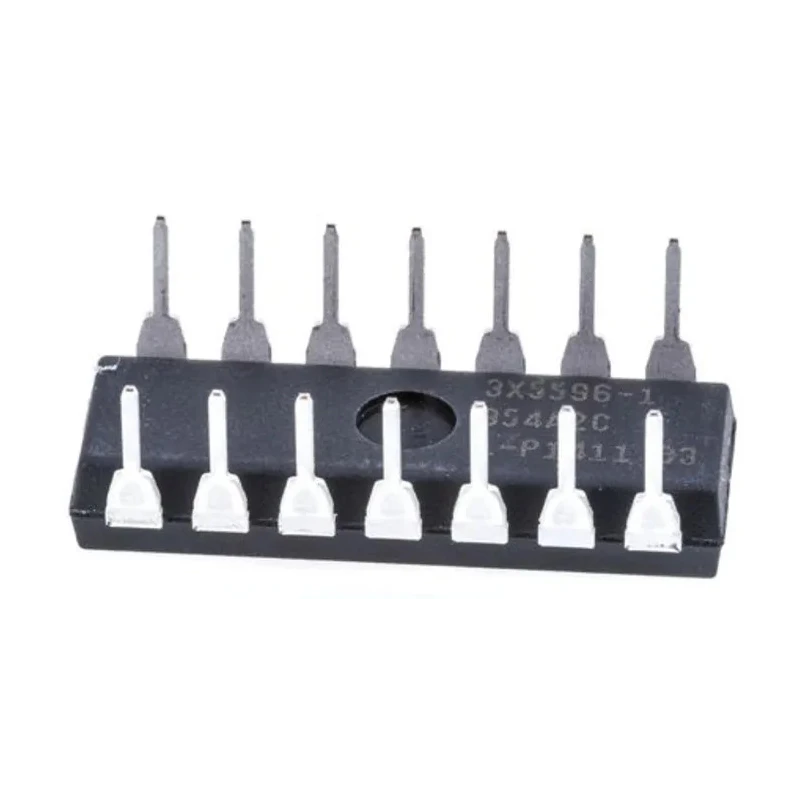

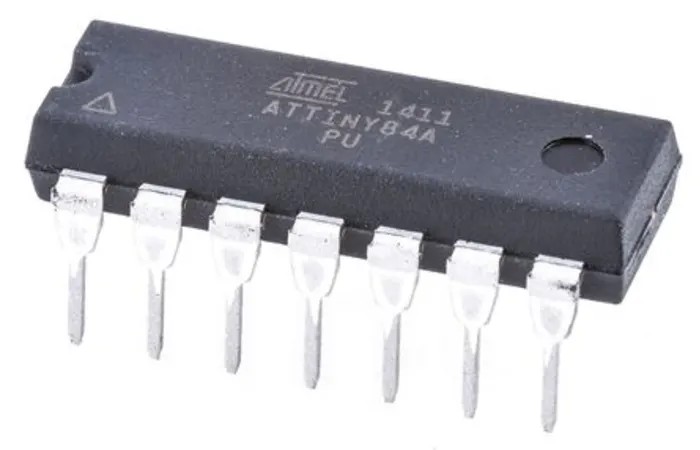

Microchip tinyAVR Microcontroller 8-bit AVR 20MHz 8kB Flash PDIP ATTINY84A-PU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 19.68mm |
| Model | ATTINY84A-PU |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | tinyAVR |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Interface Type | SPI |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 1 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- 8-bit AVR tinyAVR microcontroller for versatile embedded applications.
- Operates at a maximum clock frequency of 20 MHz for responsive performance.
- Offers 8kB Flash program memory for code storage.
- PDIP package type with through-hole mounting enhances compatibility with prototyping boards.
- 14-pin configuration supports integration into a range of designs.
- Provides 12 programmable I/O pins for flexible interfacing.
- Features SPI interface for serial communication.
- RISC instruction set architecture for efficient processing.
Product Description
Microchip ATTINY84A-PU is a high-performance 8-bit AVR tinyAVR microcontroller designed for embedded and industrial electronics applications. This device is part of the tinyAVR series, featuring compact form factor and robust functionality, making it ideal for use where space and efficiency are critical. With a maximum clock frequency of 20 MHz, it ensures responsive operation for demanding tasks.
The microcontroller offers 8kB of Flash program memory, allowing substantial code storage for various control and signal processing routines. Its PDIP package type enables straightforward through-hole mounting, perfect for prototyping and integration onto standard development boards.
8-bit AVR microcontroller, optimized for performance and energy efficiency. 14-pin PDIP package supports easy soldering and replacement. 12 programmable I/O pins for flexible interface with external components. SPI interfacing allows smooth serial communication with peripheral devices.
RISC architecture enhances processing speed and code efficiency.
The ATTINY84A-PU has a robust operating voltage range from 1.8V to 5.5V, allowing compatibility with a variety of power supplies in industrial and commercial settings. Its broad temperature tolerance from -40°C to 85°C ensures reliability in challenging environments, including laboratory, manufacturing, and automation applications.
Additional features include 8 ADC channels (10 bit resolution), 512bit RAM size, two timers, and an on-chip analogue comparator, catering to versatile industrial needs such as sensor interface, process control, and embedded system prototyping.
This microcontroller is applicable in industrial controls, laboratory instrumentation, commercial automation, HVAC systems, and electronic device development where reliable and efficient processors are required. Package contents: Supplied in a tube for easy machine insertion in production workflows.
Explore more Microcontrollers and embedded solutions from Microchip in EnvMart's electronics & semiconductor section.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz, ensuring responsive performance for embedded applications.
It offers 8kB of Flash program memory for code storage, suitable for various control and signal processing routines.
The operating voltage range is from 1.8V to 5.5V, allowing compatibility with a variety of power supplies.
This microcontroller features 12 programmable I/O pins, providing flexible interfacing options with external components.
It comes in a PDIP package type, which supports through-hole mounting, making it easy to integrate into prototyping boards.
The ATTINY84A-PU has a broad temperature tolerance ranging from -40°C to 85°C, ensuring reliability in challenging environments.
It supports SPI (Serial Peripheral Interface) for smooth serial communication with peripheral devices.
This model includes 8 ADC channels with 10-bit resolution, catering to various industrial needs such as sensor interfacing.
The dimensions of this microcontroller are 4.95 mm in height, 19.68 mm in length, and 7.11 mm in width.
It has a RAM size of 512 bits, which supports its processing capabilities for embedded applications.
The ATTINY84A-PU is equipped with two timers, which can be utilized for various timing functions in applications.
It utilizes a RISC (Reduced Instruction Set Computing) instruction set architecture, enhancing processing speed and code efficiency.
