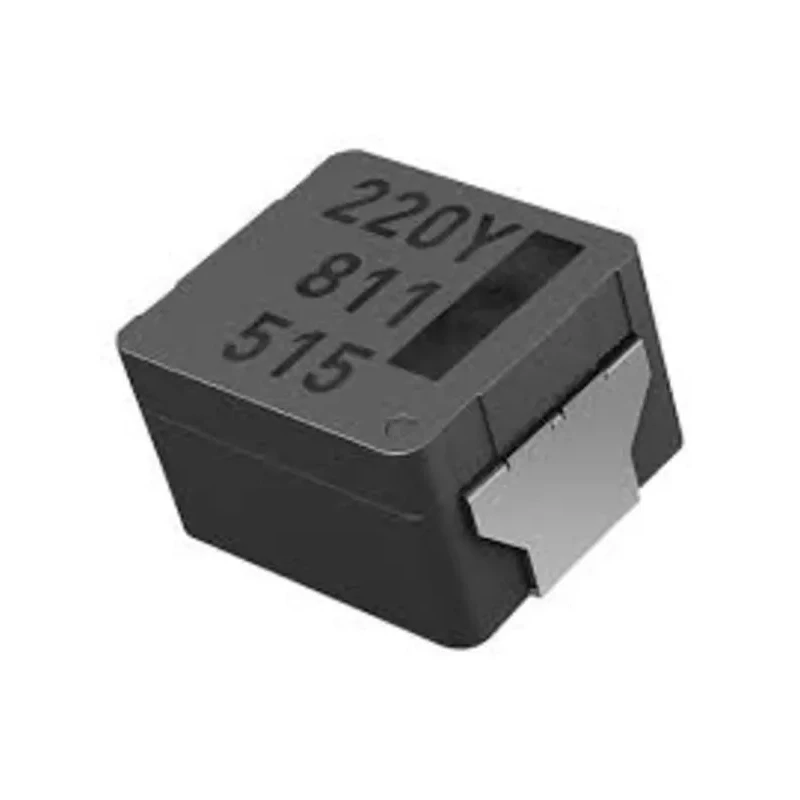

Panasonic Shielded Power Choke Coil, Metal Composite Core, 14μH ±20%, 11.2A, Automotive, Surface Mount ETQP6M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 6mm |
| Length | 10.9mm |
| Model | ETQP6M |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | ETQP6M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 14μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 11.2A |
| Pin Count | 2 |
| Maximum DC Resistance | 30.8mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Robust shielded construction for high reliability under vibration.
- Metal composite core maintains inductance stability across temperature ranges.
- 14μH inductance with ±20% tolerance delivers precise performance.
- Maximum DC current handling up to 11.2A supports power-intensive applications.
- Wirewound and moulded design for enhanced durability.
- AEC-Q200 compliant, suitable for automotive and industrial use.
- Low DC resistance (30.8mΩ) minimizes power losses and boosts efficiency.
- Surface mount termination style ideal for automated PCB assembly.
Product Description
Panasonic ETQP6M150KLC is a shielded power choke coil engineered for automotive and industrial electronics, featuring a wirewound construction with metal composite core. Designed for superior robustness and performance, it delivers an inductance value of 14μH ±20% and handles a maximum DC current of 11.2A.
Robust shielded construction for high reliability under vibration. Metal composite core maintains inductance stability across temperature ranges. 14μH inductance with ±20% tolerance delivers precise performance. Maximum DC current handling up to 11.2A supports power-intensive applications.
Wirewound and moulded design for enhanced durability. AEC-Q200 compliant, suitable for automotive and industrial use. Low DC resistance (30.8mΩ) minimizes power losses and boosts efficiency. Surface mount termination style ideal for automated PCB assembly.
Its construction ensures excellent inductance stability and high bias current thanks to the ferrous alloy magnetic material used. The coil sustains its characteristics under high heat, operating up to 150°C, including self-heating effects, and is also RoHS compliant for environmental safety.
The Panasonic ETQP6M series is specifically designed for automotive applications subject to severe reliability demands such as engine and power management, and can be applied in industrial circuits requiring high efficiency and low loss. The shielded and moulded configuration minimizes audible buzz and offers resilience under mechanical stress.
It comes packaged in tape & reel for ease of integration in modern surface mount PCB processes, with dimensions of 10.9mm length, 6mm depth and height, and accommodates a wide temperature range from -40°C to 150°C. With its superior qualifications, it is a trusted choice for power supply and DC-DC converter designs in automotive, industrial, and embedded systems.
Explore more Panasonic surface mount inductors and high-reliability components in the Surface Mount Inductors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 14μH with a tolerance of ±20%.
It can handle a maximum DC current of 11.2A, making it suitable for power-intensive applications.
This unit can operate within a temperature range of -40°C to 150°C.
The maximum DC resistance is 30.8mΩ, which helps minimize power losses.
It features a wirewound construction with a metal composite core, providing stability and durability.
Yes, it is AEC-Q200 compliant, making it suitable for automotive applications.
The termination style is surface mount, which is ideal for automated PCB assembly.
The dimensions are 10.9mm in length, 6mm in depth, and 6mm in height.
It is packaged in tape & reel for ease of integration into surface mount processes.
The maximum self-resonant frequency is 100kHz.
The core is made of metal composite material, which helps maintain inductance stability across temperature ranges.
It is suitable for automotive and industrial applications, particularly in power supply and DC-DC converter designs.
