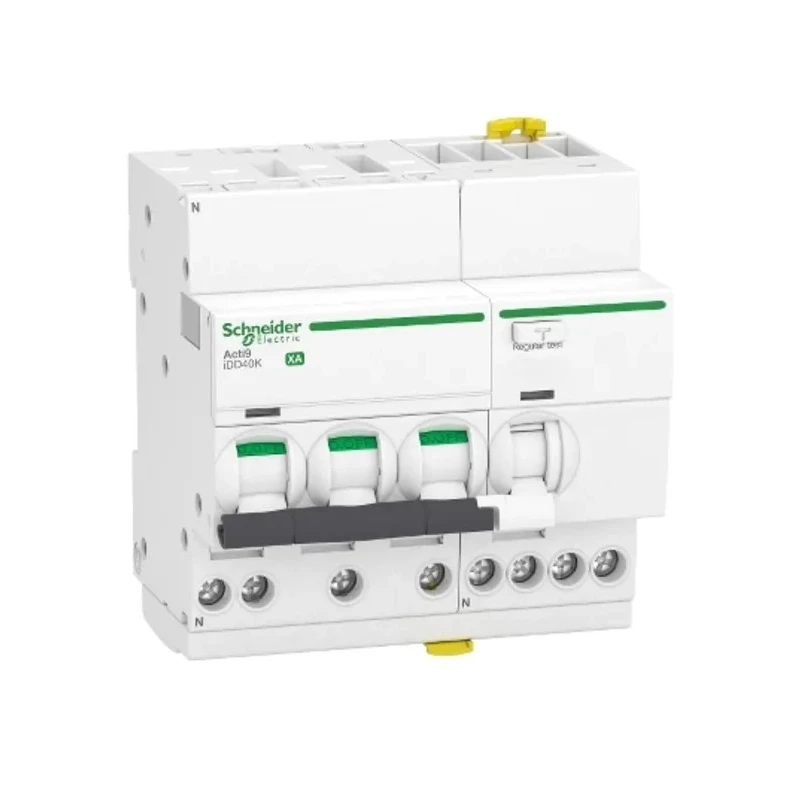

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 16A, 3-Pole, 300mA, DIN Rail, 400V AC A9DS5716
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 93mm |
| Model | A9DS5716 |
| Depth | 73mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | ACTI9 iDD40K XA |
| Terminal type | Tunnel |
| Breaking Capacity | 4.5kA |
| Number of Poles | 3 |
| Standards/Approvals | EN/IEC 60947-2, RoHS |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Earth Leakage Protection Type | AC |
Key Features
- Features 16A current rating for reliable circuit protection.
- Provides overload and earth leakage protection with 300mA trip sensitivity.
- Three-pole configuration suitable for distribution and residential applications.
- Thermal-magnetic tripping mechanism ensures safety against short circuits and overloads.
- Compliant with EN/IEC 60947-2 and RoHS standards for quality assurance.
- Mounts easily on DIN rail for quick installation.
- Reset actuator toggle switch for simple control and operation.
- Rated for 400V AC and breaking capacity of 4.5kA.
Product Description
Schneider Electric A9DS5716 Residual Current Circuit Breaker delivers advanced overload and earth leakage protection, with a 16A current rating and 3-pole configuration. Designed for integration into distribution panels, the device is ideal for residential, commercial, and industrial installations requiring robust circuit protection.
Engineered to protect circuits against overloads and short circuits, the RCBO features a 300mA trip sensitivity for rapid response to earth leakage conditions, minimizing hazards and ensuring operational safety. The thermal-magnetic tripping mechanism provides dependable performance and longevity, with an electrical durability rated for 20,000 cycles.
Its Type C tripping characteristics and AC earth leakage protection make it suitable for standard distribution networks and specialized equipment. Installation is fast and secure with DIN rail mounting, and the toggle switch actuator simplifies reset and control actions for maintenance and operation.
Features 16A current rating for reliable circuit protection. Provides overload and earth leakage protection with 300mA trip sensitivity. Three-pole configuration suitable for distribution and residential applications. Thermal-magnetic tripping mechanism ensures safety against short circuits and overloads.
Compliant with EN/IEC 60947-2 and RoHS standards for quality assurance. Mounts easily on DIN rail for quick installation. Reset actuator toggle switch for simple control and operation. Rated for 400V AC and breaking capacity of 4.5kA.
Sturdy design suited for humid environments up to 95% at 55°C.
Compact dimensions of 73mm depth, 90mm width, and 93mm height support easy integration into electrical cabinets. Tunnel terminal types offer secure electrical connections, and the product is padlockable for additional safety. The A9DS5716 RCBO is a part of Schneider Electric's ACTI9 iDD40K XA series, recognized for reliability and performance.
Green premium classed product, suitable for power distribution networks, overcurrent protection, and residential safety systems. Typical applications include electrical panels, switchboards, industrial workshops, and building infrastructure.
Explore more circuit protection products and Schneider Electric solutions at EnvMart for industry-ready performance and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The residual current circuit breaker has a current rating of 16A, providing reliable circuit protection.
It features a trip sensitivity of 300mA, allowing for rapid response to earth leakage conditions.
This model is a 3-pole configuration, suitable for various distribution applications.
The breaking capacity of the A9DS5716 is rated at 4.5kA, ensuring effective protection against overloads and short circuits.
It employs a thermal-magnetic tripping mechanism, which ensures safety against short circuits and overloads.
The dimensions are 93mm in height, 90mm in width, and 73mm in depth, facilitating easy integration into electrical cabinets.
The rated AC voltage for the A9DS5716 is 400V AC, making it suitable for standard electrical systems.
It complies with EN/IEC 60947-2 and RoHS standards, ensuring quality assurance and safety.
It mounts easily on a DIN rail, allowing for quick and secure installation.
The terminal type is tunnel, which offers secure electrical connections.
It is suitable for use in electrical panels, switchboards, industrial workshops, and building infrastructure.
The reset actuator type is a toggle switch, simplifying control and operation during maintenance.
