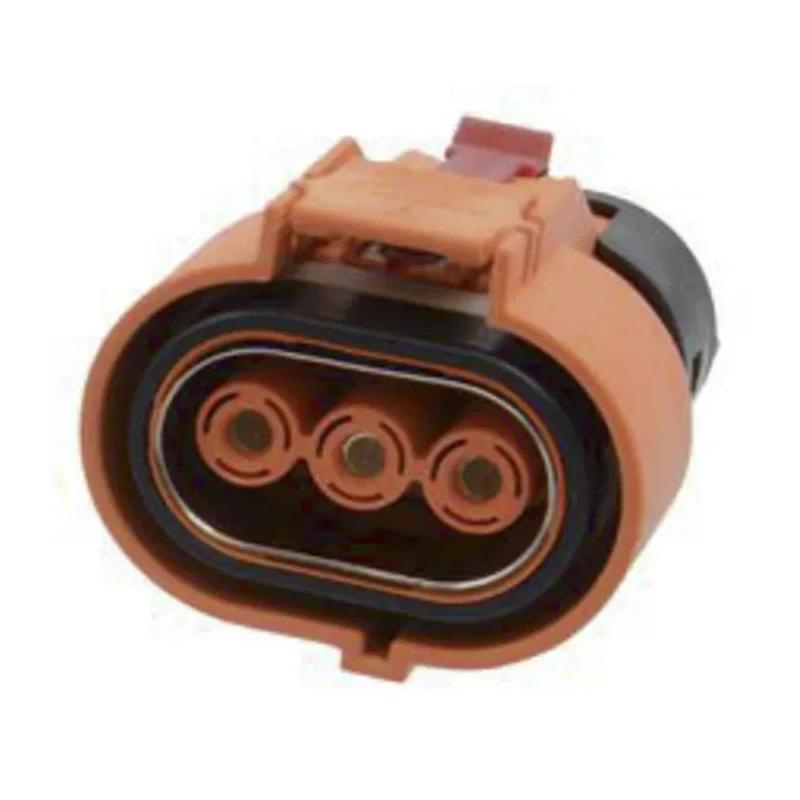

Amphenol Industrial Epower Lite RADSOK Plug with HVIL EV Connector Male, 70A, 800V, Cable Mount ELP3A02 / C10-737486-3AS2
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 70A |
| Height | 40.8mm |
| Model | ELP3A02 / C10-737486-3AS2 |
| Depth | 61.4mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Plug with HVIL |
| Width | 49.8mm |
| Mount Type | Cable |
| Housing Material | Plastic |
| Series | Epower Lite |
| Waterproof | IP67 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 3.6mm |
| Number of Rows | 1 |
| Wire size | 4mm² |
| Operating Voltage | 800V |
| For Use With | 3 Position ePower-Lite Receptacle with HVIL |
| Standards/Approvals | IEC 60529, UL 94 V-0 |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
| Flammability | UL 94V-0 |
| Touch Proof | IEC 60529 |
Key Features
- Compact and lightweight field-installable connector for EV and hybrid systems.
- Supports high current up to 70A and operating voltage up to 800V.
- Cable mount male plug with waterproof IP67 and touch-proof features.
- Offers durability over 100 mating cycles and robust temperature resistance (-40°C to 125°C).
- Crimp termination with 3 contacts and 1 row; wire size 4mm².
- Meets IEC 60529 and UL 94V-0 standards for safety and flammability.
- Plastic housing in orange color with straight orientation.
- Designed for use with 3-position ePower-Lite receptacle with HVIL.
Product Description
Amphenol Industrial introduces the ELP3A02 / C10-737486-3AS2 Epower Lite RADSOK Plug with HVIL, a premium electric vehicle (EV) connector engineered for high-current automotive applications. This cable-mounted plug offers reliable performance with a 70A current rating and an impressive 800V operating voltage, making it suitable for demanding environments in electric and hybrid vehicles.
Featuring RADSOK technology, the connector delivers low-resistance, higher amperage, minimal temperature rise, and efficient voltage drop for robust power distribution. The plug is designed with a compact, lightweight plastic housing and distinct orange coloration, facilitating easy installation and enhanced safety in critical automotive circuits.
The Epower Lite connector includes 3 female contacts in a single row, supporting wire sizes up to 4mm² and employing crimp termination for secure connectivity. The product is field installable and repairable, boasting durability for over 100 mating cycles. It is fully waterproof with an IP67 rating and touch-proof as per IEC 60529, ensuring protection against dust and moisture during operation.
This male connector is straight-oriented and incorporates HVIL (High Voltage Interlock Loop) to provide an added layer of safety. Its CPA (Connector Position Assurance) prevents mis-mating, maintaining consistent electrical integrity. The temperature resistance spans from -40°C to 125°C, accommodating a wide range of industrial and automotive climates.
Compact and lightweight field-installable connector for EV and hybrid systems. Supports high current up to 70A and operating voltage up to 800V. Cable mount male plug with waterproof IP67 and touch-proof features. Offers durability over 100 mating cycles and robust temperature resistance (-40°C to 125°C).
Crimp termination with 3 contacts and 1 row; wire size 4mm². Meets IEC 60529 and UL 94V-0 standards for safety and flammability. Plastic housing in orange color with straight orientation. Designed for use with 3-position ePower-Lite receptacle with HVIL.
Ideal for renewable energy and automotive applications.
This connector is optimally used in EV manufacturing, commercial fleet electrification, and renewable energy installations where reliable high-voltage connections are essential. Cable mount flexibility and high safety ratings make the Epower Lite a preferred choice among industrial professionals for automotive power distribution systems.
Explore more EV Connectors and Amphenol Industrial solutions in the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 70A, making it suitable for high-current automotive applications.
The operating voltage for this connector is up to 800V, which is ideal for electric and hybrid vehicle systems.
It has an IP67 rating, ensuring it is waterproof and protected against dust and moisture during operation.
The connector can operate within a temperature range of -40°C to 125°C, accommodating various environmental conditions.
This connector features 3 female contacts arranged in a single row, designed for secure connectivity.
It employs crimp termination, which ensures a secure and reliable connection for the wires.
This model supports wire sizes up to 4mm², suitable for high-current applications.
The housing is made of plastic, which contributes to its lightweight and compact design.
It is designed for use with a 3-position ePower-Lite receptacle that includes HVIL (High Voltage Interlock Loop).
It meets IEC 60529 and UL 94V-0 standards for safety and flammability, ensuring compliance with industry regulations.
The housing of this model is orange, which aids in easy identification and enhances safety in automotive applications.
It is designed to withstand over 100 mating cycles, ensuring longevity and reliability in use.
