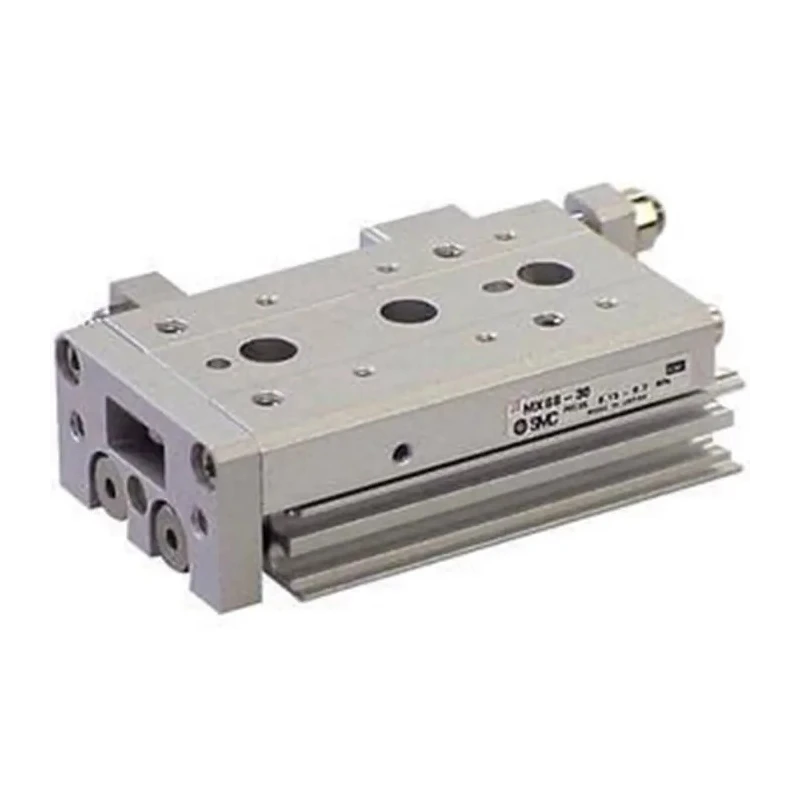

SMC Pneumatic Guided Cylinder 8mm Bore, Double Acting, Aluminium Alloy, Slide Bearing, Stroke 20mm MXS8-20AS

SMC MXS8-20AS Pneumatic Guided Cylinder combines advanced engineering with compact dimensions for precise linear actuation in industrial environments. Featuring an 8mm bore and a stroke length of 20mm, this double acting pneumatic cylinder is ideal for applications where precise repetitive motion is necessary and space is limited.

The cylinder is equipped with a durable aluminium alloy body, ensuring longevity and resistance to corrosion. The integrated slide bearing provides smooth, controlled movement, enabling high-speed piston operation up to 500mm/s. Double acting design allows for forceful operation in both directions, making it suitable for complex automation tasks.

Features a robust aluminium alloy body for durability. Provides double acting operation, ideal for industrial automation. Includes slide bearing guide type for smooth actuation. Operates at a maximum pressure of 0.7 Mpa for reliable performance.

Rubber bumper cushioning helps absorb shocks during operation. Adaptable with through hole mounting for versatile installation. Works within a temperature range from -10°C to 60°C. Compact dimensions: 61mm length, 40mm width, 24mm height.

Designed for high piston speed up to 500mm/s. Suitable for industrial, laboratory and automation environments.

The product includes slide table integrated with cross roller bearings and rails to isolate load bearing from dual rods and piston seals for precise repeatability. Stroke adjuster options allow for accurate positioning and minimized mounting clearances. PTFE grease or food grade grease versions available for specialized applications.

Rubber bumpers and optional shock absorbers improve machine longevity, offering protective cushioning during high-speed actuation. Auto-switch capability supports integration into automated control systems. End lock options available to ensure safety in the event of air pressure loss.

MXS8-20AS is RoHS compliant and manufactured in Japan, upholding stringent quality standards. Its compact build (61mm x 40mm x 24mm) ensures easy integration into tight assemblies. With through hole mounting and an M5 piston rod thread, it is adaptable for diverse machinery setups in factories, labs, and research facilities.

Common applications include assembly lines, automated test equipment, packaging machinery, and laboratory automation. Suitable for precision positioning, repeatable motion and light load handling within the pneumatic range.
