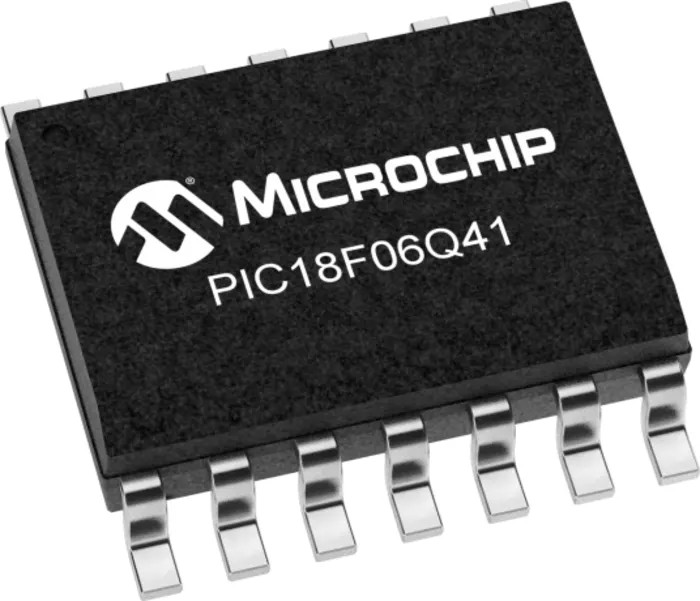

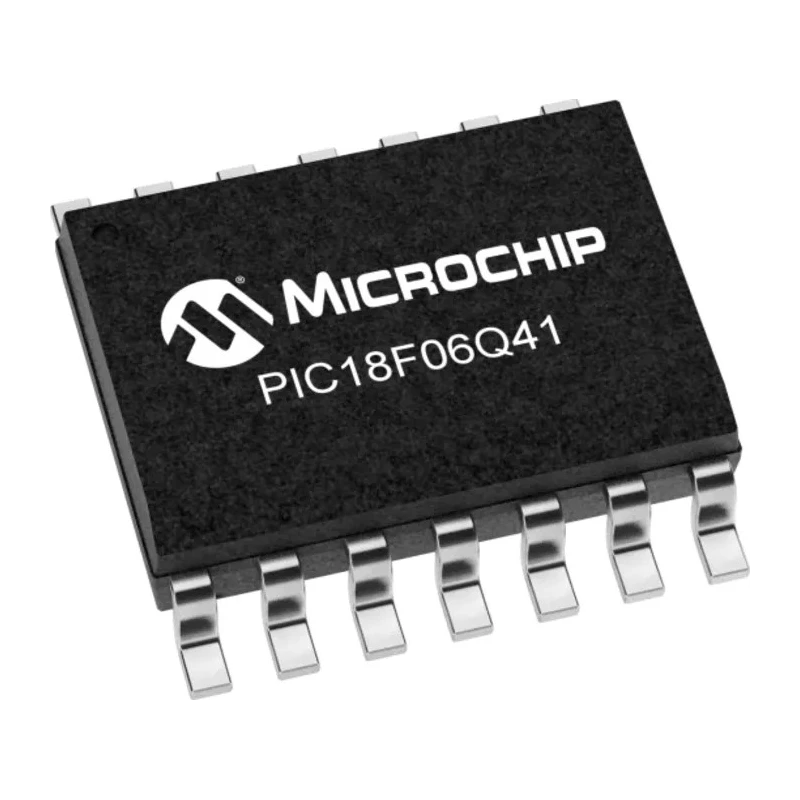

Microchip PIC18F06Q41-I/SL 8-bit PIC18F Microcontroller, 64 MHz, 64kB FLASH, 14-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC18F06Q41-I/SL |
| Series | PIC18F06Q41 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Interface Type | I2C, SPI, UART |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC18F |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 4kB |
| Number of Timers | 5 |
| Instruction Set Architecture | Harvard |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
| DACs | 2 x 8 Bit |
Key Features
- Operates at a maximum clock frequency of 64 MHz.
- Equipped with 64kB FLASH memory for flexible program storage.
- 14-pin SOIC package suitable for compact and modular circuit designs.
- Supports multiple interfaces, including I2C, SPI, and UART communication.
- Includes on-chip 12-bit ADC and two 8-bit DACs for precise analog output.
- Features an operational amplifier and two analogue comparators for advanced analog processing.
- Offers up to 12 programmable I/Os for flexible hardware control.
- Supports operation in harsh environments, with a temperature range from -40°C to 125°C.
Product Description
Microchip PIC18F06Q41-I/SL 8-bit PIC18F Microcontroller is a compact, high-performance solution designed for versatile embedded applications in industrial, laboratory, and commercial settings. Boasting an advanced Harvard architecture, the device operates at a maximum clock frequency of 64 MHz, delivering reliable and fast processing capabilities for demanding tasks.
64kB FLASH program memory allows for flexible and robust code development, supporting a wide range of software applications. The 14-pin SOIC package ensures easy installation and integration into existing electronic assemblies and PCBs.
With built-in interfaces such as I2C, SPI, and UART, the microcontroller provides seamless communication for various peripheral devices. An on-chip 12-bit ADC and dual 8-bit DACs ensure high-precision analog input and output, ideal for sensor-driven and control systems.
The integrated operational amplifier and two analog comparators support complex analog signal processing requirements. 12 programmable I/Os allow engineers and designers to customize hardware logic and optimize device performance for specific applications.
Operating in a wide temperature range from -40°C to 125°C, the PIC18F06Q41-I/SL is suitable for use in harsh outdoor and demanding industrial environments.
This microcontroller is a preferred choice for automotive, process control, HVAC, laboratory instruments, and commercial electronics, balancing power efficiency with extensive peripheral features. Notably, its 4kB RAM and 4kB expanded memory cater to real-time data-intensive tasks. The Harvard instruction set architecture further enhances execution efficiency and reliability.
Package type SOIC facilitates modular designs and simplifies PCB layouts, supporting scalable manufacturing and rapid prototyping. The device adheres to RoHS standards for environmental compliance and safety.
Explore related Microchip microcontrollers in the 'Microcontroller' category to discover optimal solutions for custom embedded projects and advanced industrial applications with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It features a program memory size of 64kB, allowing for flexible code development.
This microcontroller supports I2C, SPI, and UART communication interfaces.
The operating temperature range is from -40°C to 125°C, making it suitable for harsh environments.
It offers up to 12 programmable I/Os for flexible hardware control.
The PIC18F06Q41-I/SL comes in a 14-pin SOIC package, suitable for compact designs.
It includes an on-chip 12-bit ADC and two 8-bit DACs for precise analog input and output.
The RAM size is 4kB, which supports real-time data processing tasks.
This model integrates five timers for various timing applications.
It adheres to RoHS standards for environmental compliance and safety.
The minimum supply voltage is 1.8V, and the maximum supply voltage is 5.5V.
It utilizes the Harvard instruction set architecture, enhancing execution efficiency.
