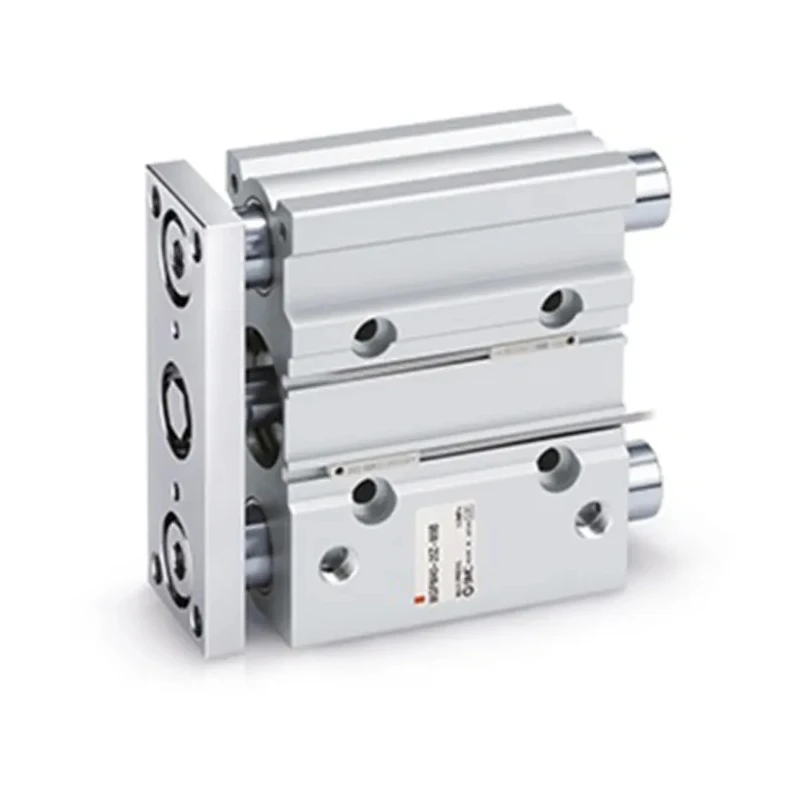

SMC MGPL12-30Z Guide Cylinder, Compact, Double Acting, 12mm Bore, 30mm Stroke, Aluminium, Ball Bushing

Free Delivery in India | Lowest Global Shipping Charges

SMC MGPL12-30Z Guide Cylinder, Compact, Double Acting, 12mm Bore, 30mm Stroke, Aluminium, Ball Bushing



Category Pneumatic Guided Cylinder Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Model	MGPL12-30Z
Gross Weight	300g
Series	MGPL
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	30mm
Bore Diameter	12mm
Rod Type	Double Acting
Action Type	Double Acting
Cushioning Type	Rubber Bumper
Guide Type	Ball Bushing
Maximum Piston Speed	500 mm/s
Piston Rod Thread Size	M5 x 0.8

Key Features

Double acting guide cylinder for precise linear actuation.
12mm bore diameter supports repeatable force delivery.
30mm stroke enables short-travel positioning tasks.
Aluminium alloy body reduces weight for easy integration.
Ball bushing guide provides smooth lateral stability.
Rubber bumper cushioning minimises end-of-stroke impact.
Maximum operating pressure up to 1 MPa for industrial reliability.
Works in temperatures between -10°C and 60°C.

Product Description

SMC MGPL12-30Z Guide Cylinder offers compact, guided linear actuation suitable for automation and mechanical systems. Designed for applications such as pick-and-place stations, clamp and hold functions in test rigs, component orientation control with feeders, and light tooling actuation in robotic cells, this cylinder blends space-efficiency with precision.

With a 12mm bore diameter and 30mm stroke, the MGPL12-30Z delivers repeatable force for short-travel positioning. The double acting mechanism ensures smooth motion and supports high cycle rates, with maximum permitted piston speed of 500 mm/s to maintain performance during rapid operations.

Double acting pneumatic cylinder for guided linear movement. Aluminium alloy body ensures reduced mass for dynamic applications. Ball bushing guide aids in lateral stability and accurate motion. Rubber bumper cushioning decreases shocks at the stroke ends.

Cylinder operates reliably up to 1 MPa supply pressure, compatible with industrial pneumatic sources. Wide operating temperature range, from -10°C to 60°C, suitable for many indoor factory environments. M5 x 0.8 piston rod thread allows secure and versatile mounting.

The MGPL12-30Z is ideal for integration in automated assemblies, offering improved control and repeatability. Its compact form factor and robust construction make it an optimal solution for industrial machinery, laboratory automation, manufacturing lines, and precision handling tasks.

Industrial, laboratory, and manufacturing contexts benefit from its accuracy and resilience. Applications include pick-and-place automation, testing rigs, robotic cell tooling, and component orientation tasks. For more products in the SMC and pneumatic cylinder category, browse EnvMart's extensive selection.
