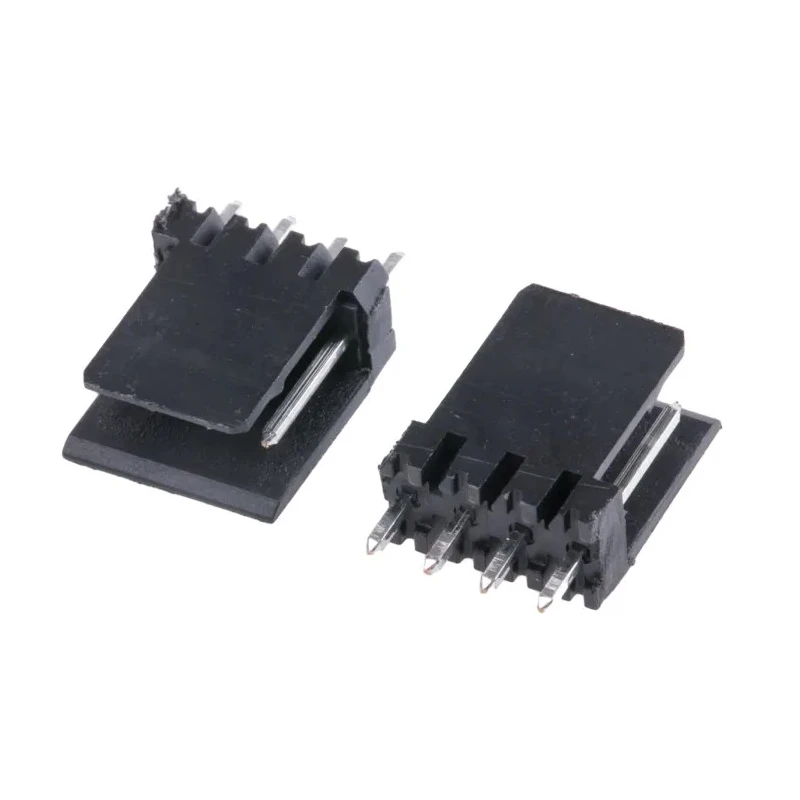

Wurth Elektronik 475 Series Shrouded PCB Header, 4 Contacts, 2.54 mm Pitch, Straight Through Hole, 1 Row 66100411622

Wurth Elektronik introduces the 475 Series Straight Through Hole PCB Header, model 66100411622, designed for use in demanding electronic applications where secure and reliable wire-to-board connections are essential. The connector features four male contacts, arranged in a single row, each with a 2.54 mm pitch to match standard PCB configurations. Through-hole mounting ensures stability and robust mechanical performance, while the shrouded design increases mating accuracy and protects contacts from accidental damage or misalignment.

The header is housed in high-quality polyamide material, ensuring insulation, strength, and resistance to chemicals. Tin-plated phosphor bronze contacts provide optimum electrical conductivity and corrosion protection, coupled with solder termination for easy PCB integration. Capable of handling up to 4 amps and 1,000 volts, this connector is suitable for both industrial and laboratory PCB assemblies, including power distribution, signal transmission, and custom electronics projects.

Four contacts in a shrouded, single row configuration for secure connectivity. 2.54 mm pitch, compatible with standard PCB and wire-to-board designs. Through-hole mounting type for reliable mechanical retention. Polyamide housing offers robust electrical insulation and durability.

Tin-plated contacts minimize resistance and maintain contact integrity. Rated for 4A maximum current at 1 kV voltage for versatile applications. Temperature range spans from -40°C to 125°C for wide environmental tolerance.

Solder termination type simplifies PCB assembly operations.

Applications include circuit boards in industrial automation, laboratory instruments, and commercial electronic goods. The header meets Lead Free, RoHS, and UL94V0 standards for environmental compliance. This product is typically used in wire-to-board connector systems, supporting secure interconnections in harsh operational conditions.
