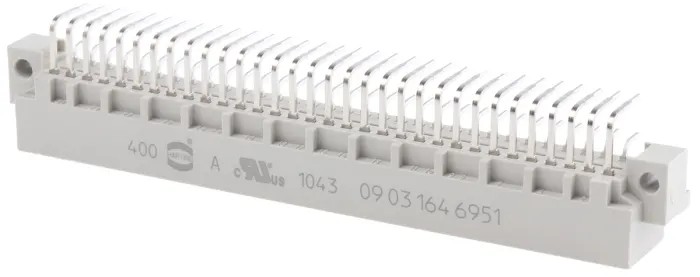

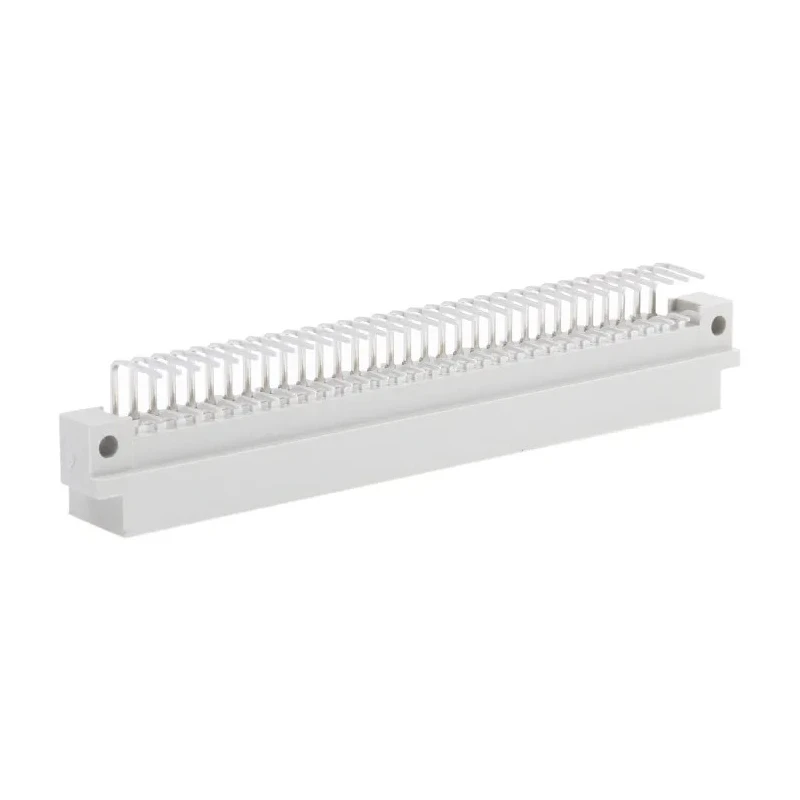

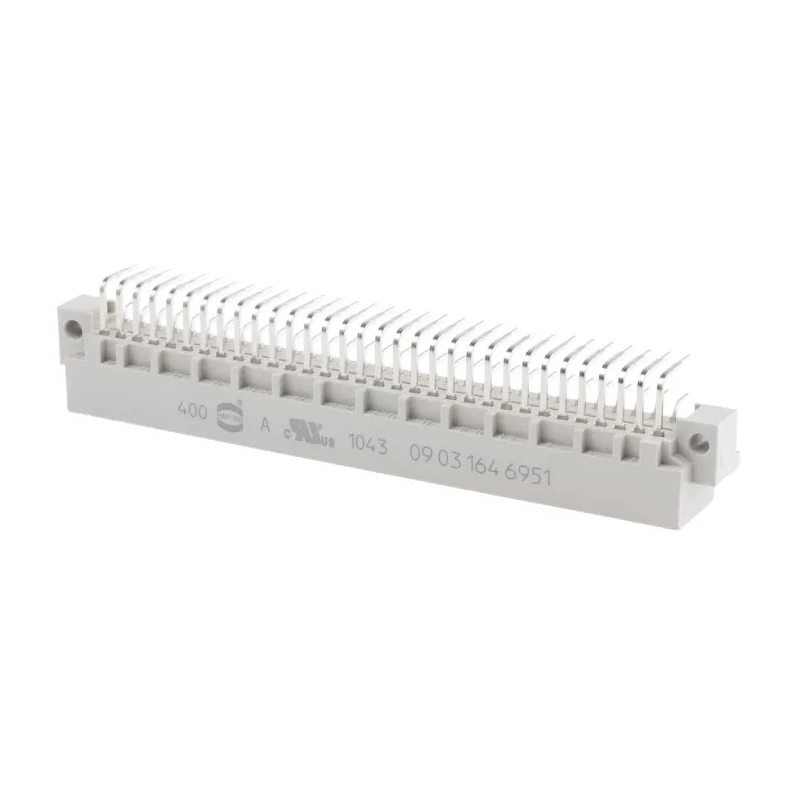

HARTING DIN 41612 64 Way Backplane Connector, 2.54 mm Pitch, Type C/2, Right Angle, Solder, Class C2, Male 09031646951
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
Key Features
- 64-way male DIN 41612 backplane connector for robust electronic signal transmission.
- 2.54 mm pitch ensures compatibility with standard PCB layouts.
- Right angle orientation, suitable for parallel board assemblies.
- Solder termination for secure and reliable connections.
- Class C2 construction offers enhanced durability and longevity.
- Through-hole mounting design enables stable board integration.
- Gold over nickel contact plating provides superior conductivity and corrosion resistance.
- Copper alloy contacts ensure high performance and reliability.
Product Description
HARTING 09031646951 DIN 41612 64 Way Backplane Connector is designed for reliable signal transmission in demanding electronic and industrial applications. Featuring Type C/2, 2-row male configuration, this connector offers a 2.54 mm pitch for easy PCB integration, compatible with Eurocard racking systems and backplane assembly.
The right angle orientation allows efficient space utilization in parallel board applications, while the through-hole mounting facilitates robust mechanical integration. Solder termination ensures secure electrical connections, making this connector ideal for high-density backplane or rack installations.
64 contacts allow high-volume data and signal throughput, suitable for advanced electronic equipment. Gold over nickel contact plating optimizes conductivity and reduces wear, extending operational lifetime. Class C2 construction delivers exceptional durability, supporting extended use cycles within industrial environments.
Copper alloy contacts and polybutylene terephthalate housing provide the balance of mechanical strength and excellent electrical insulation. 2A maximum current rating meets the requirements for signal and low-power applications across laboratory, communication, and manufacturing systems.
Suitable for applications in industrial automation, telecommunications, instrumentation, and rack-based electronic equipment. Operates efficiently across a wide temperature range from -55°C to 125°C, supporting both indoor and outdoor installations.
Mating is prioritized at positions a1 and a31 for improved operational stability. Designed in accordance with DIN 41612 standards, this connector ensures compatibility with leading backplane signal architectures.
For further refinement within the EnvMart electronics components category, consider reviewing similar connectors for custom designs or extended specifications. Explore HARTING’s full range of DIN 41612 Connectors and electronic component solutions within EnvMart’s Electronics & Electricals section.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this backplane connector is 2.54 mm, ensuring compatibility with standard PCB layouts.
This model features 64 contacts, allowing for high-volume data and signal throughput.
The maximum current rating for this connector is 2A, suitable for signal and low-power applications.
It uses solder termination, which ensures secure and reliable electrical connections.
This unit operates efficiently across a temperature range from -55°C to 125°C.
The housing is made from polybutylene terephthalate, and the contacts are made from copper alloy with gold over nickel plating for enhanced conductivity.
The connector has a right angle orientation, making it suitable for parallel board assemblies.
It features a through-hole mounting design, which facilitates stable board integration.
This model is designed in accordance with DIN 41612 standards, ensuring compatibility with leading backplane signal architectures.
The maximum contact resistance is 20 mΩ, which supports efficient signal transmission.
It is suitable for applications in industrial automation, telecommunications, instrumentation, and rack-based electronic equipment.
This connector is classified as Class C2, offering enhanced durability and longevity for demanding applications.
