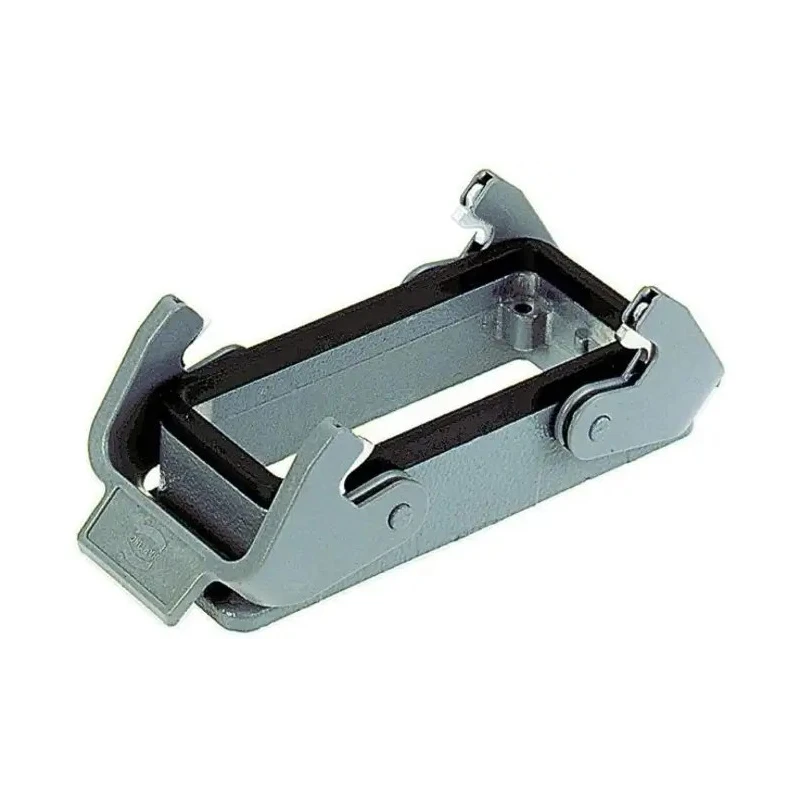

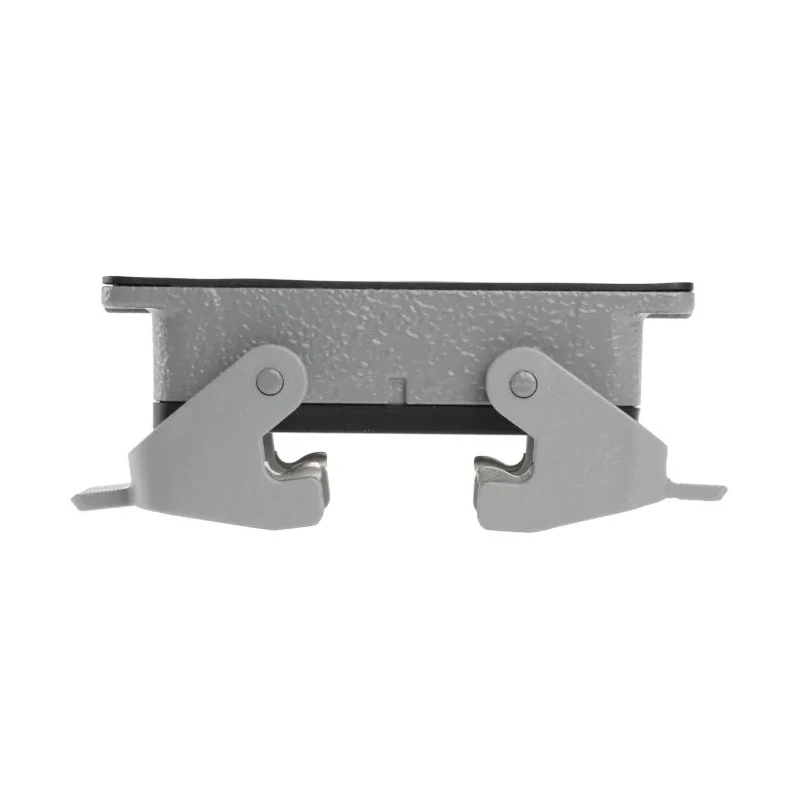

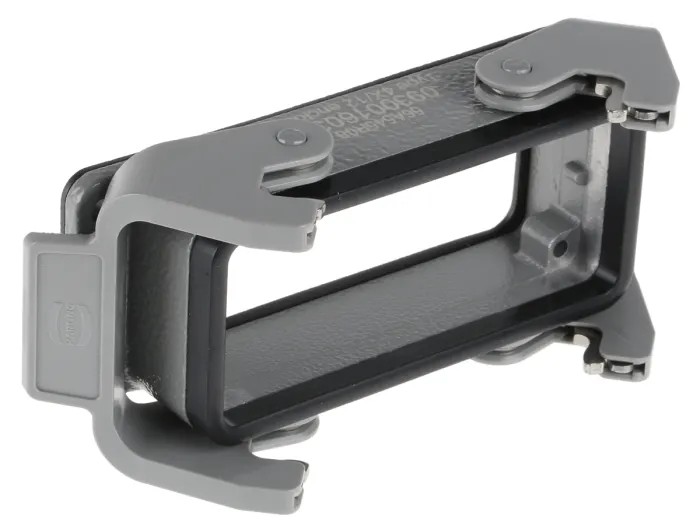

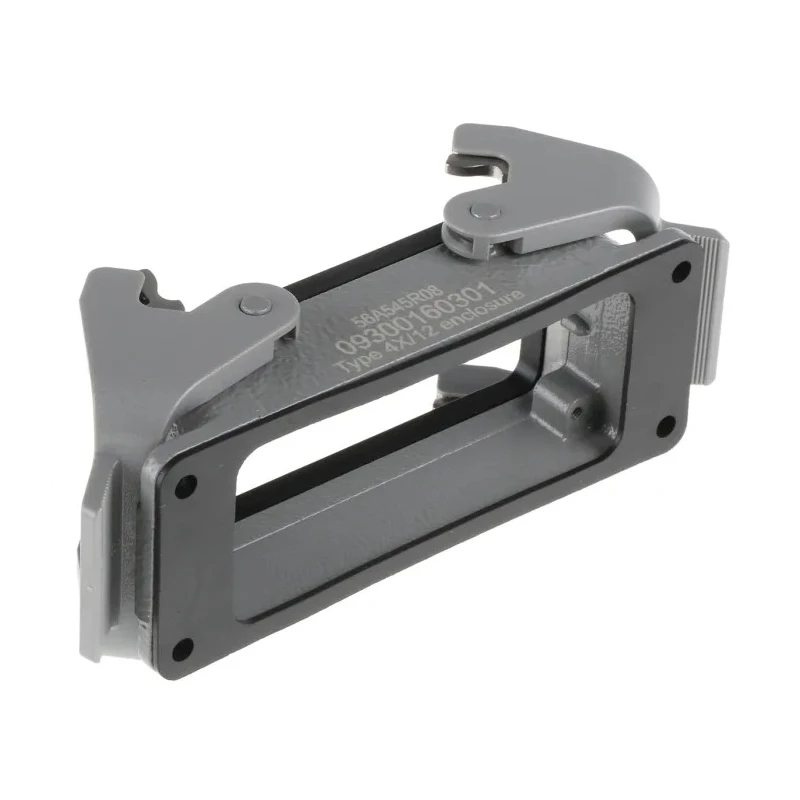

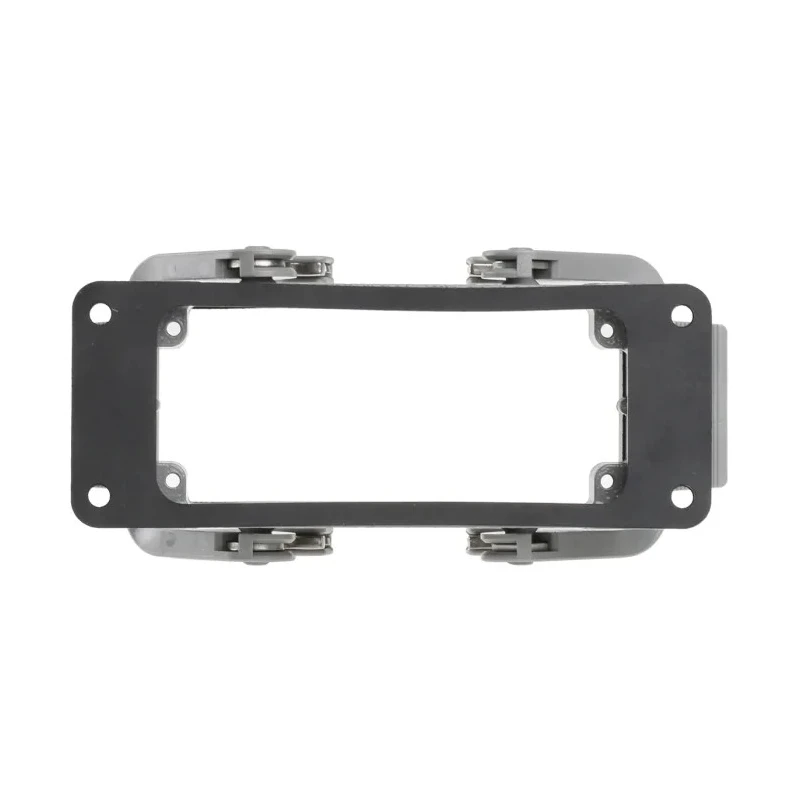

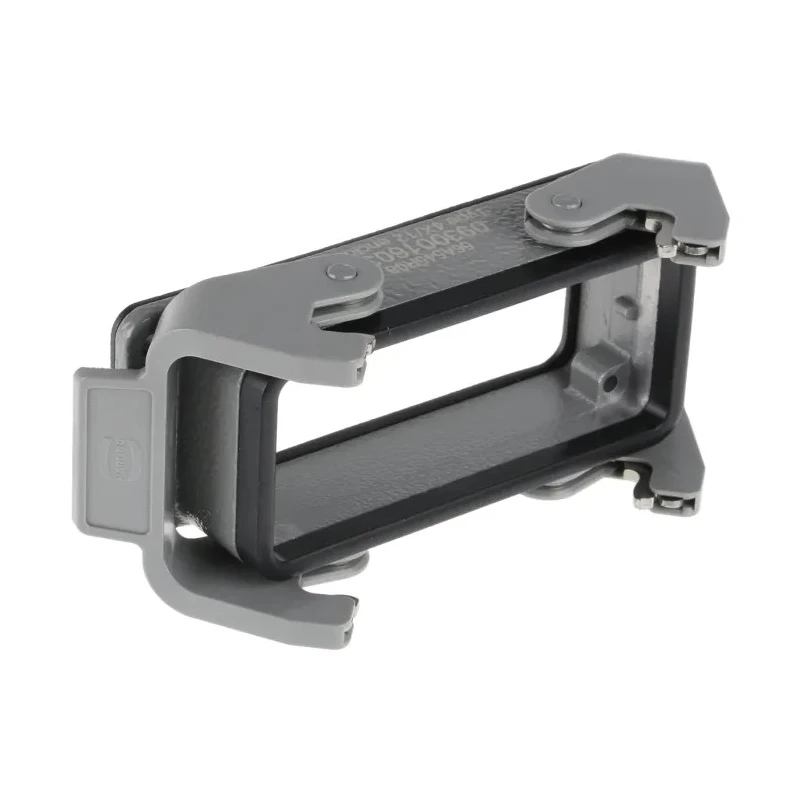

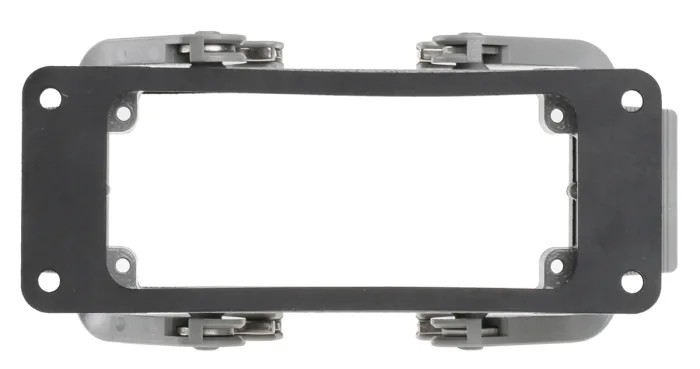

HARTING Han B Range Heavy Duty Power Connector Housing, Bulkhead Mount, Die Cast Aluminium, IP65, Size 16B 09300160301
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Body Material | Die Cast Aluminium |
| IP Rating | IP65 |
| Finish | Powder-coated RAL7037 |
| Mount Type | Bulkhead |
| Series | Han B |
| Sub Type | Bulkhead Housing |
| For Use With | Size 16B inserts |
| Tightening Torque | 1 Nm |
| Mating Cycles | ≥500 |
| Locking Type | Double Lever |
| Number of Levers | 2 |
| TE Connectivity Panel Base, HEBrand | TE Connectivity |
Key Features
- Bulkhead-mounted die-cast aluminium housing offers high mechanical protection.
- Powder-coated RAL7037 finish for corrosion resistance and identification.
- Double-lever locking ensures secure, rapid connector operation.
- Rated IP65 for reliable dust and water ingress protection.
- Wide operating temperature range of −40°C to +125°C enables versatile applications.
- Accepts standard size 16B connector inserts for flexible installations.
- Complies with global standards including CE, UL, CSA, DNV GL, and IEC 60529.
- Ideal for automation, control panels, and industrial machinery.
Product Description
The HARTING Han B Range Heavy Duty Power Connector Housing, model 09300160301, is an advanced bulkhead-mount enclosure engineered for rugged industrial power interconnections requiring reliable protection and easy serviceability. This housing is specifically designed for use with size 16B connector inserts, supporting a multitude of control, automation, and energy-management applications.
Manufactured from die-cast aluminium and powder-coated in RAL7037 dust grey, the housing provides exceptional corrosion resistance and mechanical robustness. The double-lever locking system enables quick and secure mating or demating, supporting over 500 cycles without loss of performance. With an IP65 ingress protection rating, it reliably shields connections from dust and low-pressure water jets, making it suitable for factory automation, process control, and harsh industrial settings.
This housing accommodates two locking levers, ensuring uniformly distributed pressure for optimal sealing. The NBR seals and polycarbonate levers with stainless steel elements further enhance resilience in adverse environments. The unit is field proven for use across temperatures from −40°C up to +125°C, making it effective in a broad array of indoor and outdoor installations, including marine-grade DNV GL-approved sites.
Bulkhead mounting via M4 screws for secure panel attachment; recommended tightening torque is 1 Nm. Meets stringent CE, IEC 60529, UL 1977, CSA-C22.2 No.182.3, DNV GL, and UL50E/UL50 type ratings for safety and durability.
Die-cast body ensures longevity, while the powder-coated finish resists surface wear and allows easy identification. Support for size 16B inserts enables flexible circuit and power configurations. Compact form factor is ideal for confined spaces within enclosures, panels, or power distribution boards.
Applications for the HARTING Han B 09300160301 housing include industrial machinery, automation systems, power distribution panels, marine installations, and control cabinets. It is particularly well-suited to environments demanding robust connectivity and service-friendly design. This model exemplifies the reliability, performance, and compliance expected from HARTING’s industrial connection solutions.
Explore more Heavy Duty Power Connector Housing and HARTING innovations within the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The housing has an IP65 ingress protection rating, ensuring reliable dust and water ingress protection.
It is made from die-cast aluminium and features a powder-coated finish in RAL7037 for corrosion resistance.
This model supports over 500 mating cycles without loss of performance.
It employs a double-lever locking system, which ensures secure and rapid connector operation.
The recommended tightening torque for mounting is 1 Nm.
It operates effectively within a temperature range of −40°C to +125°C.
This model is designed to accept standard size 16B connector inserts, allowing for flexible installations.
It features bulkhead mounting via M4 screws for secure panel attachment.
It complies with several global standards including CE, UL, CSA, DNV GL, and IEC 60529.
It is suitable for applications in industrial machinery, automation systems, power distribution panels, and marine installations.
The design includes NBR seals and polycarbonate levers with stainless steel elements, enhancing its resilience in adverse environments.
The powder-coated finish provides corrosion resistance and allows for easy identification of the housing.
