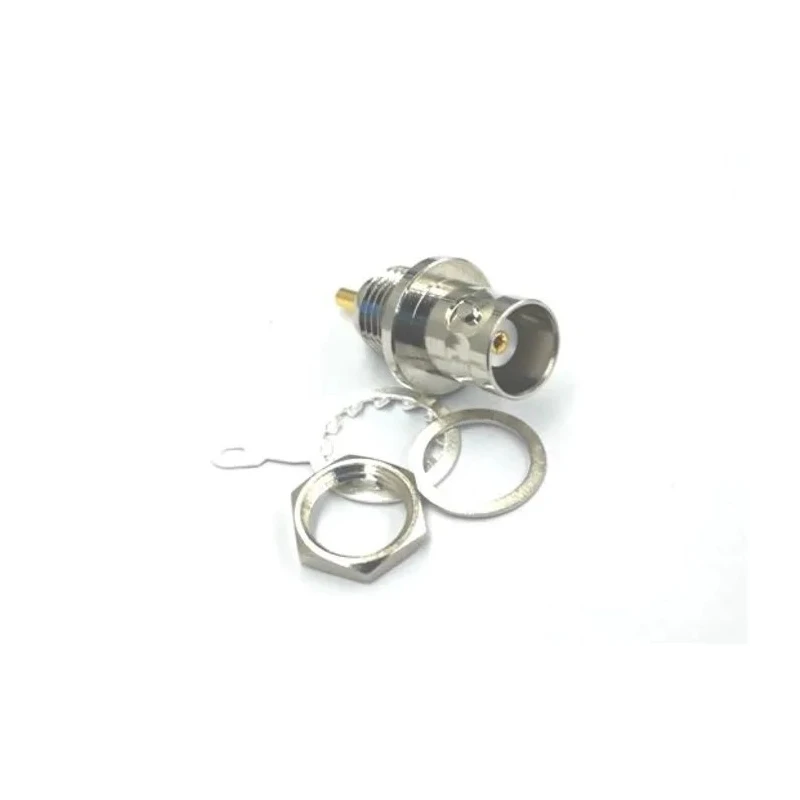

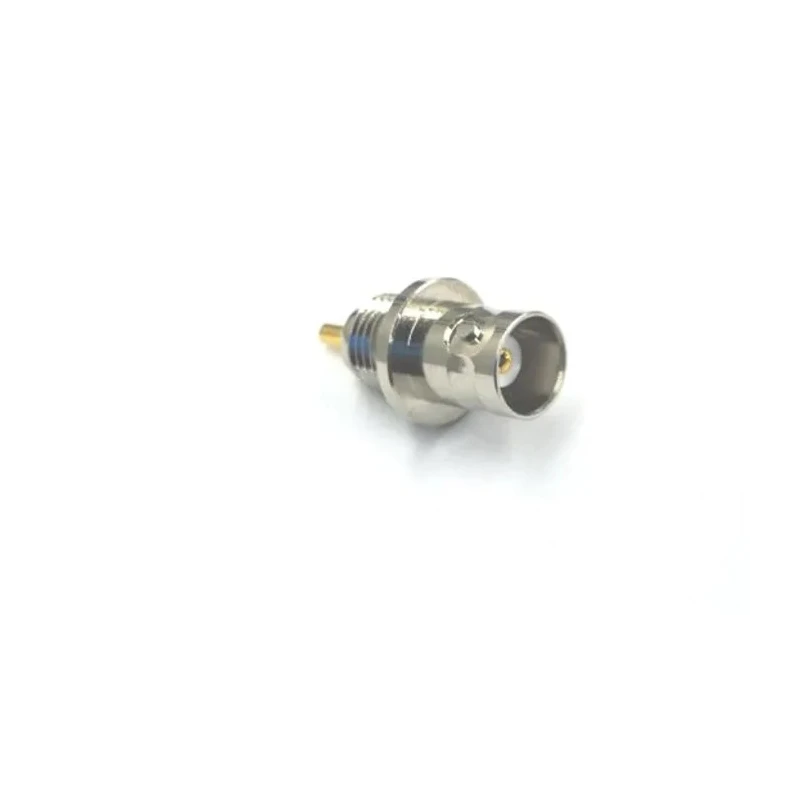

RS PRO Panel Mount BNC Coaxial Connector, Female, 50 Ω, Solder, Nickel Plated, Straight Body 218-4247
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 218-4247 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Phosphor Copper |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Insulation Material | Teflon |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -40°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Designed for secure connections in RF and coaxial cable assemblies.
- Panel mount BNC connector with straight body orientation for efficient installation.
- Nickel-plated body and gold-plated contacts for enhanced durability and performance.
- Female connector ensures compatibility with BNC male assemblies.
- Supports operating frequencies up to 4 GHz for advanced signal applications.
- Solder termination and grounding tab included for reliable electrical connection.
- Impedance rated at 50 Ω, suitable for precision RF signalling and test equipment.
- Bulkhead fitting enables robust mounting in test and measurement equipment.
Product Description
RS PRO 218-4247 Panel Mount BNC Coaxial Connector offers a reliable solution for RF signal transmission in electronic applications. The connector features a female BNC interface with a straight body orientation, rated at 50 Ω, optimized for precision and minimal signal interference.
Constructed with a nickel-plated body and gold-plated phosphor copper contacts, this connector ensures superior performance and corrosion resistance. It uses a solder termination for secure cable attachment and includes a grounding tab, locking washer, and nut for robust panel mounting.
The insulation material is high-grade Teflon, providing excellent dielectric strength. Operating frequencies up to 4 GHz make this connector ideal for test and measurement equipment, RF signalling, antenna installations, and coaxial cable setups.
The bulkhead fitting allows for easy integration into electronic panels, supporting a wide operating temperature range from -40°C to 125°C. Its design supports high working voltage and insulation resistance, making it suitable for demanding laboratory, industrial, and commercial environments.
Secure panel mount BNC connector for RF applications. Female connector design with straight body orientation. Solder termination for reliable electrical connections. Nickel body plating and gold contact plating for durability.
High frequency range, up to 4 GHz, suitable for advanced systems. Impedance of 50 Ω for precision signal transmission. Includes grounding tab, locking washer, and nut for installation. Teflon insulation ensures high dielectric properties.
Wide operating temperature for industrial versatility. Approved for RoHS, ensuring compliance and safety.
Commonly used in industrial, laboratory, RF test and measurement, antenna setup, and coaxial cable installations. Panel mount connectors like this RS PRO model are essential for secure and efficient electronic system integration in manufacturing and commercial sectors.
Explore additional RS PRO coaxial connectors and related solutions in the Coaxial Connector category for robust connectivity and performance on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 4 GHz, making it suitable for advanced RF signal applications.
It uses a solder termination type, providing a secure electrical connection for coaxial cables.
The connector features a nickel-plated body and gold-plated phosphor copper contacts, enhancing durability and performance.
This model has an impedance rating of 50 Ω, which is ideal for precision RF signaling.
It operates within a temperature range of -40°C to 125°C, allowing for versatility in various environments.
Yes, it includes a grounding tab, locking washer, and nut for robust panel mounting.
This connector has a straight body orientation, which facilitates efficient installation.
The insulation material is high-grade Teflon, providing excellent dielectric strength.
It is designed for use with coaxial cables, ensuring reliable RF signal transmission.
The connector is manufactured in China.
This model is RoHS approved, ensuring compliance with safety and environmental regulations.
It is commonly used in industrial, laboratory, RF test and measurement, antenna setups, and coaxial cable installations.
