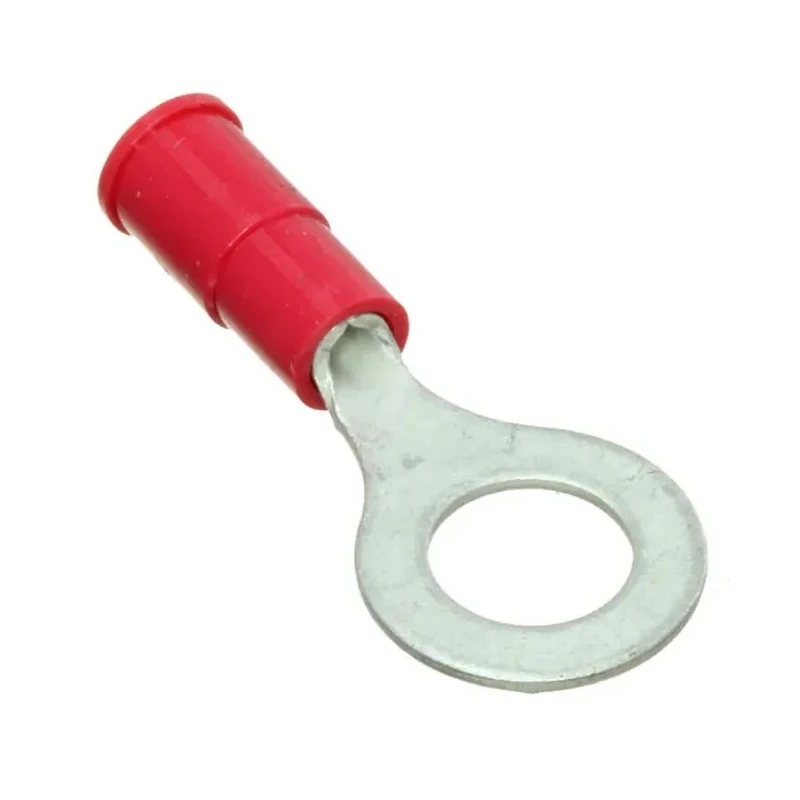

Molex Insulated Crimp Ring Terminal M6, 22 - 18 AWG, Red, Polyvinyl Chloride, Tin Plated, 190540042

The Molex 190540042 insulated crimp ring terminal is an advanced electrical component engineered for secure wire termination in a variety of professional industrial and electronic applications. Designed for use with an M6 stud, it accommodates wire sizes ranging from 22 AWG to 18 AWG, making it versatile for common wiring needs in panels, machinery, and assemblies.

This terminal utilizes a robust copper contact plated with tin, ensuring excellent conductivity and resistance to oxidation, which significantly improves the lifespan of wire terminations. The outer insulation is manufactured from high-grade polyvinyl chloride (PVC), offering both electrical insulation and mechanical protection while also supporting color coding for error reduction during wiring work.

Provides a reliable crimp ring connection for 22 - 18 AWG wire applications. Equipped with M6 stud size for standardized mounting. Insulated with durable polyvinyl chloride for enhanced electrical protection. Features a red color for easy wire identification in complex circuits.

Tin plated copper contact ensures durability and corrosion resistance. Suitable for power distribution, industrial wiring, and electronic panels. CSA and UL certified for quality and performance assurance. Rated for maximum operating temperature of 105°C.

The outer ring diameter is precisely 11.86 mm, the inner ring diameter is 6.73 mm, and the overall terminal length is 24.89 mm, allowing compatibility with industry standard mounting and wire routing requirements. With its red insulation, the terminal can be easily identified, minimizing mistakes while enhancing efficiency during installation or maintenance.

This Molex crimp ring terminal is suitable for a range of environments, from demanding industrial control panels to commercial electrical systems, and laboratory test setups. It meets CSA and UL certifications, providing peace of mind for safety and compliance in regulated industries. Its reliable construction supports usage in assembly lines, machinery, building wiring, HVAC panels, and electrical maintenance, ensuring dependable conductivity and connection integrity.

Whether for an electronic manufacturing application, facility wiring job, or repair work, this terminal delivers the security, reliability, and ease of use professionals demand. Explore more high-quality Ring Terminals and wire management solutions from Molex and the wider EnvMart electronics component catalogue for robust industrial and electrical assembly needs.
