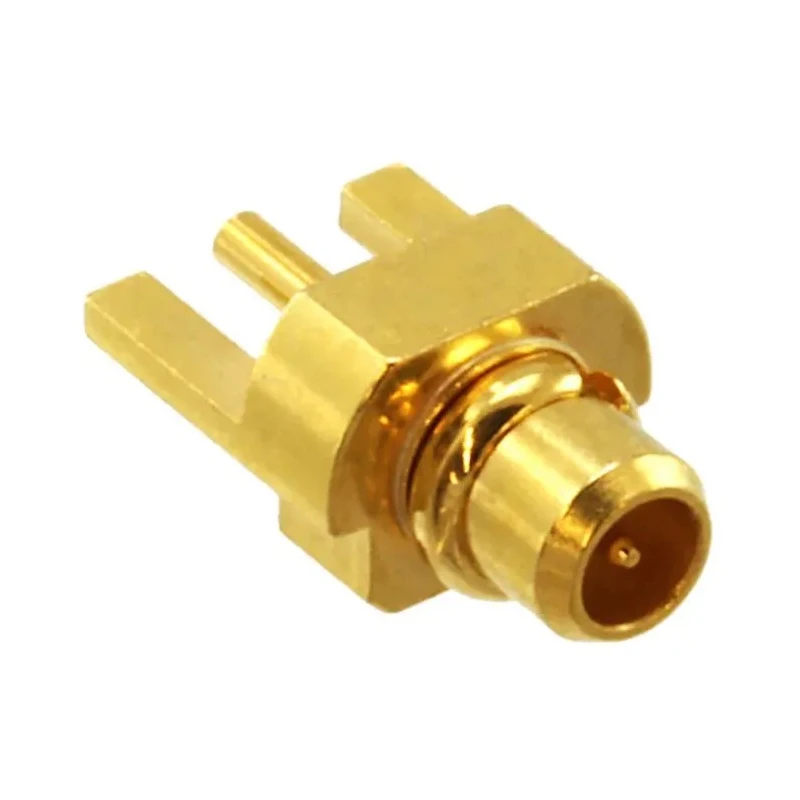

Molex MCX Edge Male Coaxial Connector 50 Ω, Straight, Surface Mount, Gold Plated 734150991
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | Molex |
| Orientation | Straight |
| Mount Type | Edge |
| Operating Frequency | 6GHz |
| Series | 73415 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 260°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Standards/Approvals | EU RoHS China RoHS Compliant with Exemption 6(c) |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- 50 Ohm MCX edge male coaxial connector for surface mount applications.
- Gold-plated body ensures reliable conductivity and corrosion resistance.
- Straight orientation suited for efficient signal routing on PCBs.
- Operates up to 6 GHz for high-frequency requirements.
- Maximum operating temperature of 260°C supporting demanding environments.
- EU RoHS and China RoHS compliant for worldwide electronics standards.
- Edge mount design enables compact installations in electronic modules.
- Suitable for industrial and commercial RF circuitry projects.
Product Description
Molex 734150991 MCX Edge Male Coaxial Connector, featuring a 50 Ω impedance and straight body orientation, is engineered for precise RF signal connectivity. This robust surface mount connector is ideal for high-frequency circuit designs, supporting up to 6 GHz operation, and offers outstanding reliability for industrial, laboratory, and commercial electronics.
Constructed with gold-plated contacts to minimize signal loss and corrosion, the Molex MCX connector ensures consistent performance even in challenging environments with operating temperatures up to 260°C. Its edge mount design facilitates straightforward and space-efficient installation on printed circuit boards.
The male gender MCX type is widely used in telecommunications, networking, and instrumentation, ensuring universal compatibility with popular RF systems. The surface mount termination supports automated PCB assembly, streamlining manufacturing and reducing assembly times.
50 Ohm MCX edge male coaxial connector for surface mount applications. Gold-plated body ensures reliable conductivity and corrosion resistance. Straight orientation suited for efficient signal routing on PCBs. Operates up to 6 GHz for high-frequency requirements.
Maximum operating temperature of 260°C supporting demanding environments. EU RoHS and China RoHS compliant for worldwide electronics standards. Edge mount design enables compact installations in electronic modules. Suitable for industrial and commercial RF circuitry projects.
Applications include industrial automation, laboratory instruments, communications equipment, and commercial electronic assemblies. The Molex 734150991 is a reliable choice for engineers seeking high-performance connection solutions that meet global compliance standards.
Discover more RF and Coaxial Connector options in the Electronics & Electricals category on EnvMart, and explore Molex’s complete range for specialized connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates up to 6 GHz, making it suitable for high-frequency applications.
It has an impedance rating of 50 Ω, which is standard for many RF applications.
The connector can operate at temperatures up to 260°C, accommodating demanding environments.
This unit features an edge mount design, allowing for compact installations on printed circuit boards.
Yes, it is compliant with EU RoHS and China RoHS standards, ensuring it meets global electronics regulations.
It uses a surface mount termination type, which supports automated PCB assembly.
The connector has a straight orientation, which is suitable for efficient signal routing on PCBs.
This model features a male contact gender, which is typical for MCX connectors.
The body of the connector is gold-plated, which enhances conductivity and corrosion resistance.
It is suitable for industrial automation, laboratory instruments, communications equipment, and commercial electronic assemblies.
It is classified as a standard size connector, making it compatible with a variety of setups.
This model belongs to the 73415 series, which is designed for precise RF signal connectivity.
