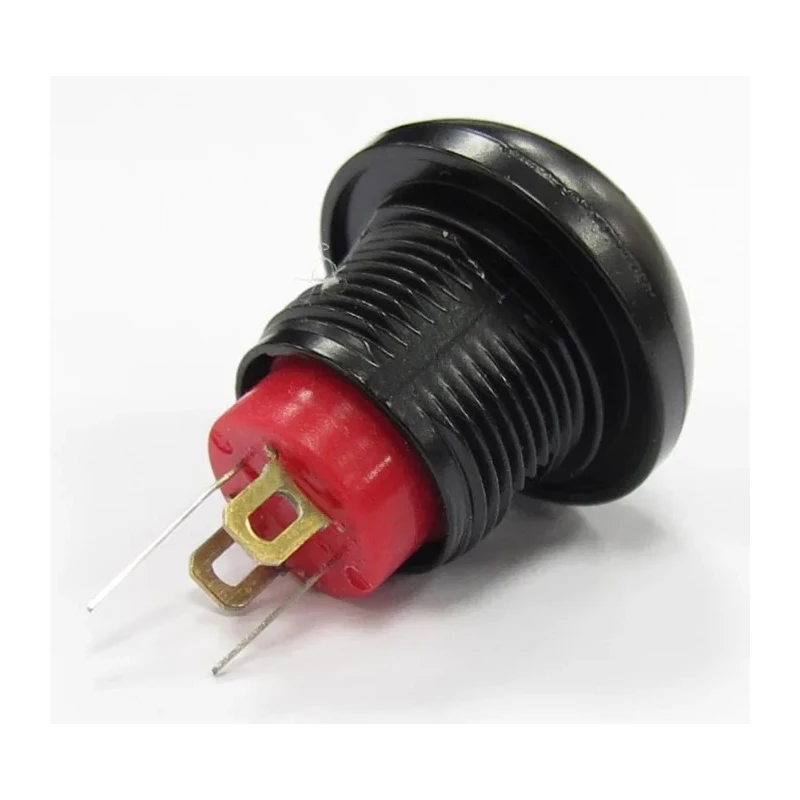

RS PRO Series Illuminated Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, Green LED, IP67, 36V DC PAS6

RS PRO introduces the PAS6 Series Illuminated Push Button Switch, engineered for industrial and commercial applications requiring reliable momentary SPST contact operation. Featuring a robust flat actuator made from polyamide 6/6 and a panel mount design with a compact 13.6 mm cutout, this switch is suited for integration in machinery, process control panels, and equipment interfaces.

Green LED illumination delivers high-visibility actuation feedback, enhancing user awareness in control environments. Rated IP67, the PAS6 switch is protected against dust and immersion in water, ensuring performance in demanding conditions such as manufacturing, laboratory, and outdoor instrumentation.

The switch operates reliably at 36V DC and up to 250V AC, with a 125 mA contact current, making it suitable for a broad range of signal control and device activation tasks. Terminal type is solder, supporting secure connection in complex panel builds.

Designed for momentary action and featuring SPST contact configuration, it excels in applications requiring single-pole, single-throw switching such as test equipment, telecommunications and handheld appliances. The flat actuator and dome-type button caps offer both aesthetic versatility and practical functionality, with multiple color options available.

Designed for panel mounting with a 13.6 mm cutout. Features a green LED illumination for clear visibility. Momentary switch operation with SPST contact configuration. Rated for IP67 protection against dust and water. Suitable for direct solder terminal connections.

Operates at 36V DC and up to 250V AC voltage. Provides up to 125 mA contact current. Flat actuator style with polyamide 6/6 cap. Operating temperature from -35°C to 85°C. Ideal for test equipment, networking, appliances and automation panels.

This PAS6 illuminated push button switch is ideal for automation control systems, industrial panels, laboratory instruments, and telecommunication devices. Discover more in the Push Button Switches category or explore RS PRO components at EnvMart for comprehensive solutions in industrial and electrical engineering.
