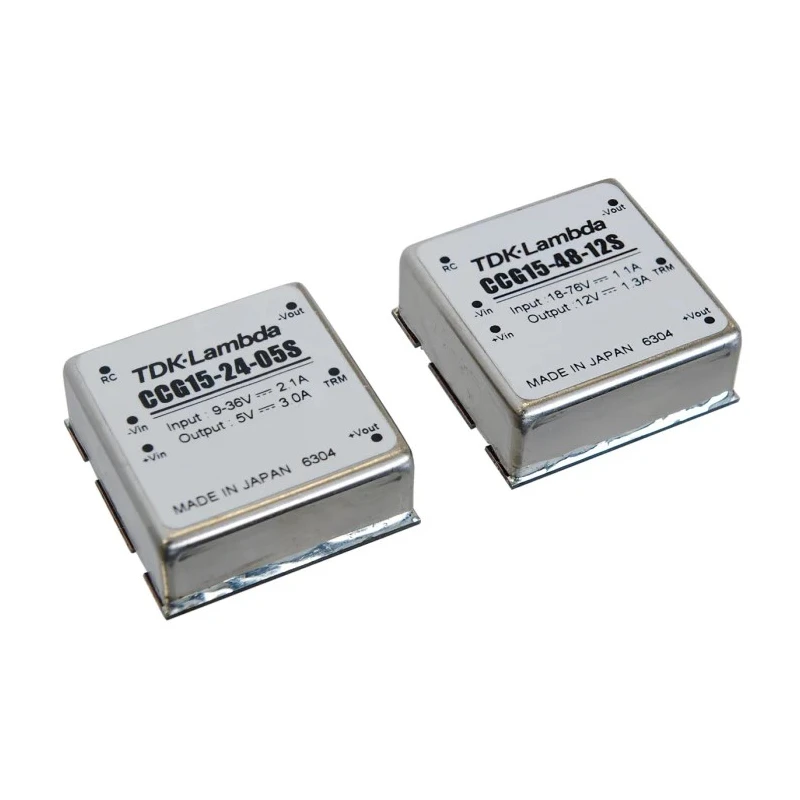

TDK-Lambda DC/DC Converter 5V DC 3A 9 - 36V Input, 15W Through Hole CCG15
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda CCG15 DC/DC Converter, 5V dc/ 3 A, 36V |
| Brand | TDK-Lambda |
| Efficiency | 87% |
| Length | 25.4mm |
| Model | CCG15 |
| Depth | 9.9mm |
| Gross Weight | 20g |
| Width | 9.9mm |
| Mount Type | Through Hole |
| Series | CCG15 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3191064h |
| Number of outputs | 1 |
| Ripple and Noise | 95mV Pk-Pk |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | CE, UL/CSA 60950-1, EN 60950-1 |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Output Voltage Adjustment Range | 5.5 V |
| Isolation Voltage | 500V dc |
Key Features
- Isolated DC/DC conversion for stable 5V output at 3A.
- Wide input voltage range from 9V to 36V DC.
- 15W maximum output power in compact DIP package.
- Six-sided shielded metal case for noise reduction and thermal protection.
- Through hole mounting for robust board integration.
- High efficiency up to 87% for reduced power loss.
- Operating temperature range from -40°C to 85°C.
- One output channel, remote on/off and adjustable output voltage.
Product Description
The TDK-Lambda CCG15-24-05S is a high-performance DC/DC converter designed for reliable power delivery in industrial, laboratory, automation and communication applications. This module provides a regulated 5V DC output at up to 3A current, drawing from a wide input range of 9 - 36V DC. Its 15W output rating makes it suitable for compact electronic systems demanding efficient isolated power supply.
Enclosed in a metal case with complete six-side shielding, the CCG15-24-05S suppresses radiated noise and withstands vibration and shock, ideal for harsh environments. Through-hole mounting assures secure installation on PCBs where durability and mechanical stability are essential.
High efficiency up to 87% minimizes power waste and heat, extending operational life and supporting easier system thermal management. The converter accommodates ambient operating conditions between -40°C and 85°C, providing reliability in diverse climates and challenging industrial settings.
Its single-output design includes remote on/off capability and adjustable output voltage, giving engineers flexibility for integration and circuit protection. Ripple and noise is controlled to 95mV peak-to-peak, ensuring clean power for sensitive devices. Isolation voltage rated at 500V DC enhances safety and reliability for signal and power domains.
The product meets CE, UL/CSA 60950-1, EN 60950-1 certifications, supporting global conformity and application in regulated environments. With a mean time between failures (MTBF) exceeding 3.19 million hours, this converter is well-suited for critical systems such as test and measurement setups, broadcast communication gear, factory automation controllers, and process control panels.
Technical highlights include six pins for easy connectivity, DIP package dimensions (25.4mm length, 9.9mm width, 9.9mm depth), and a weight of just 20g, facilitating compact PCB layouts and lower profile systems. Typical applications span laboratory instrumentation, industrial automation, communication equipment, and any demanding application requiring dependable DC/DC conversion.
Browse more TDK-Lambda DC/DC converters and related electronic power solutions in the EnvMart category for industrial, laboratory and commercial use.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9V to 36V DC.
This converter has a maximum output power of 15W.
It has an efficiency rating of up to 87%.
The operating temperature range is from -40°C to 85°C.
This model features a single output channel.
The ripple and noise is controlled to 95mV peak-to-peak.
It utilizes through-hole mounting for secure installation.
The DIP package dimensions are 25.4mm in length, 9.9mm in width, and 9.9mm in depth.
The isolation voltage is rated at 500V DC.
It meets CE, UL/CSA 60950-1, and EN 60950-1 certifications.
The weight of this converter is 20g.
It is suitable for applications in industrial, laboratory, automation, and communication settings.
