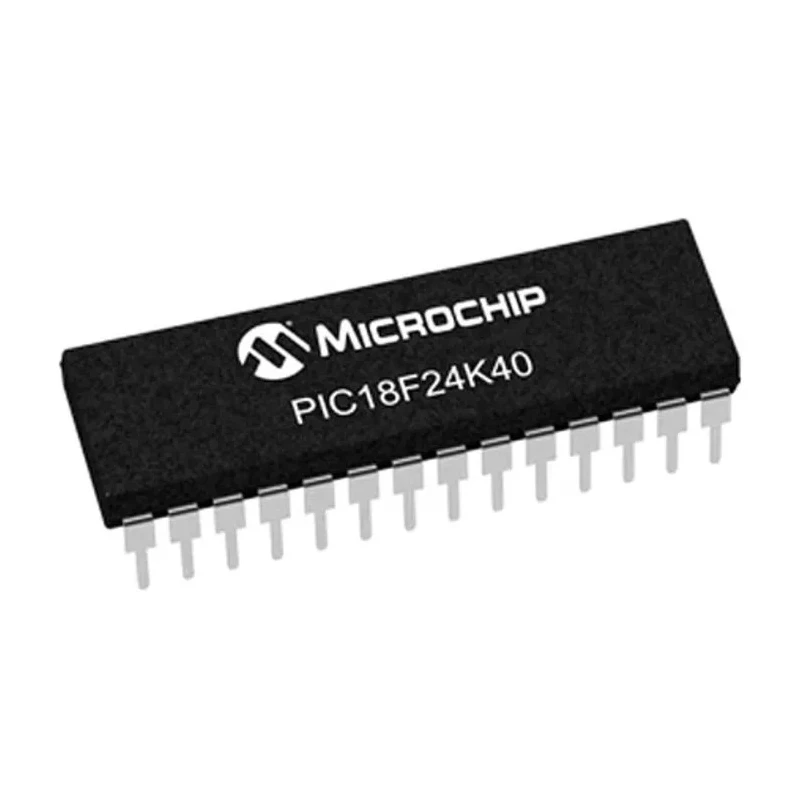

Microchip PIC18F24K40 8-bit PIC Microcontroller 64 MHz, 16kB FLASH, 28-Pin SPDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | PIC18F24K40 |
| Width | 7.49mm |
| Mount Type | Surface |
| Series | PIC18F24K40 |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Communications | 1 x I2C/SPI , 1 x EUSART with LIN support |
| Operating Voltage | 2.3 to 5.5V |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 24 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Features an advanced PIC18 MCU core with 83 instructions and 31 stack levels.
- Operates at a maximum clock frequency of 64 MHz for high-speed application requirements.
- Equipped with 16kB FLASH program memory and 1kB RAM to support diverse embedded tasks.
- Integrated 24-channel 10-bit ADC, 5-bit DAC, 2 analogue comparators, and 25 programmable I/Os.
- Supports SPI, I2C, and EUSART with LIN communications, offering flexible interface options.
- Operating voltage range from 2.3 V to 5.5 V, optimized for low-power and battery-driven use cases.
- Comes in a robust 28-pin SPDIP package, suitable for surface mounting or through-hole assembly.
- RoHS compliant for safe and environmentally friendly integration in projects.
Product Description
The Microchip PIC18F24K40-I/SP is a highly capable 8-bit microcontroller, engineered for versatility and performance in a broad spectrum of embedded applications. With a robust PIC18 MCU core featuring 83 instructions and 31 stack levels, this chip provides powerful processing for demanding tasks.
Its maximum clock frequency of 64 MHz ensures fast execution speeds, making it ideal for real-time and industrial systems. The integrated 16kB FLASH program memory and 1kB RAM provide ample space for program code and runtime variables, facilitating complex embedded designs.
This microcontroller boasts extensive analog and digital peripheral integration, including 24-channel 10-bit ADC, a 5-bit DAC, 2 analogue comparators, and 25 programmable I/O pins. These features make it suitable for sensor interfacing, signal conditioning and mixed-signal control applications.
Flexible communications are enabled with SPI, I2C, and EUSART interfaces supporting LIN protocol, allowing easy connection to other chips and modules. It also supports hardware capacitive voltage divider for mTouch buttons/sliders and in-circuit serial programming (ICSP) via two pins.
The operational voltage range from 2.3 V to 5.5 V is optimized for low-power and battery-operated systems, with maximum power dissipation of 1 W for efficient designs. The device comes in a durable 28-pin SPDIP package, suitable for both surface mount and through-hole assembly, making prototyping and production integration straightforward.
Engineers and designers will appreciate the RoHS-compliant, high-temperature tolerant construction (operating between -40°C and 85°C), as well as provision for robust hardware debug and rich peripheral integration.
The Microchip PIC18F24K40-I/SP is a strong solution for industrial, commercial, laboratory, automotive, and consumer electronics applications where reliable microcontroller functionality and flexible interfacing are needed.
Browse more Microchip microcontroller solutions in the Electronics & Electricals > Semiconductor > Microcontroller category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz, ensuring fast execution speeds for demanding applications.
It operates within a voltage range of 2.3 V to 5.5 V, making it suitable for low-power and battery-operated systems.
This microcontroller is equipped with 16kB of FLASH program memory, allowing ample space for program code.
It supports SPI, I2C, and EUSART with LIN communications, providing flexible interfacing options for various applications.
The PIC18F24K40 features 1kB of RAM, which supports runtime variables for embedded tasks.
The dimensions of this microcontroller are 35.56 mm in length, 7.49 mm in width, and 3.81 mm in height.
It has 25 programmable I/O pins, allowing for extensive interfacing capabilities in embedded designs.
The operating temperature range is from -40°C to 85°C, suitable for a variety of environmental conditions.
It comes in a 28-pin SPDIP package, which is suitable for both surface mount and through-hole assembly.
The PIC18F24K40 includes a 24-channel 10-bit ADC, enabling effective sensor interfacing and signal conditioning.
This microcontroller is RoHS compliant, ensuring safe and environmentally friendly integration in projects.
The maximum power dissipation for this model is 1 W, which supports efficient design in low-power applications.
