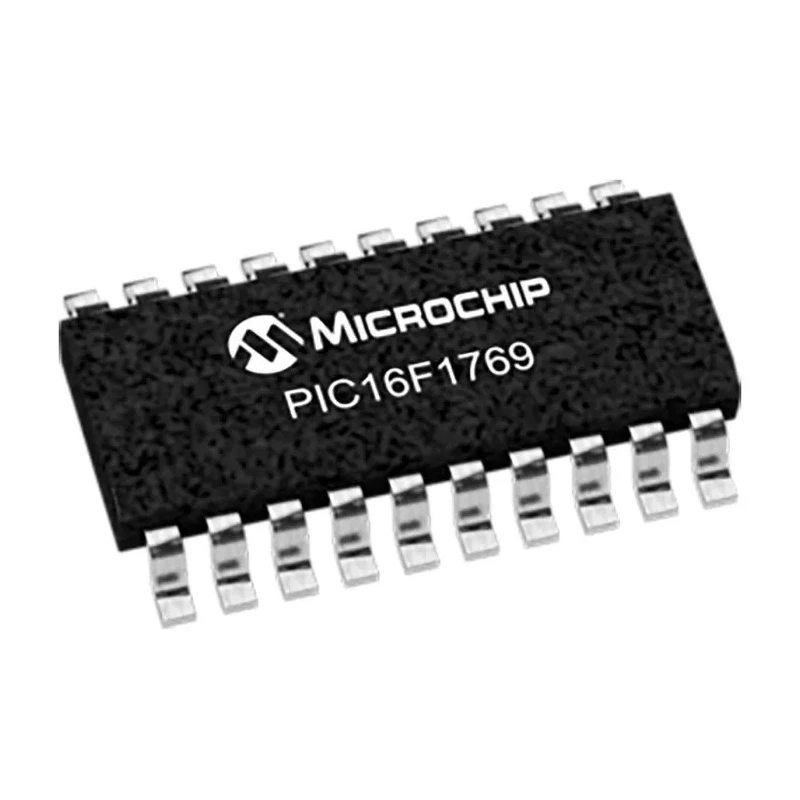

Microchip PIC16F1769 Microcontroller 8-bit PIC, 16 MHz, 14kB FLASH, 20-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 12.8mm |
| Model | PIC16F1769 |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC16F1769 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 4 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- 8-bit PIC microcontroller with enhanced mid-range core.
- Operates at a maximum clock frequency of 16 MHz for fast processing.
- Features 14kB of Flash program memory and 1kB RAM.
- Surface mount SOIC package with 20 pins and 22 programmable I/Os.
- Includes 12 × 10-bit ADCs, 4 analogue comparators, and 2 timers.
- Wide operating voltage range from 2V to 5.5V and temperature range -40°C to 85°C.
- RoHS compliant for environmentally safe applications.
Product Description
The Microchip PIC16F1769-I/SO is a high-performance 8-bit microcontroller designed for embedded and industrial applications requiring reliable processing and extensive peripheral connectivity. This model features Microchip's enhanced mid-range core, supporting up to 8 MIPS and equipped with 49 instructions and 16 stack levels for efficient execution.
With a maximum clock frequency of 16 MHz, the PIC16F1769-I/SO delivers robust performance suitable for real-time control tasks in automation, robotics, and instrumentation. It includes 14kB of flash program memory, 1kB of RAM, and supports advanced memory management, making it ideal for applications with moderate code and data requirements.
The device comes in a surface-mount SOIC package with 20 pins, 22 programmable I/O lines, and is inherently suited to compact, densely populated PCB layouts. It offers a wide range of connectivity: SPI, EUSART, I2C, RS-232, RS-485, and LIN interfaces ensure compatibility with industrial protocols, enabling flexible integration into diverse control systems.
Key features include 12 × 10-bit analog-to-digital converters for precision sensor input, 4 high-speed analog comparators, 2 timers, 2 × 100 mA high-current drive outputs, and multiple configurable logic cells. Integrated peripherals such as operational amplifiers, digital-to-analog converters, voltage reference, pulse-width modulation, and capture/compare/PWM modules expand its utility in signal processing and motor control environments.
The microcontroller supports a wide operating voltage range from 2V to 5.5V, maintains reliable operation in -40°C to 85°C ambient environments, and is RoHS-compliant. Additional features include Brown-out Reset, Power-on Reset, Watchdog Timer, and Extreme Low-Power modes for energy-efficient design.
Industrial design applications include HVAC controllers, automation modules, laboratory instrument controllers, and embedded signal acquisition systems. Its combination of peripheral-rich architecture and robust environmental tolerance makes it a versatile solution for manufacturing, water treatment, and commercial projects.
Microchip PIC16F1769-I/SO microcontroller integrates multiple analog and digital peripherals for versatile design. Enhanced mid-range PIC core delivers up to 8 MIPS with efficient instruction handling. Flexible serial communication interfaces support modern industrial and laboratory automation protocols.
Low-power modes and broad voltage tolerance enable energy-sensitive embedded products. RoHS-compliant; suitable for safe, environmentally friendly applications. Explore further Microchip Microcontrollers and industrial solutions in the Semiconductor category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16F1769 is 16 MHz, allowing for efficient processing in various applications.
This model features 14kB of FLASH program memory, suitable for moderate code requirements in embedded applications.
The PIC16F1769 includes 22 programmable I/O lines, providing flexibility for interfacing with various peripherals.
It operates within a voltage range of 2V to 5.5V, accommodating a variety of power supply configurations.
The device can operate in ambient temperatures ranging from -40°C to 85°C, making it suitable for harsh environments.
This microcontroller is packaged in a surface mount SOIC format with 20 pins, ideal for compact PCB layouts.
It supports multiple interfaces including SPI, EUSART, I2C, RS-232, RS-485, and LIN, ensuring compatibility with various industrial protocols.
The PIC16F1769 features 12 integrated 10-bit ADCs for precise sensor input and data acquisition.
The maximum power dissipation for this microcontroller is 1W, which is important for thermal management in designs.
This model includes 2 timers, which can be used for various timing and control applications.
The microcontroller is RoHS compliant, ensuring it meets environmental safety standards for use in electronics.
The dimensions of the PIC16F1769 are 2.35mm in height and 7.5mm in width, making it suitable for space-constrained applications.
