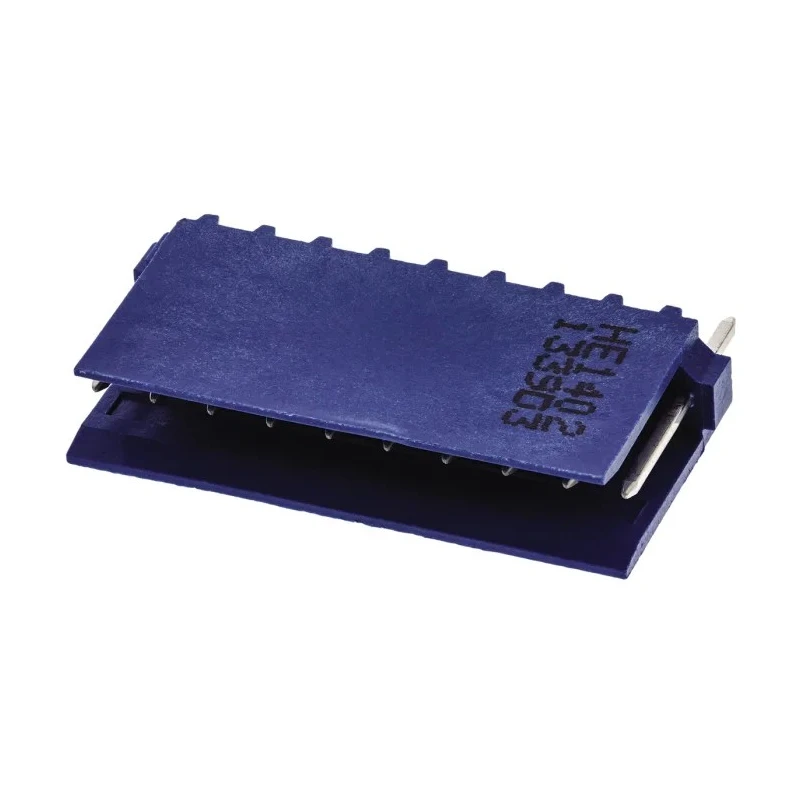

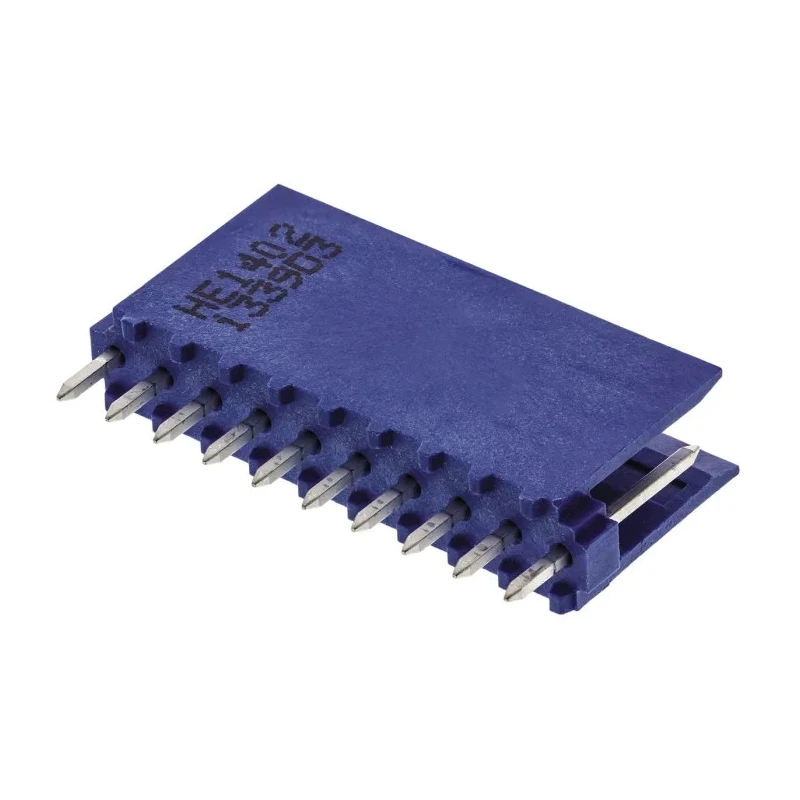

NEUTRAL AMPMODU Straight Through Hole PCB Header, 10 Contacts, Shrouded, 2.54 mm Pitch, 1 Row, Thermoplastic, 3 A, 500 V HE14

Free Delivery in India | Lowest Global Shipping Charges

NEUTRAL AMPMODU Straight Through Hole PCB Header, 10 Contacts, Shrouded, 2.54 mm Pitch, 1 Row, Thermoplastic, 3 A, 500 V HE14

Name: NEUTRAL AMPMODU Straight Through Hole PCB Header, 10 Contacts, Shrouded, 2.54 mm Pitch, 1 Row, Thermoplastic, 3 A, 500 V HE14
Brand: NEUTRAL
SKU: 88530
Price: 2.63 USD
Availability: InStock



Category PCB Header Brand NEUTRAL Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	NEUTRAL
Orientation	Straight
Current	3A
Model	HE14
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Series	AMPMODU HE14
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.79mm
HE14 10W 1/ROW STRT HDRBrand	NEUTRAL

Key Features

Features a shrouded design for pin protection and proper mating orientation.
Composed of high-temperature thermoplastic housing rated at UL 94V-0.
Supports up to 3 A current and 500 V voltage per contact.
Provides 10 phosphor bronze tin-plated male contacts in a single row with a 2.54 mm pitch.
Termination through hole and solder type for secure PCB mounting.
Integrated friction lock ensures secure mating connection.
Operating temperature range from minus 40 to 105 degrees Celsius.
Suitable for industrial, automation, automotive, test, and computer equipment applications.

Product Description

TE Connectivity 1-281695-0 AMPMODU HE14 Straight Through Hole PCB Header is designed to offer robust and precise interconnection solutions for wire-to-board connectivity in demanding electronic systems. The header features a shrouded configuration to safeguard pins against mechanical damage and to prevent mismating during assembly. Its thermoplastic housing is rated UL 94V-0 for high temperature applications, ensuring durable performance under challenging operational stresses.

With 10 phosphor bronze male contacts set in a single 2.54 mm pitch row, this connector guarantees precise and reliable PCB connections. The tin-plated contacts support a maximum of 3 A current and 500 V voltage, optimizing signal integrity and electrical performance. Through hole mounting with solder termination provides strong mechanical anchoring to the PCB, resistive to vibration and operational shocks common in industrial environments.

Polarization features and an integrated friction lock improve reliable mating, making it highly suitable for high-density assemblies and repeated connection/disconnection cycles. The blue housing not only offers easy identification but remains dimensionally stable across the wide temperature range of minus 40 to 105 degrees Celsius, suitable for broad industrial, automotive, test instrument, medical system, computing, telecommunications, storage equipment, and appliance applications.

As part of the proven AMPMODU HE14 interconnect system, this header mates with compatible AMPMODU HE14 IDC receptacles, supporting discrete wires or ribbon cables for maximum design flexibility. The connector system meets demanding requirements for reliability and manufacturability in automation and control systems, PCB interconnects, and complex electronic assemblies. Whether for prototyping or volume production, this header provides the quality and technical performance expected by professional engineers and OEMs.

Explore TE Connectivity's comprehensive range of AMPMODU HE14 PCB Headers, receptacle housings, and interconnect components in the EnvMart catalogue to build industry-leading electronic designs.
