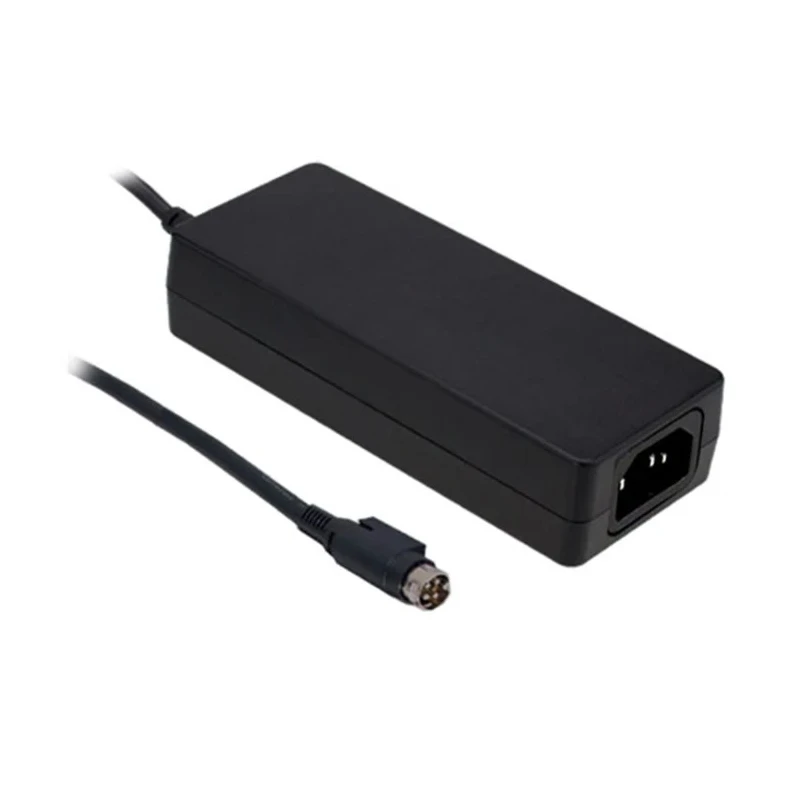

Mean Well AC/DC Adapter Type C, 90 - 264V AC Input, 20V DC Output, 6A Medical Grade GSM120A20-R7B

Mean Well’s GSM120A20-R7B is a high-performance medical-grade AC/DC adapter designed for reliable and efficient power delivery in industrial, laboratory, and medical device applications. The adapter supports a universal AC input range from 90V to 264V, making it compatible with global mains standards. It converts input AC power to a steady 20V DC output, capable of sourcing up to 6A current, ensuring devices receive consistent power whether used in hospitals, research labs, or industrial equipment setups.

Featuring a Type C plug and IEC 320-C14 input connector, the adapter prioritizes safety and secure connectivity. It measures 167mm in length, 67mm in width, and 35mm in depth, offering a space-saving power solution with a cable length of 1200mm for flexible positioning.

The GSM120A20-R7B complies with IEC 60950-1, UL 60950-1, and CE standards, underscoring its commitment to electrical safety and reliability. Supporting a maximum operating temperature of up to 70°C, it is suited for demanding environments, including laboratory instrumentation, medical devices, and industrial control systems.

This adapter is a member of the GSM120A series, recognized for its high efficiency up to 94%, ultra-low standby power usage below 0.15W, and Level V energy regulation compliance. It features a Class I power design (with earth pin), full-range universal AC input, and medical safety approvals. These make it ideal for precision applications where low leakage current and regulatory compliance are paramount.

The product’s durability, compact enclosure, and universally recognized connectors enable its integration into diagnostic equipment, laboratory analyzers, patient monitoring systems, and sensitive electronic devices across diverse sectors.

Typical applications include industrial automation, healthcare instrumentation, laboratory analysis tools, electronics manufacturing, and commercial equipment requiring robust and regulated DC power.

Medical-grade AC/DC adapter suitable for a wide range of electronic and laboratory equipment. Accepts universal input voltage range from 90V to 264V AC, ensuring global compatibility. Delivers a stable 20V DC output with a maximum output current of 6A.

Type C plug with IEC 320-C14 input connector for secure and reliable power connection. 1200mm cable length for flexibility in installation and usage. Complies with IEC 60950-1, UL 60950-1, and CE standards for electrical safety and quality.

Operates efficiently up to 94%, with ultra-low no-load power consumption below 0.15W. Maximum operating temperature rated up to 70°C for demanding environments. Compact enclosure: 167mm length, 67mm width, 35mm depth for space-constrained setups.
