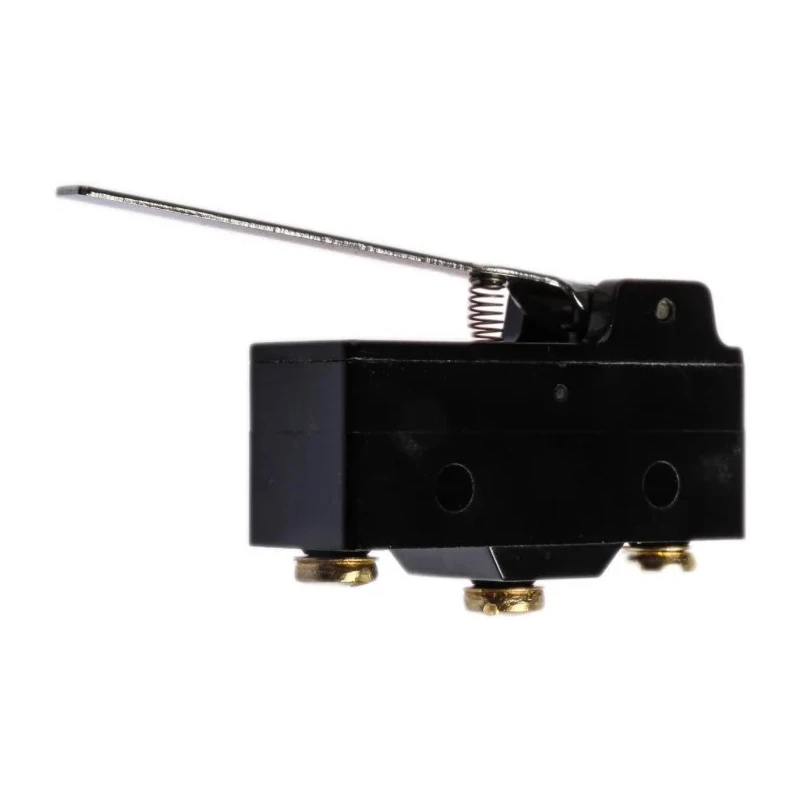

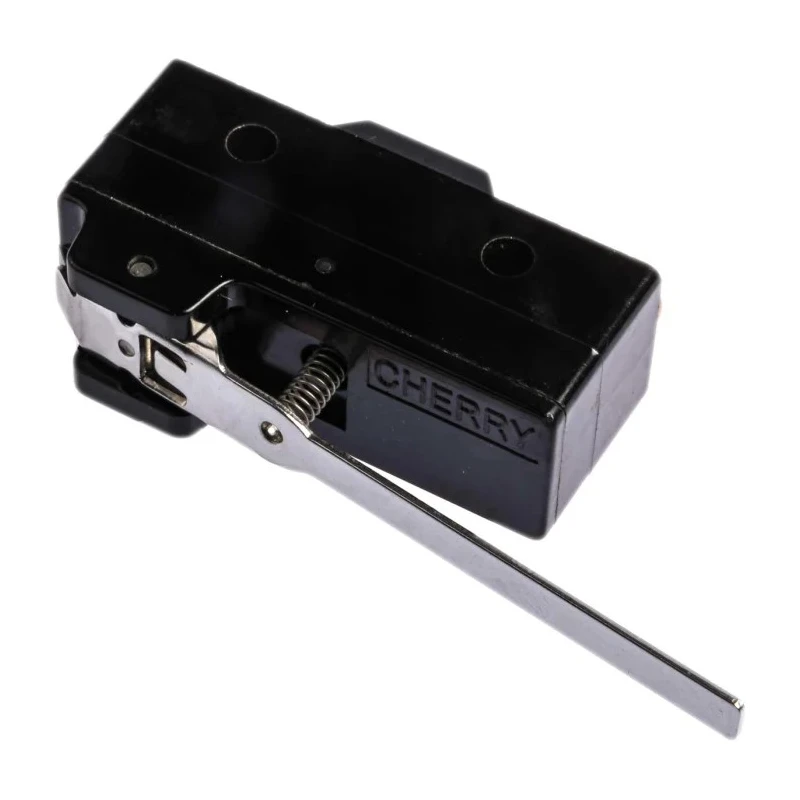

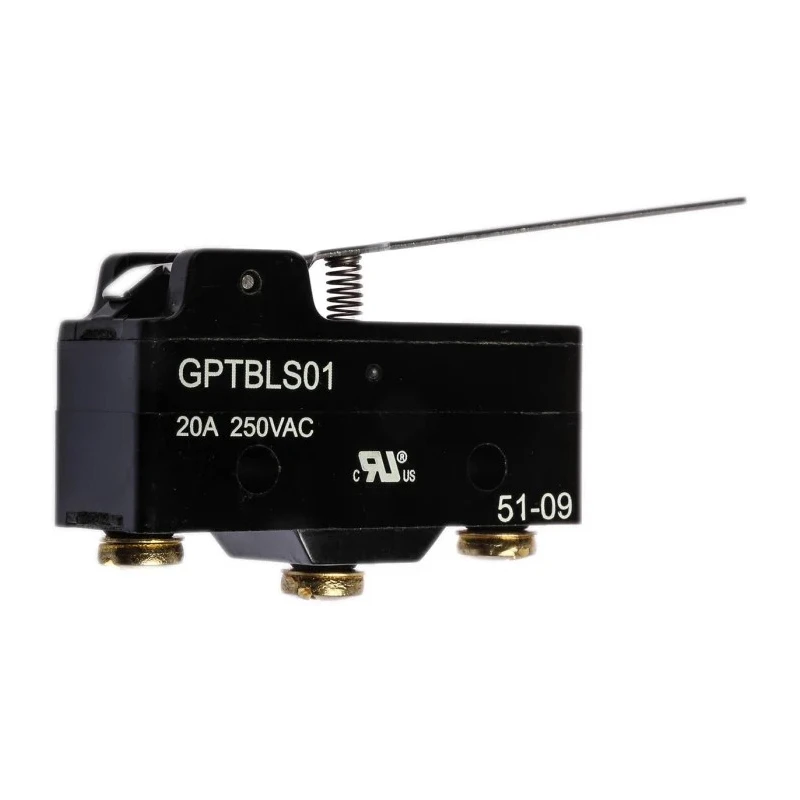

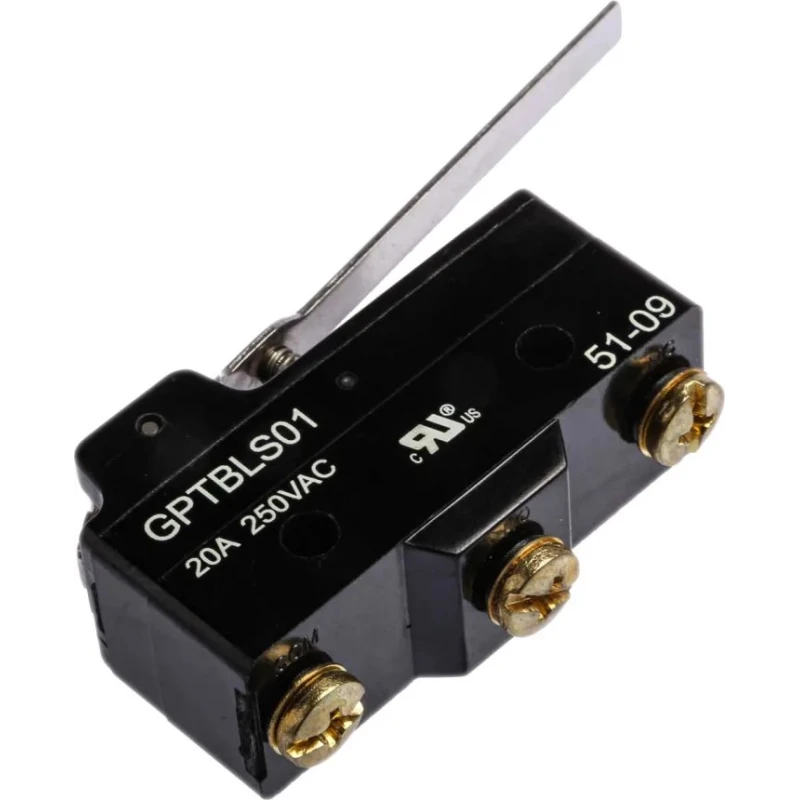

ZF Long Hinge Lever Micro Switch, Screw Terminal, 20A, 250V AC, SPDT GPTBLS01
Specifications
| Country of Origin | China |
|---|---|
| Brand | ZF |
| Model | GPTBLS01 |
| Series | GP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Long Hinge Lever |
| Temperature Rating | -20ºC to 85ºC |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |

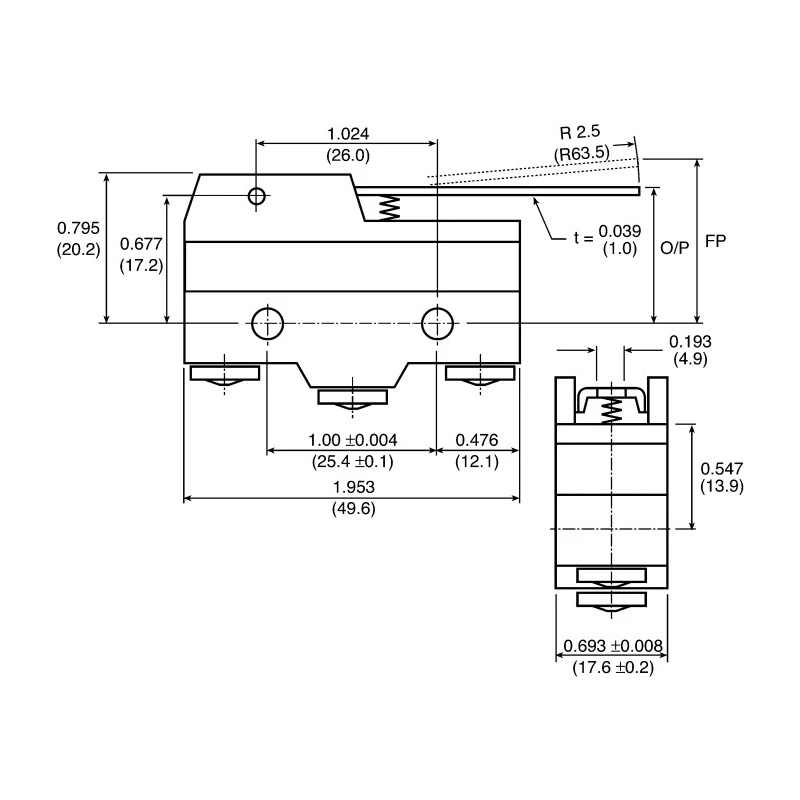

| Housing dimensions | Height: Length: 49.6mm Height: 22mm Width:17.6mm |
| Standards/Approvals | RoHS |
| Switch Contact Current | 20A |
| Operating Force | 0.78N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Stainless |
| Microswitch Type | General Purpose Switch |
| Case & cover material | Phenolic |
Key Features
- Operates with a long hinge lever actuator for precise triggering.
- Supports screw terminal connection for secure installation.
- Rated for 20A current at 250V AC for robust electrical performance.
- SPDT contact configuration to switch between circuits efficiently.
- Phenolic case and cover ensures thermal and mechanical durability.
- Stainless steel actuator supported for corrosion resistance.
- Wide operating temperature range from -20°C to 85°C.
- Mechanical life of up to 1 million operations for heavy-duty use.
Product Description
The ZF GPTBLS01 Long Hinge Lever Micro Switch is a robust general-purpose switch designed for reliable operation in industrial, automation, and control environments. Featuring a long hinge lever actuator, this micro switch provides highly accurate triggering and can be used in applications that require fine positional sensing or actuation.
This micro switch is equipped with screw terminals, allowing for easy and secure wire connections during installation or replacement. The device operates on a single pole double throw (SPDT) contact configuration, which enables it to efficiently switch between two circuits - a feature often required in complex automation or machinery controls.
With an electrical rating of 20A at 250V AC, the GPTBLS01 delivers dependable performance for medium to high-power control systems. The phenolic case and cover ensure thermal stability and mechanical strength, protecting sensitive contacts from environmental influences and mechanical stress. The actuator material is stainless steel, which is ideal for corrosive environments and guarantees long service life.
Offering a mechanical life of up to 1,000,000 operations, this micro switch is engineered for heavy-duty cycling and continuous use in demanding industrial applications. The low operating force of only 0.78N means it is responsive even to light mechanical triggers, making it perfect for signal detection in precision assemblies, HVAC systems, electromechanical setups, and safety interlocks.
The operating temperature range spans from -20°C to 85°C, making this switch suitable for a wide range of environments, including cold stores, production lines, and commercial facilities. It complies with RoHS standards, reflecting its environmentally safe design and material composition.
Common use cases include industrial automation, machinery interlock, safety and control panels, HVAC systems, process control installations, and laboratory equipment. Explore more high-performance Micro Switches and automation components from ZF to meet your specific electrical control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch is rated for 20A at 250V AC, suitable for medium to high-power control systems.
It features a single pole double throw (SPDT) contact configuration, allowing it to switch between two circuits efficiently.
This model utilizes a long hinge lever actuator, which provides precise triggering for various applications.
The actuator is made of stainless steel for corrosion resistance, while the case and cover are constructed from phenolic material for thermal stability and mechanical strength.
It has a mechanical life rated for up to 1,000,000 operations, designed for heavy-duty use.
This model supports screw terminal connections, allowing for secure installation and easy wire connections.
Yes, it complies with RoHS standards, indicating its environmentally safe design and material composition.
The housing dimensions are approximately 49.6mm in length, 22mm in height, and 17.6mm in width.
Common applications include industrial automation, machinery interlocks, safety panels, HVAC systems, and laboratory equipment.
The ZF GPTBLS01 micro switch is manufactured in China.
