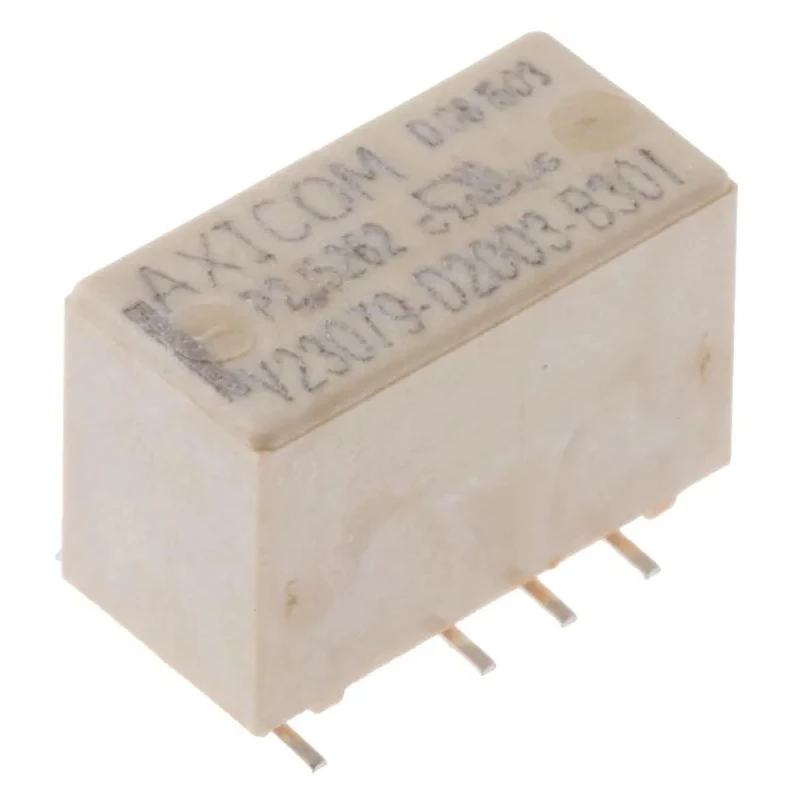

TE Connectivity Axicom P2 PCB Signal Relay 12V DC Coil, DPDT, 2A, Surface Mount, Gold Plated, V23079-D2003-B301

TE Connectivity Axicom P2 V23079-D2003-B301 is a high-performance PCB signal relay designed for demanding electronic applications requiring secure switching at low power and high reliability. This relay is equipped with a 12V DC monostable coil, offering a DPDT (Double Pole Double Throw) contact configuration for flexible circuit control. Its slimline design allows for compact integration in modern electronic devices and instrumentation.

The relay is built to manage switching currents of up to 2A and voltages of 250V AC or 220V DC, making it suitable for a wide array of applications including telecommunication systems, consumer electronics such as set-top boxes and HiFi units, and industrial control, medical, and automotive equipment. Gold plated bifurcated contacts ensure optimal conductivity, low contact resistance (50mΩ), and a long operational life under frequent switching cycles.

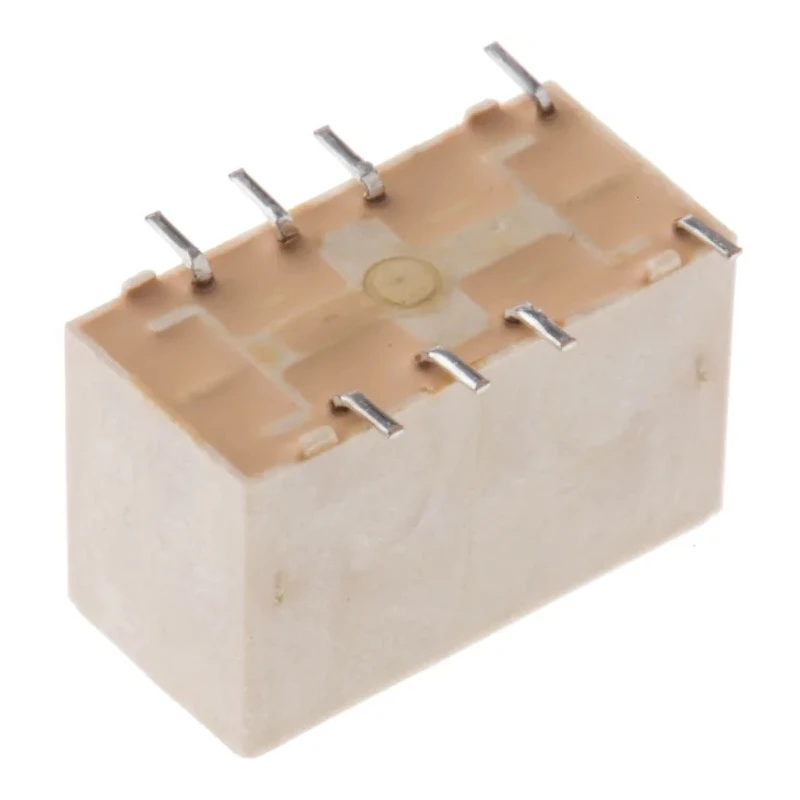

The V23079-D2003-B301 features surface mount terminals for straightforward PCB integration and immersion cleanability, rated RTIII (IP67) for enhanced environmental protection. The relay's coil resistance of 1000Ω achieves a nominal power consumption of just 140mW, supporting energy-sensitive circuit designs. Insulation resistance exceeds 1 GΩ at 500V DC for safety and operational assurance.

This relay supports robust surge capability as per Telcordia TR-NWT-001089 and IEC 60950 standards, with surge withstand voltages up to 2000V between open contacts and 2500V between coil and contacts. The product is compliant with RoHS and REACH directives, validating its high-quality construction and suitability for global procurement programs.

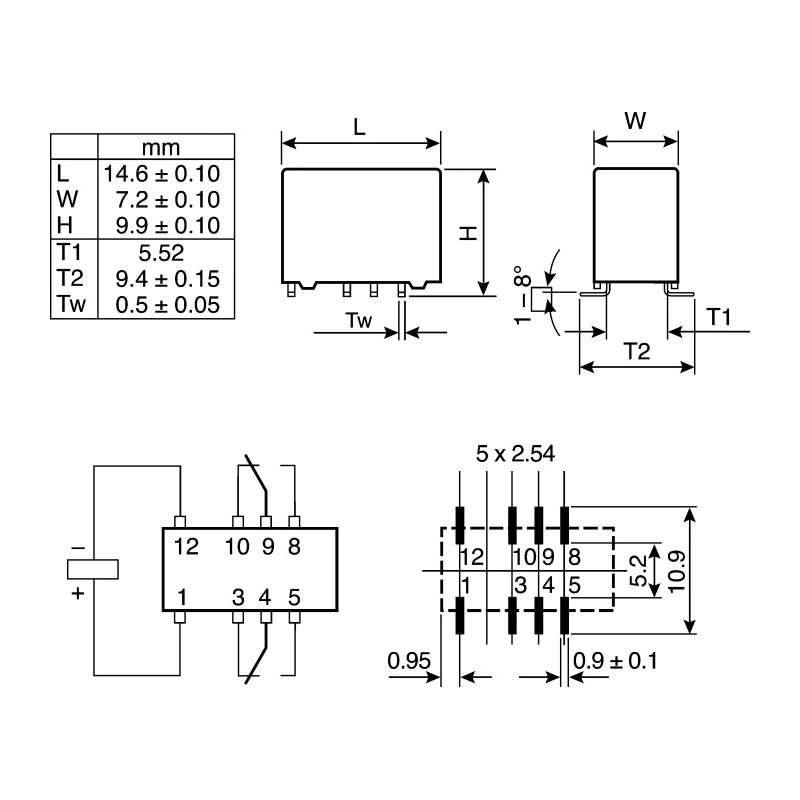

Applications span communication equipment (ringing and test access, PABX, VOIP), office automation, control systems, medical devices, and automotive electronics. Its compact form factor (14.5mm × 7.4mm × 10.4mm) facilitates space-efficient PCB design and high-density mounting. The relay operates reliably across a wide temperature range, from -40°C to 85°C, ensuring stability in industrial and commercial environments.

PCB-mounted Signal Relay suited for telecommunications, consumer electronics, and control equipment. Operates with a 12V DC coil voltage and supports DPDT contact arrangement for versatile circuit applications. Capable of handling switching currents up to 2A and voltages of 250V AC or 220V DC.

Bifurcated gold plated silver nickel contacts for enhanced reliability and low resistance. Axicom P2 series with slim dimensions and surface mount terminal type for modern PCB integration. Immersion cleanable design, IP67, suitable for automated production and harsh environments.

Wide operating temperature range and low power consumption, ideal for sensitive electronic circuits. RoHS and REACH compliance for international safety standards.

Suitable for communications, consumer electronics, industrial control panels, medical equipment, and automotive electronic modules. Explore other TE Connectivity relays and signal conditioning products on EnvMart for advanced electronic designs.
