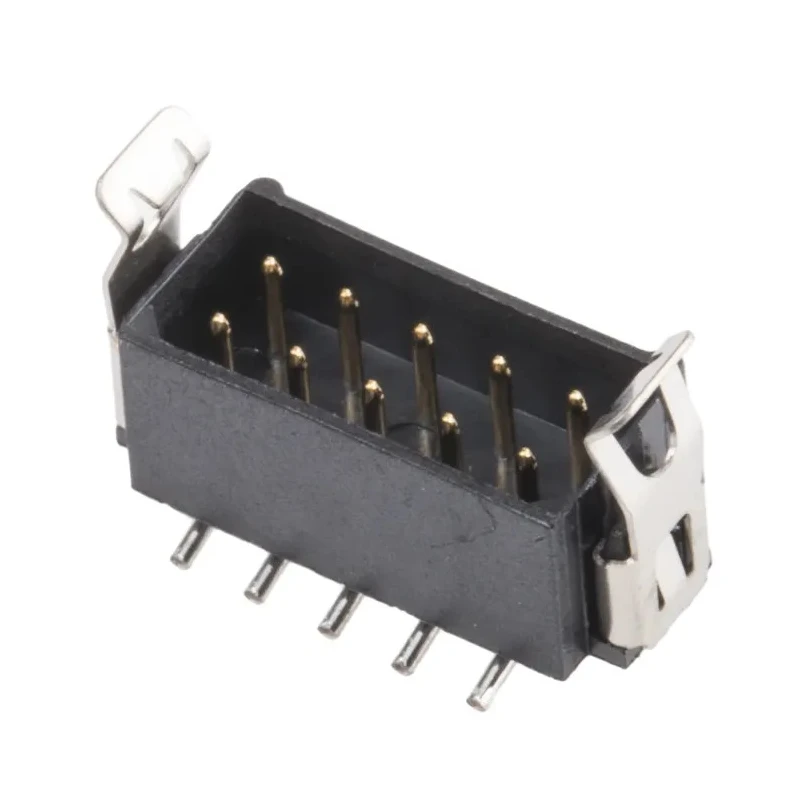

HARWIN Datamate L-Tek Series Right Angle Surface PCB Header, 10 Contacts, Shrouded, 2 mm Pitch, 2 Row, 3A, 120V, M80-8281042

Free Delivery in India | Lowest Global Shipping Charges

HARWIN Datamate L-Tek Series Right Angle Surface PCB Header, 10 Contacts, Shrouded, 2 mm Pitch, 2 Row, 3A, 120V, M80-8281042

Name: HARWIN Datamate L-Tek Series Right Angle Surface PCB Header, 10 Contacts, Shrouded, 2 mm Pitch, 2 Row, 3A, 120V, M80-8281042
Brand: HARWIN
SKU: 87988
Price: 4.83 USD
Availability: InStock



Category PCB Header Brand HARWIN Condition New

Specifications

Country of Origin	United Kingdom
Voltage	120V
Brand	HARWIN
Orientation	Right Angle
Current	3A
Model	M80-8281042
Mount Type	Surface
Housing Material	Polyphenylene Sulphide
Contact Material	Phosphor Bronze
Series	Datamate L-Tek
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Standards/Approvals	BS9525-F0033, MIL C 55302
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board

Key Features

Features a right angle surface mount configuration for efficient PCB integration.
Equipped with 10 male contacts arranged in 2 rows with a 2 mm pitch, allowing reliable board-to-board connections.
Constructed from durable polyphenylene sulphide housing material ensuring chemical, thermal and mechanical resistance.
Contact material is phosphor bronze plated with gold for superior conductivity and corrosion resistance.
Designed as a shrouded connector system, suitable for high-vibration and harsh environments.
Supports solder-type termination and operates at voltages up to 120 V with a maximum current rating of 3 A.
Operating temperature range is -55°C to 125°C, suitable for demanding industrial and laboratory conditions.
Complies with BS9525-F0033 and MIL C 55302 technical standards for high reliability.

Product Description

The HARWIN M80-8281042 Datamate L-Tek Series Right Angle Surface PCB Header is a high-quality connector designed for rugged industrial and laboratory applications. This header features 10 male contacts organized in 2 rows with a fine 2 mm pitch, ensuring secure and reliable connections in board-to-board and wire-to-board configurations.

Its right angle surface mount design delivers space-saving integration on PCBs while supporting solder-type termination for robust electrical connections. The housing is made from polyphenylene sulphide, providing excellent mechanical, thermal and chemical resistance ideal for applications subject to vibration, shock and acceleration.

The contact material is phosphor bronze, plated with gold, delivering optimal conductivity and preventing corrosion over extended operational cycles. The shrouded connector design offers enhanced safety during mating, protecting the contacts against environmental hazards and mechanical damage. High reliability is further assured, with the Datamate L-Tek Series known for durability through frequent mating cycles without performance degradation.

This header operates at a voltage of up to 120 V and a maximum current rating of 3 A. It is engineered to function reliably within a wide temperature range from -55°C to 125°C, making it suitable for demanding industrial, laboratory, manufacturing, and commercial electronics environments. The connector is specifically designed to meet stringent requirements, complying with BS9525-F0033 and MIL C 55302 standards for defense and aerospace-grade reliability.

Typical industrial use cases include high-performance PCBs in instrumentation, data acquisition, automation systems, embedded electronics, robotics, and control equipment. The Datamate L-Tek series is recognized for its high vibration tolerance, making it ideal for military, automotive, telecom, and harsh-industrial deployments.

For more PCB headers and HARWIN connectors, explore our Electronics & Electricals > Electronics Components > PCB Headers selection at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a maximum current rating of 3 A, making it suitable for various applications requiring reliable electrical connections.

It operates at voltages up to 120 V, which allows for versatile use in different electronic applications.

The contacts are arranged with a pitch of 2 mm, facilitating compact and efficient PCB layout.

The housing is made from polyphenylene sulphide, while the contacts are constructed from phosphor bronze and plated with gold for enhanced conductivity and corrosion resistance.

It operates effectively within a temperature range of -55°C to 125°C, suitable for demanding environments.

This connector features 10 male contacts organized in 2 rows, providing reliable connections for various applications.

It supports solder-type termination, ensuring robust and secure electrical connections on PCBs.

Yes, it is designed as a shrouded connector system suitable for high-vibration and harsh environments, enhancing its reliability in challenging conditions.

It complies with BS9525-F0033 and MIL C 55302 technical standards, ensuring high reliability for industrial and aerospace applications.

It is suitable for high-performance PCBs in instrumentation, data acquisition, automation systems, and robotics, among others.

This model features a right angle orientation, which allows for efficient space-saving integration on PCBs.

The connector is manufactured in the United Kingdom, reflecting its quality and engineering standards.
