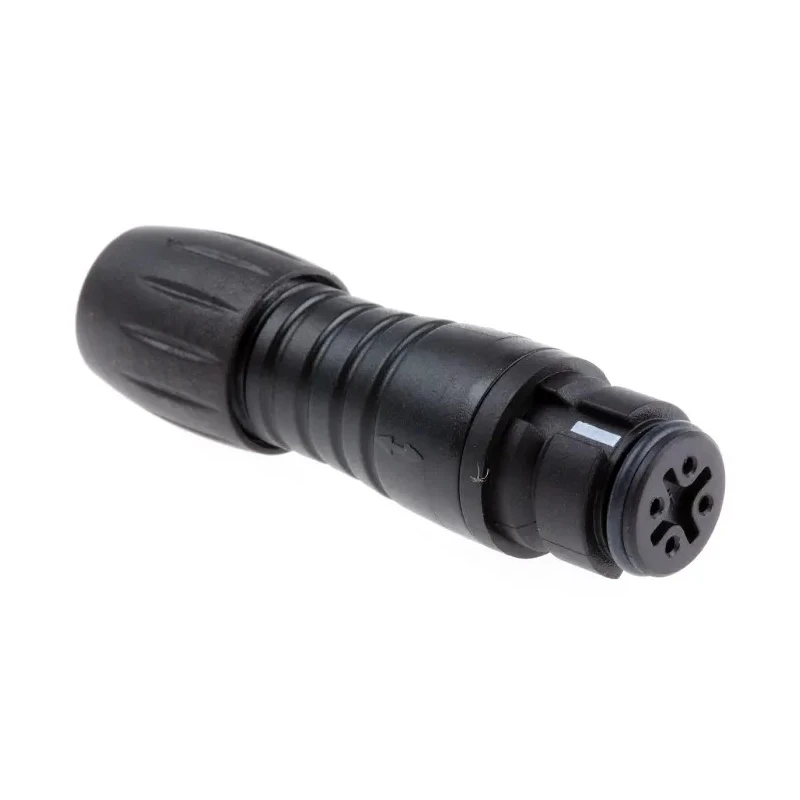

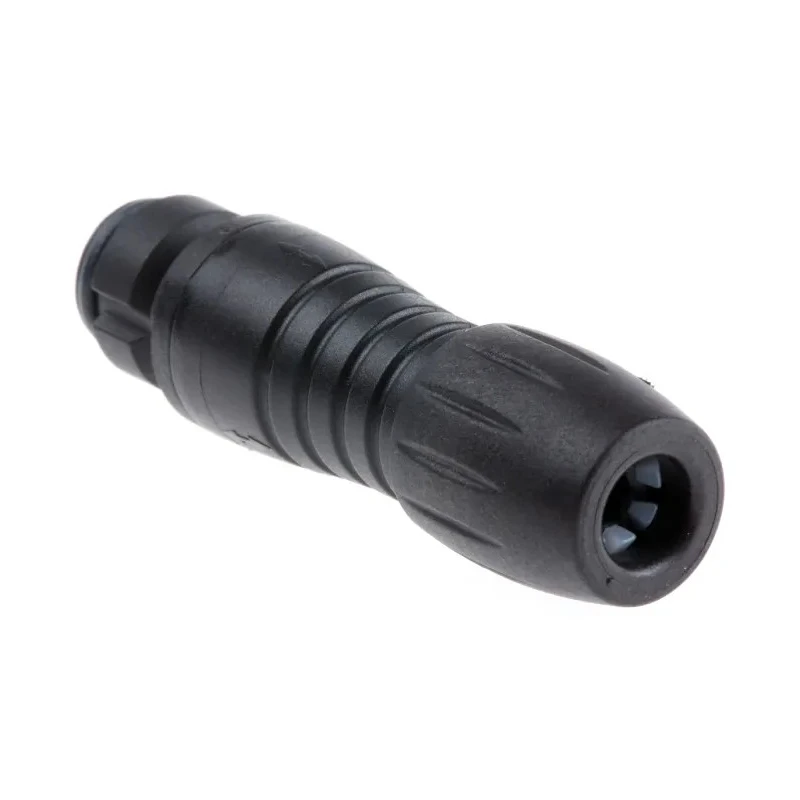

binder Circular Connector 4 Contacts Subminiature Cable Socket Female IP67 2.5A 125V Solder Termination 99-9210-00-04
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125.0V |
| Brand | binder |
| Orientation | Straight |
| Current | 2.5A |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | 620 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | UL |
| Pole Format | 4 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | 11.5 |
| Mating Type | Snap-In |
| Connector Size | Subminiature |
| Plug/Socket | Socket |
Key Features
- Provides a robust cable-mounted connection for industrial applications.
- Features four gold-plated bronze contacts with a 2.5A current rating per contact.
- Polyamide enclosure ensures chemical resistance and mechanical durability.
- IP67 sealing offers protection against dust and temporary water immersion.
- Solder termination facilitates secure and low-resistance cable installation.
- Operates at voltages up to 125V and across a temperature range from -25°C to 85°C.
- Snap-in mating allows quick and reliable cable installation and maintenance.
- Suitable for sensor cabling, control panels, and instrumentation in harsh environments.
Product Description
The Binder 99-9210-00-04 Circular Connector is engineered for compact, sealed cable connections in demanding industrial environments. This connector is part of Binder's 620 Series, featuring a subminiature form factor that is ideal for installations requiring minimal space.
Designed for straight in-line cable mounting with a snap-in mating type, it provides a secure and simple connection as a female socket. The device includes four electrical contacts, each rated for 2.5 amps, making it suitable for low-voltage signal and power distribution.
The contacts are made of bronze and plated with gold to enhance conductivity and reduce resistance, as well as to minimize corrosion during repeated use. The enclosure is constructed from polyamide, chosen to withstand mechanical stresses and chemical exposure commonly encountered in industrial environments.
With an IP67 rating, this connector is dust-tight and capable of withstanding temporary immersion in water, making it suitable for wash-down areas and outdoor installations. The solder termination style allows cables to be affixed securely, resulting in reliable electrical connections with minimal resistance.

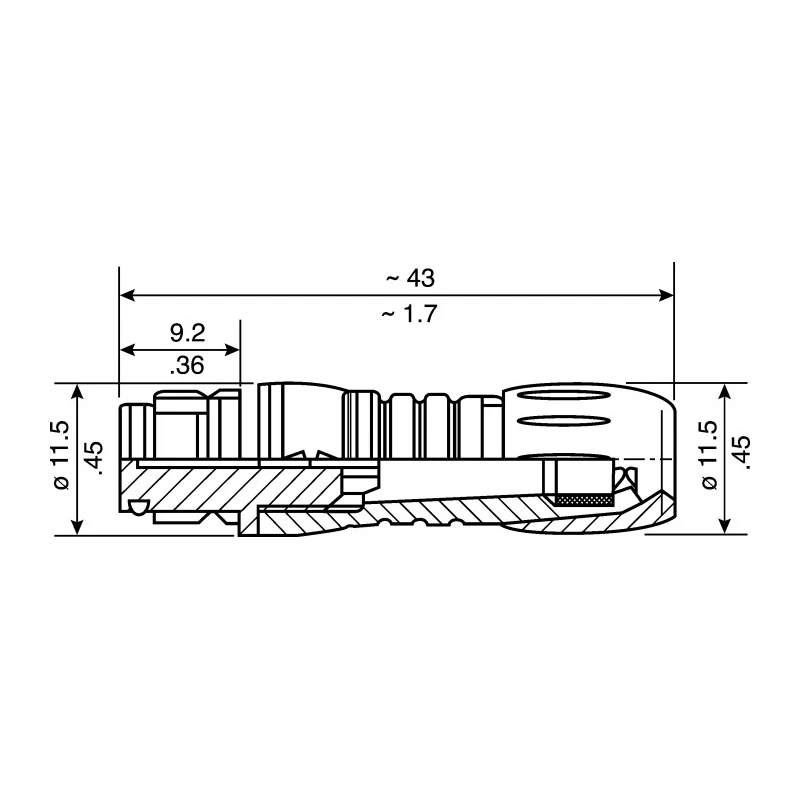

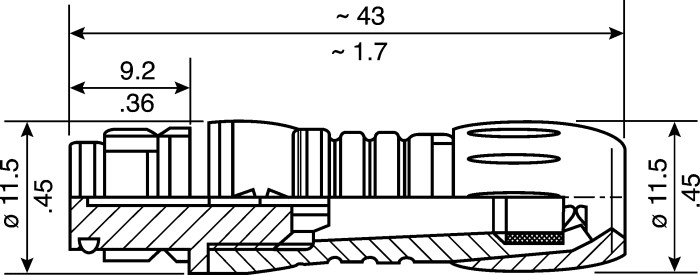

Operating across a wide temperature range from -25°C to 85°C, the connector can be deployed in applications where environmental conditions fluctuate. The straight orientation and compact shell size (11.5 mm) suit tight-panel or harness layouts.
Key use cases include automation sensor cabling, machine control panel harnesses, outdoor instrumentation, and small motor or actuator connections. The product is approved to UL standards for safety in industrial electrical systems.
For engineers needing a durable, easy-to-install cable connector that delivers stable signal or low-power transmission under challenging conditions, the Binder 99-9210-00-04 is an optimal solution. Explore more Industrial Circular Connectors from Binder to match your instrumentation, automation or machinery needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each contact in this model is rated for 2.5A, making it suitable for low-voltage signal and power distribution applications.
This connector has an IP67 rating, which means it is dust-tight and can withstand temporary immersion in water, suitable for harsh environments.
The housing is made from polyamide, while the contacts are made of bronze and plated with gold to enhance conductivity and reduce corrosion.
It operates within a temperature range of -25°C to 85°C, allowing for deployment in various environmental conditions.
The binder Circular Connector features four contacts, designed for efficient electrical connections in compact spaces.
It utilizes a solder termination style, which facilitates secure and low-resistance cable installation.
The shell size of this unit is 11.5 mm, making it suitable for tight-panel or harness layouts.
This model features a snap-in mating type, allowing for quick and reliable cable installation and maintenance.
Yes, it is approved to UL standards for safety in industrial electrical systems.
It is suitable for sensor cabling, control panels, and instrumentation in harsh environments, particularly in automation and machine control.
The connector has a straight orientation, designed for in-line cable mounting.
The country of origin for this model is Germany.
