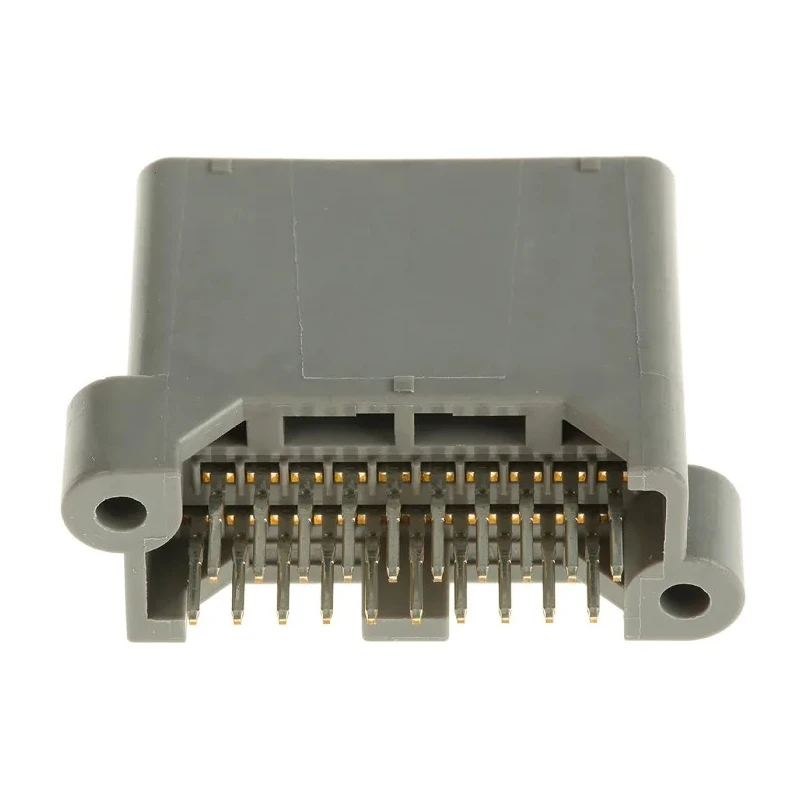

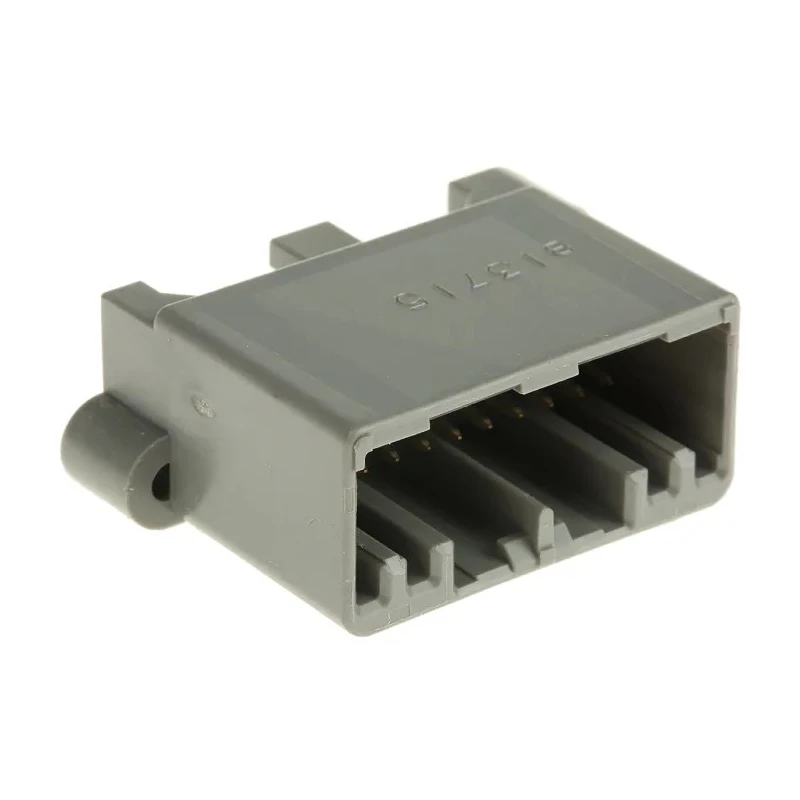

JAE MX34 Series Straight Through Hole PCB Header 20 Contacts 2.2 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Straight |
| Current | 3A |
| Model | MX34 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Syndiotactic Polystyrene |
| Contact Material | Brass |
| Series | MX34 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 690-8953Brand: JAEManufacturers Part No.: MX34020UF1 |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| For MX34 socket housings see typical stock numbers | 690-9852 |
Key Features
- The connector features a glass filled syndiotactic polystyrene housing for durability.
- It supports a current rating of 3A and operates between -40°C to 85°C.
- Termination type is solder with tin-plated brass contacts ensuring strong conductivity.
- Designed specifically for automotive applications with a double locking mechanism for secure mating.
- The 20-contact, 2-row configuration facilitates compact and reliable PCB connections.
Product Description
JAE MX34020UF1 is a high-quality PCB header from the MX34 series, featuring a straight through hole type suitable for wire-to-board connections. This product has 20 contacts arranged in two rows with a 2.2 mm pitch, ensuring precise and reliable electrical connections. The connector includes a shrouded, glass filled syndiotactic polystyrene housing that provides excellent mechanical strength and temperature resistance, supporting operating temperatures from -40°C to 85°C.
With a contact current rating of 3A and solder termination with tin-plated brass contacts, this header is well suited to automotive and industrial electronic applications where durability and secure mating are critical. The double locking mechanism and box-type pin header design ensure a stable and durable connection, reducing connection failures in demanding environments.
The MX34 series connectors reduce mating and unmating forces to 80N or less, improving handling and installation efficiency. This connector system is designed to meet automotive requirements, providing high resistance to twisting forces and a spring retainer that prevents incomplete contact insertion to guarantee connection integrity.
Applications include automotive electronics, industrial control systems, and PCB assemblies requiring robust wire-to-board interfaces. The product is RoHS compliant and designed to enhance productivity and reliability in manufacturing and assembly.
The connector features a glass filled syndiotactic polystyrene housing for durability. It supports a current rating of 3A and operates between -40°C to 85°C. Termination type is solder with tin-plated brass contacts ensuring strong conductivity.
Designed specifically for automotive applications with a double locking mechanism for secure mating. The 20-contact, 2-row configuration facilitates compact and reliable PCB connections. Explore more automotive PCB Headers and connectors in the Electronics & Electricals category on EnvMart for your electronic component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A.
It operates between -40°C to 85°C.
The termination type is solder with tin-plated brass contacts.
It features 20 contacts arranged in two rows.
The pitch is 2.2 mm.
The housing is made from glass filled syndiotactic polystyrene.
Yes, it is designed specifically for automotive applications and industrial electronic applications.
It includes a double locking mechanism to ensure secure mating.
It utilizes a wire-to-board connector system.
The orientation is straight.
The country of origin is India.
Applications include automotive electronics, industrial control systems, and PCB assemblies requiring robust wire-to-board interfaces.
