JAE MX34 Series Right Angle Through Hole PCB Header, 40 Contact(s), 2.2 mm Pitch, 2 Row, Shrouded

Free Delivery in India | Lowest Global Shipping Charges

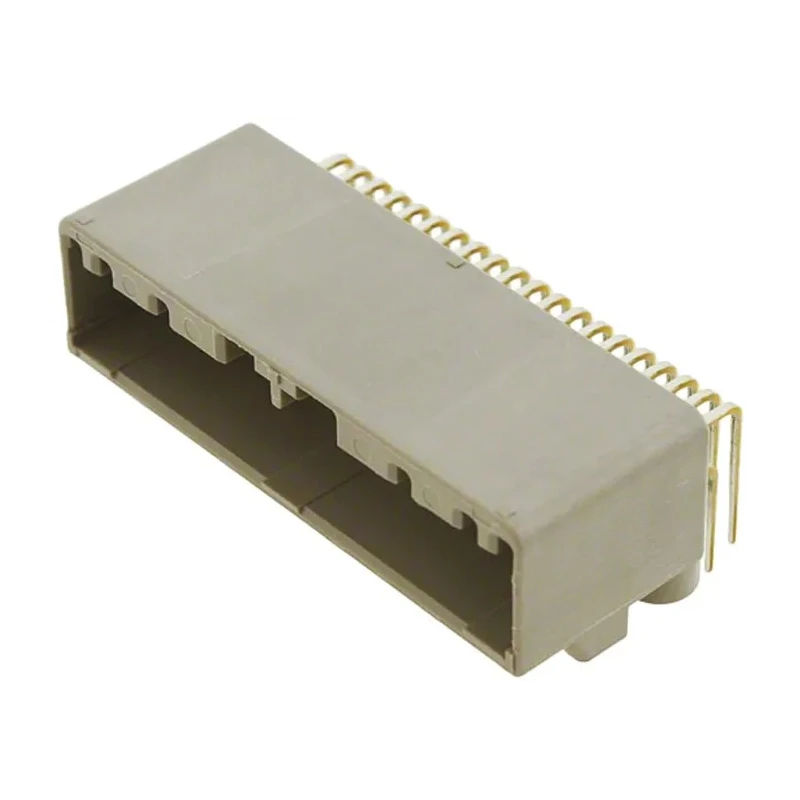

JAE MX34 Series Right Angle Through Hole PCB Header, 40 Contact(s), 2.2 mm Pitch, 2 Row, Shrouded



Category PCB Headers Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Right Angle
Current	3A
Model	MX34
Mount Type	Through Hole
Housing Material	Glass Filled Syndiotactic Polystyrene
Contact Material	Brass
Series	MX34
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.2mm
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	690-8900PBrand: JAEManufacturers Part No.: MX34040NF2
Contact Plating	Tin
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
For MX34 socket housings see typical stock numbers	690-9852

Key Features

The MX34 series is designed for automotive use with a double locking mechanism for secure mating.
Features 40 male brass contacts plated with tin for reliable conductivity.
Constructed with glass filled syndiotactic polystyrene housing for robust durability and shrouded for added protection.
Right angle orientation and through hole mount provide easy PCB integration.
Supports a current rating of 3A and a temperature range from -40 °C to 85 °C.
2-row connector with a 2.2 mm row pitch enhances compact installation.
Contacts have proven resistance to twisting and external mechanical forces with double leaf spring design.
Included box-type pin header ensures secure external force resistance and improved workability.

Product Description

JAE MX34040NF2 Right Angle Through Hole PCB Header is part of the MX34 series designed for automotive and industrial electronic applications. This connector offers a robust double locking mechanism to ensure secure and reliable cable-to-board interfacing. The housing is made from glass filled syndiotactic polystyrene, providing durability and electrical insulation, while the shrouded design protects contacts from physical damage and contamination.

The connector features 40 male brass contacts plated with tin to deliver stable electrical conductivity, arranged in 2 rows with a 2.2 mm pitch and row spacing. It allows right angle orientation perfect for tight PCB layouts and through hole mounting for mechanical stability in manufacturing environments. With a current rating of 3 amps and an operating temperature range from -40 °C to +85 °C, this PCB header is suitable for demanding automotive and industrial environments.

The MX34 series is engineered for ease of assembly and maintenance, with the contacts resistant to twisting and equipped with a double leaf spring for enhanced mechanical strength. The pin header’s box-type design provides further resistance to external forces, improving connector longevity and reliability.

This product finds applications in automotive electronics, industrial machinery, electronic device manufacturing, and assembly where reliable, compact, and durable PCB connections are required. It supports wire-to-board connectivity with solder termination for permanent, secure joints.

The MX34 series is designed for automotive use with a double locking mechanism for secure mating. Features 40 male brass contacts plated with tin for reliable conductivity. Constructed with glass filled syndiotactic polystyrene housing for robustness and shrouded protection.

Right angle orientation and through hole mount provide stable PCB integration. Supports 3A current and operating temperatures from -40 °C to 85 °C. 2 rows with 2.2 mm pitch facilitate compact layout. Contacts resist twisting with double leaf spring for mechanical strength.

Box-type pin header improves resistance to external forces. Ideal for automotive, industrial, and electronic manufacturing applications. Solder termination type for secure cable connections. Explore similar PCB Headers and connectors in the Electronics & Electricals category at EnvMart.
