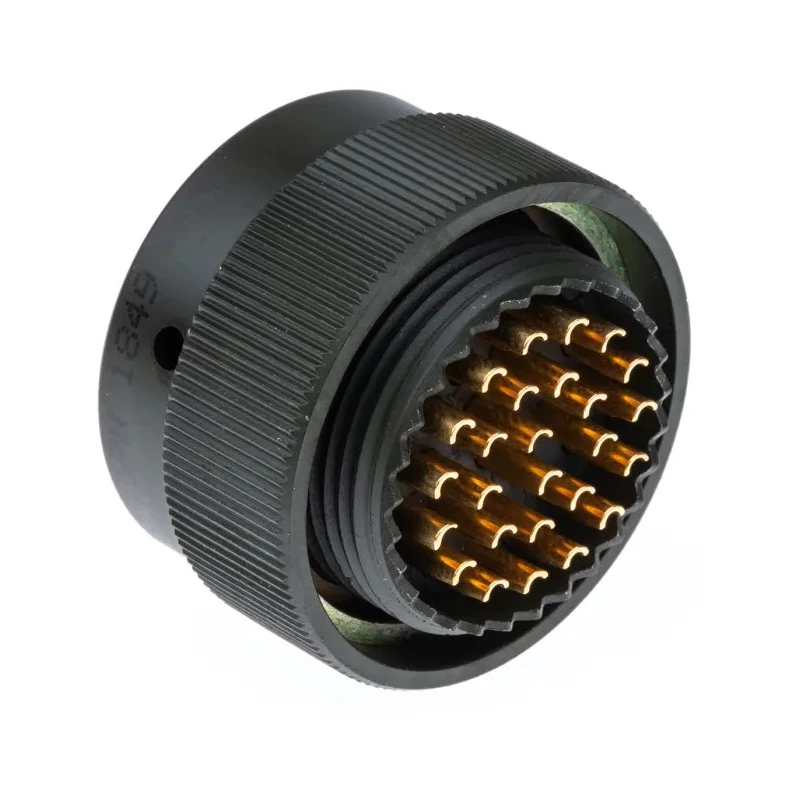

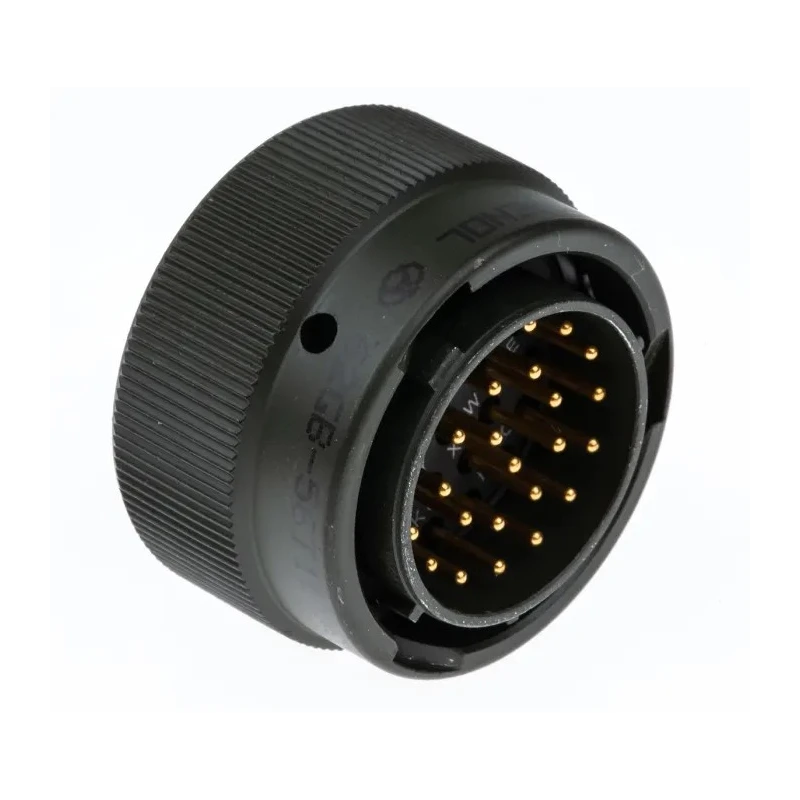

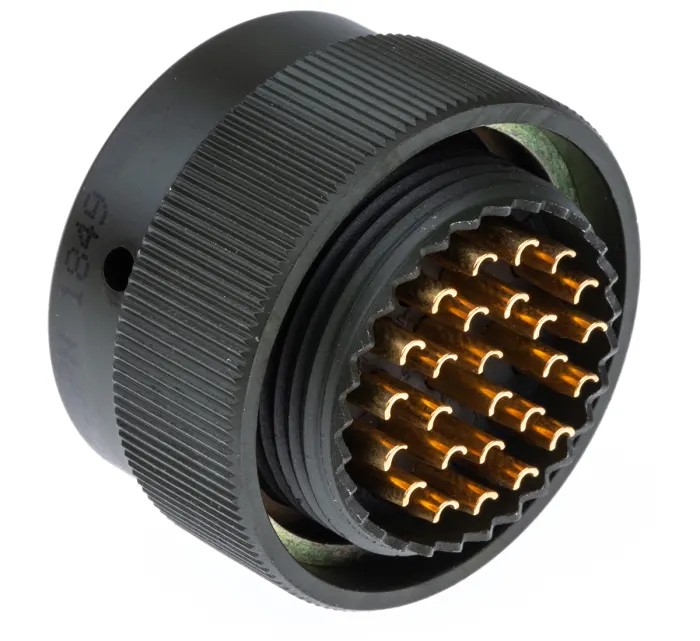

Amphenol Limited MIL Spec Circular Connector Straight Cable, 26 Contacts, Male, Olive Shell, Size 16 62GB-56T16-26PN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 700V dc |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Model | 62GB-56T16-26PN |
| Mount Type | Cable |
| Series | 62 GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 16 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Shell Plating | Zinc Cobalt |
Key Features
- Compliant with MIL-DTL-26482 military specification for assured performance in critical applications.
- Features a secure bayonet lock mating mechanism for fast and reliable connectivity.
- Aluminium shell with zinc cobalt olive drab plating ensures high corrosion resistance and durability.
- Suitable for cable-mount installation with solder termination and normal orientation inserts.
- Operates across a wide temperature range from -55°C to 125°C, enhancing suitability for harsh environments.
- Gold-plated contacts provide excellent conductivity and long-term signal reliability.
- Distinctive keying to prevent mismating of connectors in complex systems.
- Ideal for military, transportation, aerospace, and industrial automation environments.
Product Description
The Amphenol Limited 62GB-56T16-26PN is a straight, cable-mount MIL Spec Circular Connector engineered to meet the stringent requirements of military and industrial systems. With 26 male contacts and a 700V DC voltage rating, this connector ensures stable and secure electrical connections in demanding technical environments where reliability and performance are critical.
This connector is constructed with a solid aluminium alloy shell and finished with a zinc cobalt olive drab plating, offering robust resistance to corrosion and wear, even when exposed to moisture, chemicals, or temperature extremes. A bayonet lock coupling system enables rapid, sure connection and reliable retention, reducing installation and maintenance time while preventing accidental disengagement in vibration-heavy conditions.
The 62GB-56T16-26PN is designed for cable mounting, with solder bucket contacts that ensure dependable wire termination. Its normal orientation insert and precisely machined shell size 16 deliver consistent mechanical and electrical characteristics, supported by a -55°C to 125°C operating temperature range for superior versatility.
This connector's gold-plated contacts ensure minimum contact resistance for reliable signal and power transmission. Keyed designs prevent mismating, making it suitable for multi-connector systems or assemblies with closely packed cabling. The shell style is exclusive to BS9522 F0017, further guaranteeing compatibility with military and industrial standards.
Suitability for military, transportation, defense, and heavy-duty industrial uses is further enhanced by comprehensive international compliance: MIL-DTL-26482, Def Stan 59-35, and BS9522 FOO17. It is perfect for use in rugged environments that demand enduring high-quality connections, such as communications equipment, military vehicles, control panels, and automation systems.
The Amphenol 62GB Series is recognized for its environmental protection when mated, mechanical robustness, and availability of matching cable clamps and spin coupling backshells for additional strain relief and assembly customization. Installation notes recommend matching cable-mount plugs with chassis sockets and selecting cable clamps according to project needs.
This connector meets or exceeds expectations for Industrial Circular Connectors, offering performance, durability, and compatibility with leading industrial and defense-grade requirements. For further browsing of industrial connectors and advanced Amphenol products, explore the full EnvMart range.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Amphenol Limited 62GB-56T16-26PN has a voltage rating of 700V DC.
This connector operates within a temperature range of -55°C to 125°C.
It features 26 male contacts.
The connector uses solder termination for reliable wire connections.
It has an aluminium shell with zinc cobalt olive drab plating, providing corrosion resistance.
The 62GB-56T16-26PN utilizes a bayonet lock mating mechanism for secure connectivity.
It complies with the MIL-DTL-26482 military specification.
The shell size for this model is size 16.
The shell of this connector is olive in color.
Yes, it is designed for harsh environments with its wide temperature range and robust materials.
It is ideal for military, transportation, aerospace, and industrial automation environments.
The contacts are gold-plated, ensuring excellent conductivity and signal reliability.
