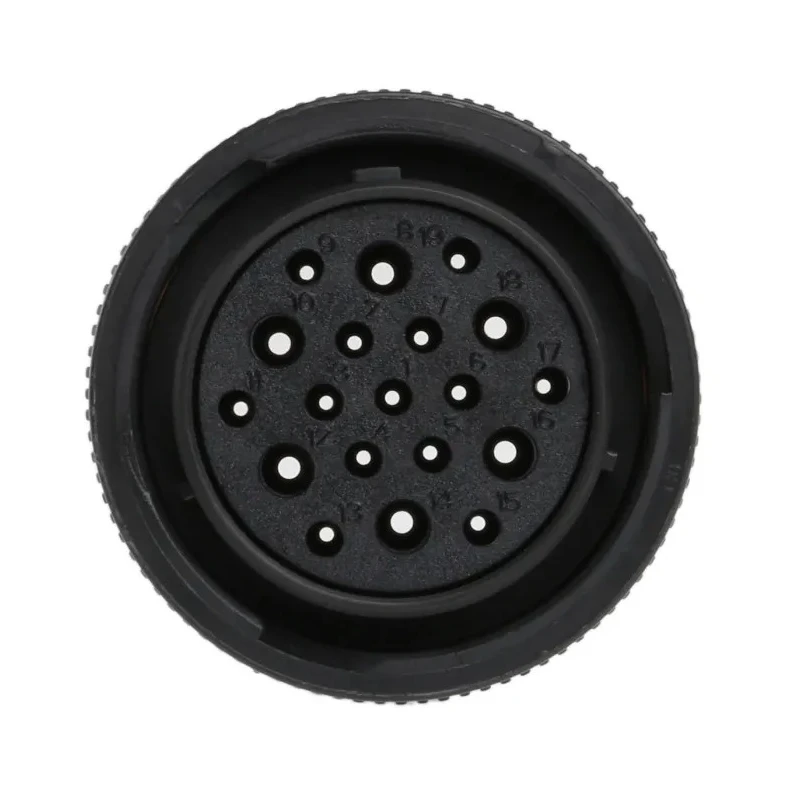

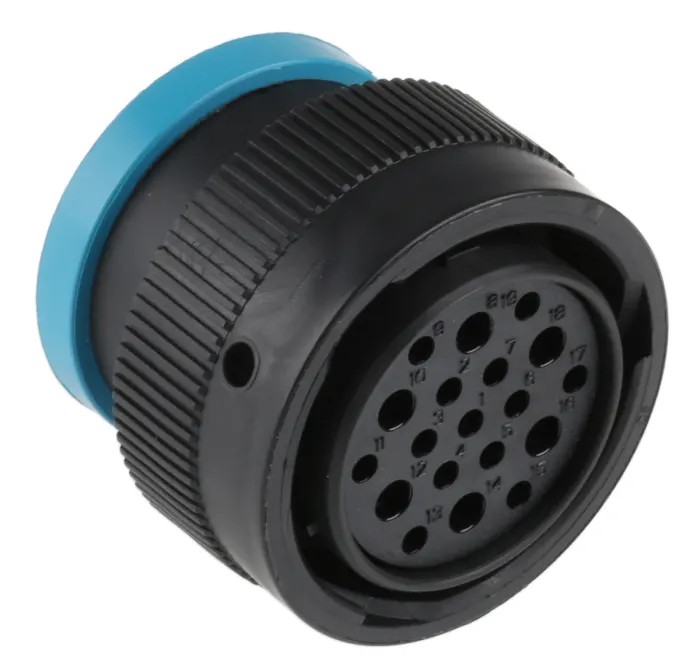

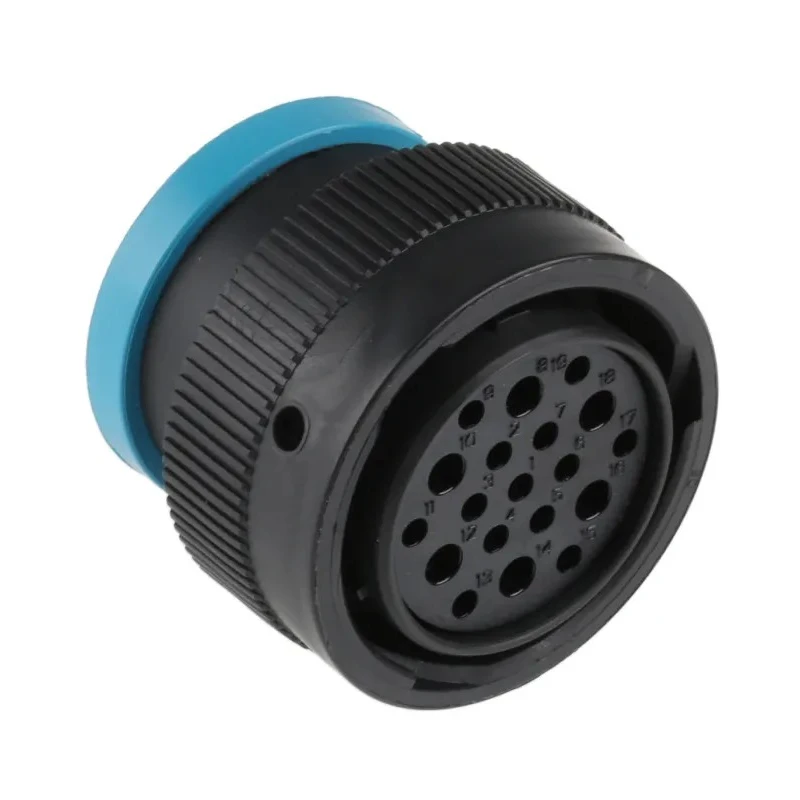

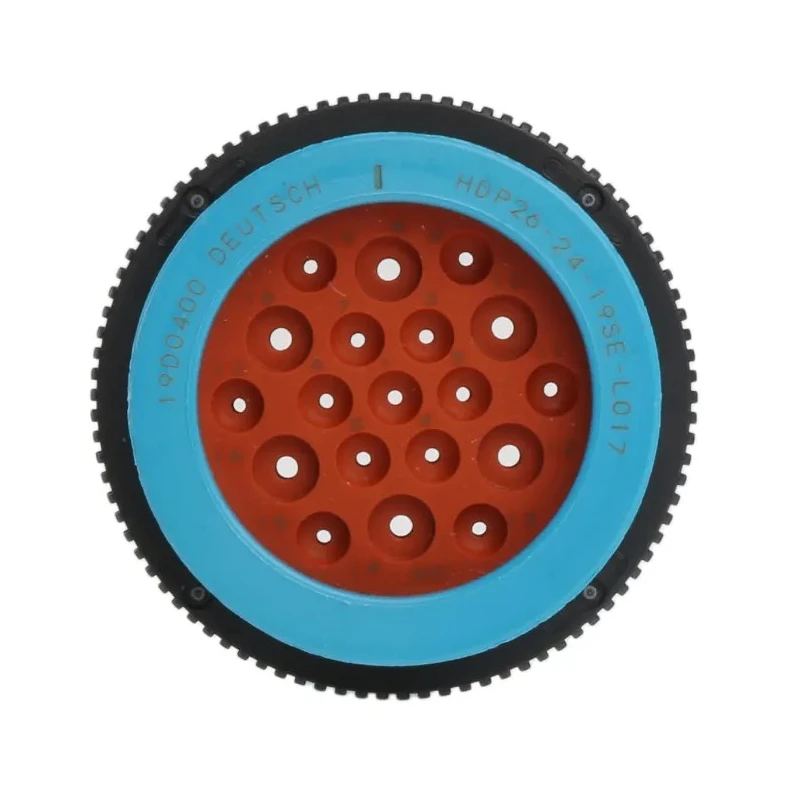

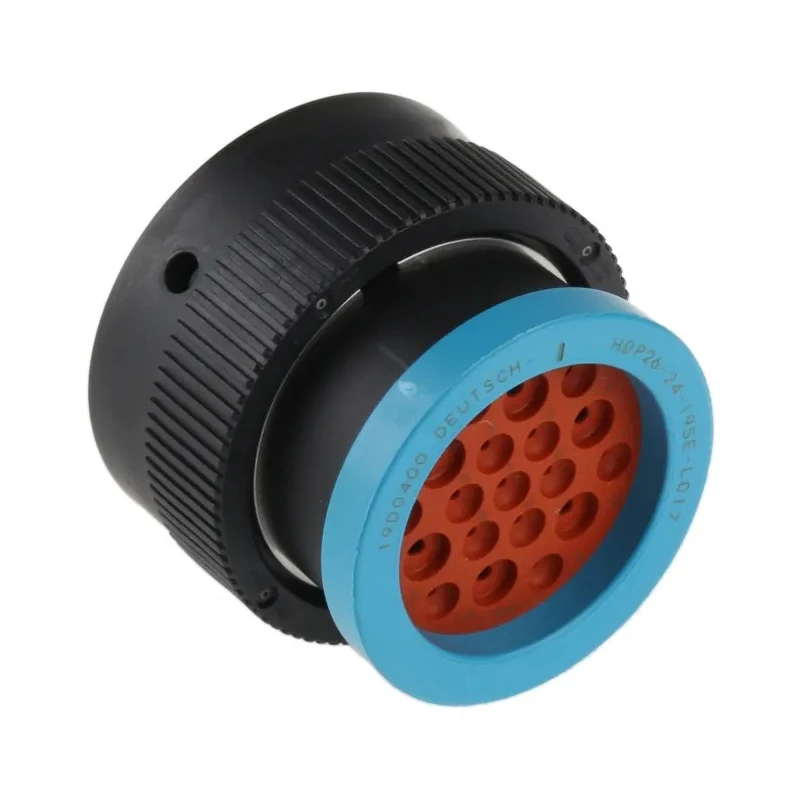

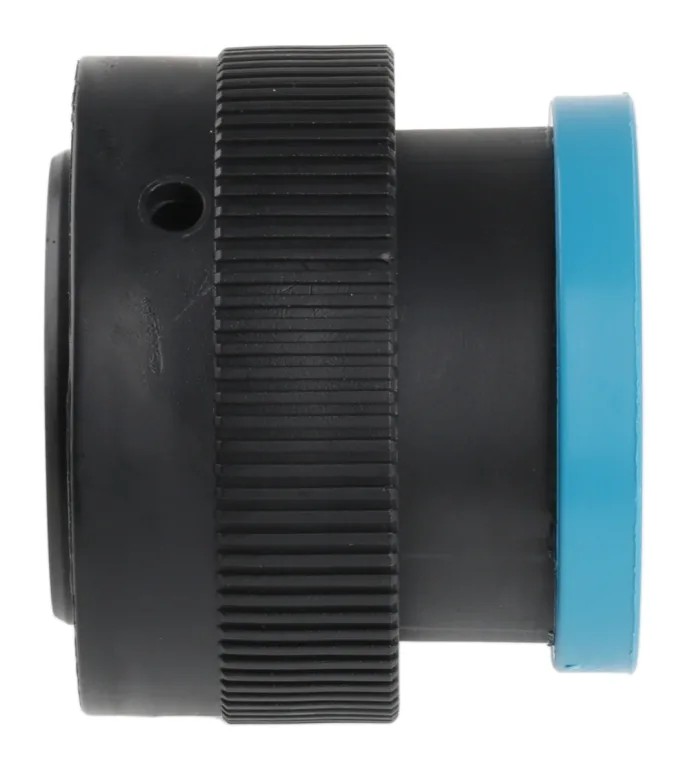

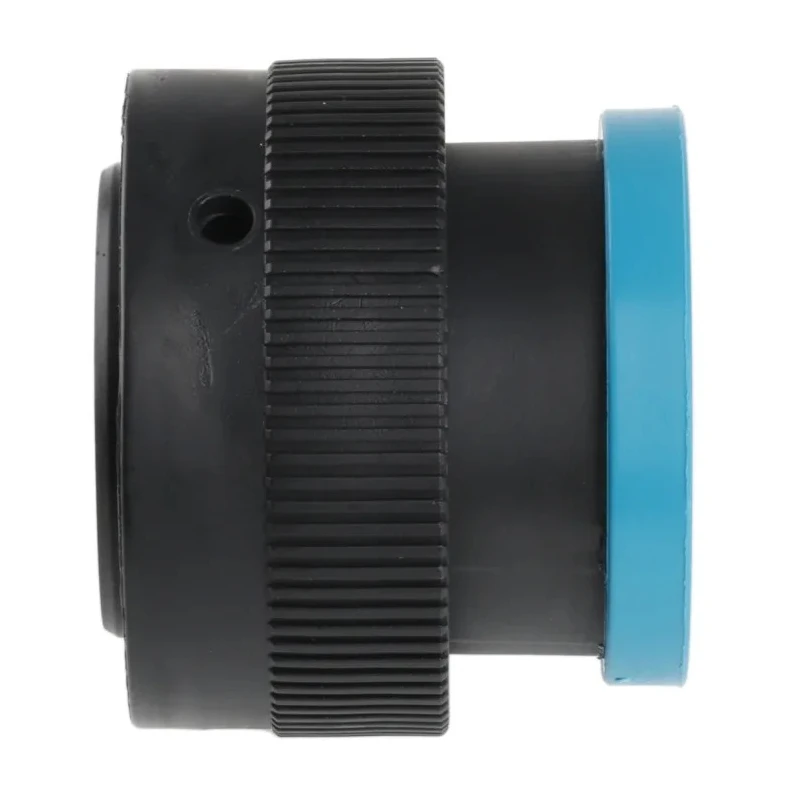

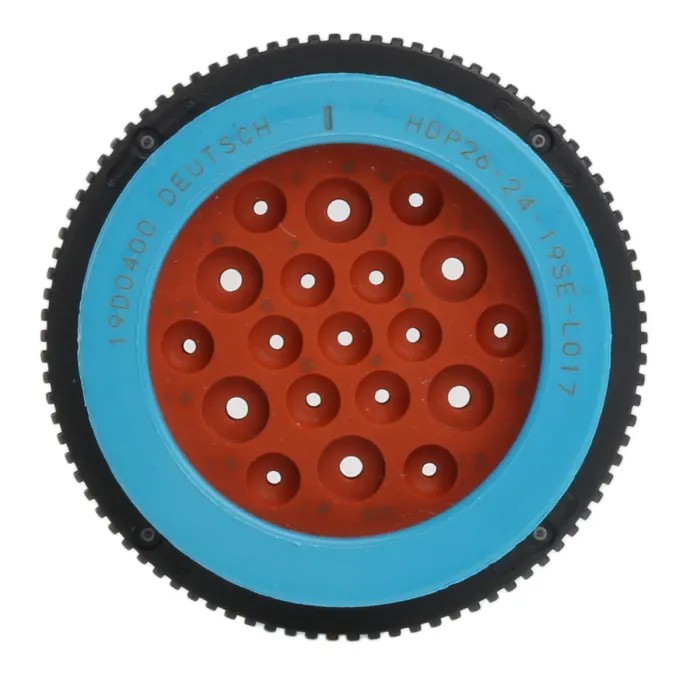

Deutsch Circular Connector, 19 Contacts, Cable Mount, 2.39 mm, Plug Female, IP67, Thermoplastic, 25A HDP26-24-19SE-L017
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Deutsch |
| Orientation | Straight |
| Current | 25A |
| Model | HDP26-24-19SE-L017 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | HD20 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 19 |
| Contact Plating | Nickel |

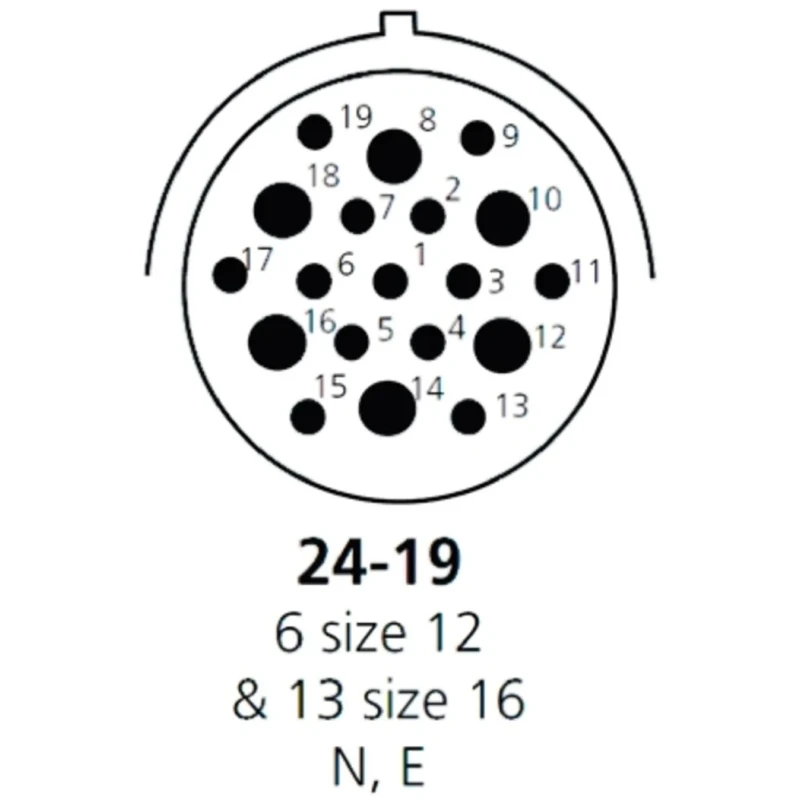

| Number of Contacts | 19 |
| Contact Gender | Female |
| Shell Size | 24 |
| Mating Type | Bayonet |
| Connector Size | 2.39 mm |
| Plug/Socket | Plug |
Key Features
- Provides reliable cable-to-cable connections with 19 contacts and bayonet mating.
- Rated IP67 for watertight and dustproof protection ideal for harsh conditions.
- Supports 25A current and up to 250V voltage for demanding power requirements.
- Plug configuration with female contacts and crimp termination for installation flexibility.
- Thermoplastic housing ensures durability and corrosion resistance, with nickel-plated copper contacts.
- Straight orientation, 2.39 mm connector size, and shell size 24 fit a wide range of applications.
- Operates effectively from -55°C to 125°C for broad environmental compatibility.
- HD20 Series offers vibration proofing, corrosion resistance, and minimum 100 mating cycles.
Product Description
The Deutsch HDP26-24-19SE-L017 is a robust industrial circular connector engineered to meet demanding applications requiring high reliability and protection. Featuring 19 contacts in a cable-mount plug configuration, this connector is designed to facilitate secure cable-to-cable connections across power and signal circuits in settings such as manufacturing plants, automation environments, and transportation systems.
Rated at IP67, the connector offers excellent protection against water, dust, and environmental contaminants, making it suitable for both indoor and outdoor use. Its thermoplastic housing provides structural strength, corrosion resistance, and longevity even under challenging operating conditions. The connector incorporates nickel-plated copper contacts for optimal conductivity and anti-corrosion protection.
The connector operates at up to 25A and 250V, accommodating significant power demands. Crimp termination and female contact gender ensure installation convenience and a reliable interface. The straight orientation, bayonet mating mechanism, and 2.39 mm connector size enable easy integration with existing cable assemblies, while shell size 24 fits standard industrial setups.
Designed for versatility, the HDP20 Series offers vibration proofing tested to 20g at 10 - 2000 Hz and corrosion resistance verified for up to 48 hours of salt spray exposure (MIL STD 1344). It supports a wide working temperature range from -55°C to 125°C and provides a minimum of 100 mating cycles, ensuring long-term performance under repeated use.
This connector is commonly used in machinery, automation, process control, automotive, heavy equipment, and electrical power distribution. Its multipole design and sealed construction make it a preferred choice in environments where reliability, safety, and ease of maintenance are paramount.
Explore the full range of Industrial Circular Connectors and related solutions by Deutsch and other leading brands at EnvMart Electronics & Electricals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 25A and a voltage rating of up to 250V.
It is rated IP67, providing protection against water and dust, making it suitable for harsh environmental conditions.
The housing is made of thermoplastic, while the contacts are nickel-plated copper, ensuring conductivity and corrosion resistance.
It operates effectively within a temperature range of -55°C to 125°C, accommodating various environmental conditions.
This connector features 19 contacts, configured in a female format for cable mounting.
It utilizes crimp termination, which allows for flexible and secure installation.
The connector size is 2.39 mm, and it has a shell size of 24, fitting standard industrial applications.
It employs a bayonet mating mechanism, which ensures a secure connection.
It is designed to provide a minimum of 100 mating cycles, ensuring long-term usability.
It is commonly used in machinery, automation, process control, automotive, heavy equipment, and electrical power distribution.
The orientation of this connector is straight, facilitating easy integration with existing setups.
This model is part of the HD20 Series, known for its vibration proofing and corrosion resistance features.
